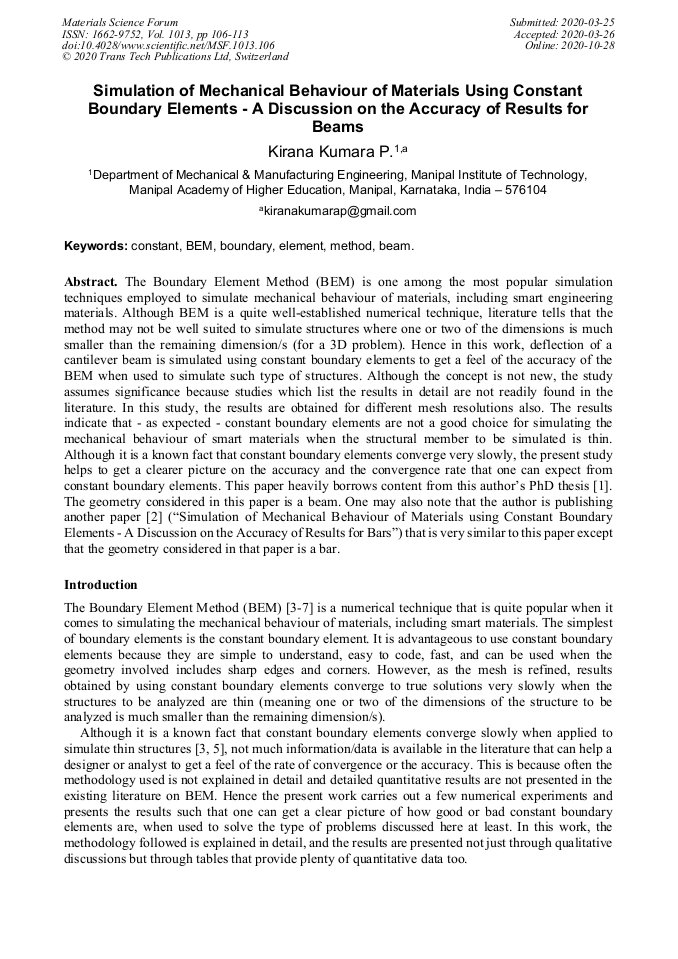

Simulation of Mechanical Behaviour of Materials Using Constant Boundary Elements - A Discussion on the Accuracy of Results for Beams

Abstract:

The Boundary Element Method (BEM) is one among the most popular simulation techniques employed to simulate mechanical behaviour of materials, including smart engineering materials. Although BEM is a quite well-established numerical technique, literature tells that the method may not be well suited to simulate structures where one or two of the dimensions is much smaller than the remaining dimension/s (for a 3D problem). Hence in this work, deflection of a cantilever beam is simulated using constant boundary elements to get a feel of the accuracy of the BEM when used to simulate such type of structures. Although the concept is not new, the study assumes significance because studies which list the results in detail are not readily found in the literature. In this study, the results are obtained for different mesh resolutions also. The results indicate that - as expected - constant boundary elements are not a good choice for simulating the mechanical behaviour of smart materials when the structural member to be simulated is thin. Although it is a known fact that constant boundary elements converge very slowly, the present study helps to get a clearer picture on the accuracy and the convergence rate that one can expect from constant boundary elements. This paper heavily borrows content from this author’s PhD thesis [1]. The geometry considered in this paper is a beam. One may also note that the author is publishing another paper [2] (“Simulation of Mechanical Behaviour of Materials using Constant Boundary Elements - A Discussion on the Accuracy of Results for Bars”) that is very similar to this paper except that the geometry considered in that paper is a bar.

• Periodical: Materials Science Forum (Volume 1013)
• Pages: 106-113
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1013.106
• Online since: October 2020
• Authors: P. Kirana Kumara*
• Keywords: Beam, BEM, Boundary, Constant, Element, Method

References

[1] Kirana Kumara P, Studies on the Viability of the Boundary Element Method for the Real-Time Simulation of Biological Organs, PhD Thesis, Centre for Product Design & Manufacturing, Indian Institute of Science, Bangalore, India, (2016).

[2] Kirana Kumara P, Simulation of Mechanical Behaviour of Materials using Constant Boundary Elements - A Discussion on the Accuracy of Results for Bars, to be published in this journal, (2020).

DOI: 10.4028/www.scientific.net/msf.1013.99

[3] Ang W. T., A Beginner's Course in Boundary Element Methods, Universal Publishers, Boca Raton, USA, (2007).

[4] Ang K.C., Introducing the Boundary Element Method with MATLAB, International Journal of Mathematical Education in Science and Technology, Vol. 39, No. 4, pp.505-519, (2008).

DOI: 10.1080/00207390701722676

[5] Gernot Beer, Ian Moffat Smith, Christian Duenser, The Boundary Element Method with Programming: For Engineers and Scientists, Springer, (2008).

DOI: 10.1007/978-3-211-71576-5

[6] Brebbia C. A., The Boundary Element Method for Engineers, London/New York: Pentech Press/Halstead Press, (1978).

[7] Brebbia C. A., Dominguez J., Boundary Elements: An Introductory Course, Second Edition, WIT Press.

[8] Kirana Kumara P, A MATLAB Code for Three Dimensional Linear Elastostatics using Constant Boundary Elements, International Journal of Advances in Engineering Sciences (IJAES), 2 (3). pp.9-20, (2012).

[9] Kirana Kumara P, Codes for solving three dimensional linear elastostatic problems using constant boundary elements while ignoring body forces, 2014, Available from: http://eprints.iisc.ernet.in/48088/ (accessed January 18, 2020).

[10] Warren C. Young, Richard G. Budynas, Roark's Formulas for Stress and Strain, Seventh Edition, McGraw-Hill, (2002).
