The Multiphase Micro- and Nanostructures of 0.2 and 0.4 C Direct-Quenched and Partitioned Steels

Article Preview

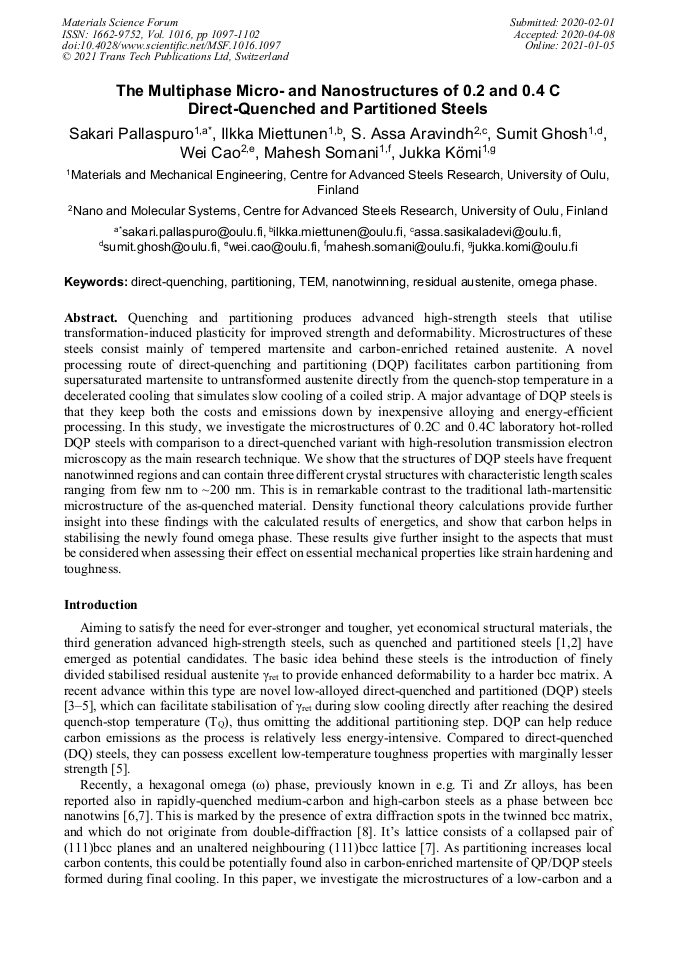

Abstract:

Quenching and partitioning produces advanced high-strength steels that utilise transformation-induced plasticity for improved strength and deformability. Microstructures of these steels consist mainly of tempered martensite and carbon-enriched retained austenite. A novel processing route of direct-quenching and partitioning (DQP) facilitates carbon partitioning from supersaturated martensite to untransformed austenite directly from the quench-stop temperature in a decelerated cooling that simulates slow cooling of a coiled strip. A major advantage of DQP steels is that they keep both the costs and emissions down by inexpensive alloying and energy-efficient processing. In this study, we investigate the microstructures of 0.2C and 0.4C laboratory hot-rolled DQP steels with comparison to a direct-quenched variant with high-resolution transmission electron microscopy as the main research technique. We show that the structures of DQP steels have frequent nanotwinned regions and can contain three different crystal structures with characteristic length scales ranging from few nm to ~200 nm. This is in remarkable contrast to the traditional lath-martensitic microstructure of the as-quenched material. Density functional theory calculations provide further insight into these findings with the calculated results of energetics, and show that carbon helps in stabilising the newly found omega phase. These results give further insight to the aspects that must be considered when assessing their effect on essential mechanical properties like strain hardening and toughness.

You might also be interested in these eBooks

Info:

Periodical:

Materials Science Forum (Volume 1016)

Pages:

1097-1102

Citation:

Online since:

January 2021

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2021 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] J. Speer, D.K. Matlock, B.C. De Cooman, J.G. Schroth, Carbon partitioning into austenite after martensite transformation, Acta Mater. 51 (2003) 2611–2622.

DOI: 10.1016/s1359-6454(03)00059-4

Google Scholar

[2] D.K. Matlock, V.E. Bräutigam, J.G. Speer, Application of the Quenching and Partitioning (Q&P) Process to a Medium-Carbon, High-Si Microalloyed Bar Steel, Mater. Sci. Forum. 426–432 (2003) 1089–1094.

DOI: 10.4028/www.scientific.net/msf.426-432.1089

Google Scholar

[3] M.C. Somani, D.A. Porter, L. Pentti Karjalainen, D.K. Misra, Evaluation of DQ&P Processing Route for the Development of Ultra-high Strength Tough Ductile Steels, Int. J. M Etallurgical Eng. 2 (2013) 154–160.

DOI: 10.4028/www.scientific.net/msf.783-786.1009

Google Scholar

[4] M.C. Somani, D.A. Porter, J.I. Kömi, L.P. Karjalainen, D.K. Misra, Tough Ductile Ultra High Strength Steels Through Direct Quenching and Partitioning—An Update, in: Proc. Int. Conf. Martensitic Transform., The Minerals, Metals & Materials Society, Chicago, 2018: p.129–134.

DOI: 10.1007/978-3-319-76968-4_20

Google Scholar

[5] P. Kantanen, M. Somani, A. Kaijalainen, O. Haiko, D. Porter, J. Kömi, P. Kantanen, M. Somani, A. Kaijalainen, O. Haiko, D. Porter, J. Kömi, Microstructural Characterization and Mechanical Properties of Direct Quenched and Partitioned High-Aluminum and High-Silicon Steels, Metals (Basel). 9 (2019) 256.

DOI: 10.3390/met9020256

Google Scholar

[6] D.H. Ping, W.T. Geng, A popular metastable omega phase in body-centered cubic steels, Mater. Chem. Phys. 139 (2013) 830–835.

DOI: 10.1016/j.matchemphys.2013.02.040

Google Scholar

[7] T. Liu, D. Zhang, Q. Liu, Y. Zheng, Y. Su, X. Zhao, J. Yin, M. Song, D. Ping, A new nanoscale metastable iron phase in carbon steels, Sci. Rep. 5 (2015) 15331.

DOI: 10.1038/srep15331

Google Scholar

[8] D. Ping, A. Singh, S. Guo, T. Ohmura, M. Ohnuma, T. Abe, H. Onodera, A Simple Method for Observing ω-Fe Electron Diffraction Spots from <112>α-Fe Directions of Quenched Fe–C Twinned Martensite, ISIJ Int. Int. 58 (2018) 159–164. https://www.jstage.jst.go.jp/article/ isijinternational/58/1/58_ISIJINT-2017-270/_article (accessed January 29, 2020).

DOI: 10.2355/isijinternational.isijint-2017-270

Google Scholar

[9] C. Cayron, M. Den Hertog, L. Latu-Romain, C. Mouchet, C. Secouard, J.-L. Rouviere, E. Rouviere, J.-P. Simonato, Odd electron diffraction patterns in silicon nanowires and silicon thin films explained by microtwins and nanotwins, J. Appl. Cryst. 42 (2009) 242–252.

DOI: 10.1107/s0021889808042131

Google Scholar
