Microstructure Development in the Bonding Zone of Explosively Welded Ti and Cu Sheets

Abstract:

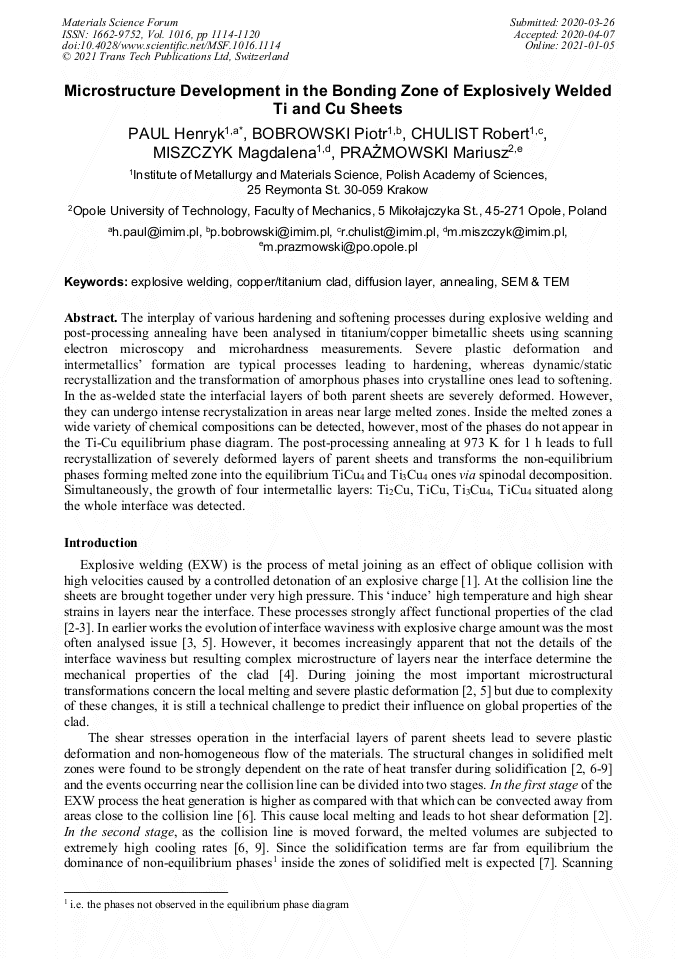

The interplay of various hardening and softening processes during explosive welding and post-processing annealing have been analysed in titanium/copper bimetallic sheets using scanning electron microscopy and microhardness measurements. Severe plastic deformation and intermetallics’ formation are typical processes leading to hardening, whereas dynamic/static recrystallization and the transformation of amorphous phases into crystalline ones lead to softening. In the as-welded state the interfacial layers of both parent sheets are severely deformed. However, they can undergo intense recrystalization in areas near large melted zones. Inside the melted zones a wide variety of chemical compositions can be detected, however, most of the phases do not appear in the Ti-Cu equilibrium phase diagram. The post-processing annealing at 973 K for 1 h leads to full recrystallization of severely deformed layers of parent sheets and transforms the non-equilibrium phases forming melted zone into the equilibrium TiCu₄ and Ti₃Cu₄ ones via spinodal decomposition. Simultaneously, the growth of four intermetallic layers: Ti₂Cu, TiCu, Ti₃Cu₄, TiCu₄ situated along the whole interface was detected.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 1114-1120
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.1114
• Online since: January 2021
• Authors: Henryk Paul*, Piotr Bobrowski, Robert Chulist, Magdalena M. Miszczyk, M. Prażmowski
• Keywords: Annealing, Copper/Titanium Clad, Diffusion Layer, Explosive Welding, SEM & TEM
