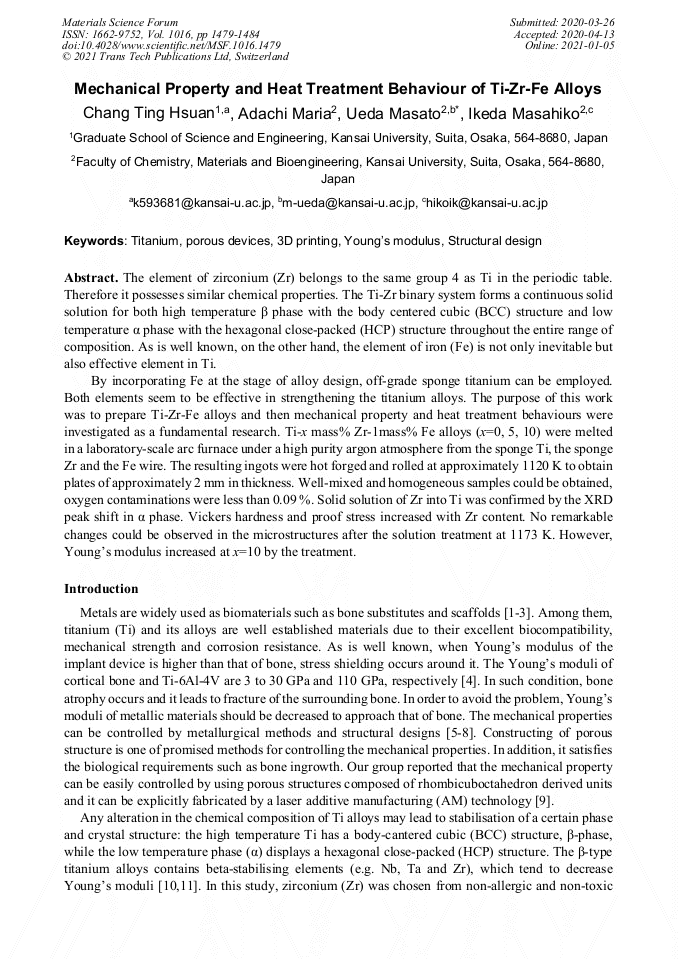

Mechanical Property and Heat Treatment Behaviour of Ti-Zr-Fe Alloys

Abstract:

The element of zirconium (Zr) belongs to the same group 4 as Ti in the periodic table. Therefore it possesses similar chemical properties. The Ti-Zr binary system forms a continuous solid solution for both high temperature β phase with the body centered cubic (BCC) structure and low temperature α phase with the hexagonal close-packed (HCP) structure throughout the entire range of composition. As is well known, on the other hand, the element of iron (Fe) is not only inevitable but also effective element in Ti.By incorporating Fe at the stage of alloy design, off-grade sponge titanium can be employed. Both elements seem to be effective in strengthening the titanium alloys. The purpose of this work was to prepare Ti-Zr-Fe alloys and then mechanical property and heat treatment behaviours were investigated as a fundamental research. Ti-x mass% Zr-1mass% Fe alloys (x=0, 5, 10) were melted in a laboratory-scale arc furnace under a high purity argon atmosphere from the sponge Ti, the sponge Zr and the Fe wire. The resulting ingots were hot forged and rolled at approximately 1120 K to obtain plates of approximately 2 mm in thickness. Well-mixed and homogeneous samples could be obtained, oxygen contaminations were less than 0.09 %. Solid solution of Zr into Ti was confirmed by the XRD peak shift in α phase. Vickers hardness and proof stress increased with Zr content. No remarkable changes could be observed in the microstructures after the solution treatment at 1173 K. However, Young’s modulus increased at x=10 by the treatment.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 1479-1484
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.1479
• Online since: January 2021
• Authors: Ting Hsuan Chang, Maria Adachi, Masato Ueda*, Masahiko Ikeda
• Keywords: 3D Printing, Porous Devices, Structural Design, Titanium, Young’s Modulus

References

[1] M. Niinomi, M.A-H. Gepreel, Biocompatibility of Ti-alloys for long term implantation, J. Mech. Behav. Biomed. Mater. 20 (2013) 407-415.

DOI: 10.1016/j.jmbbm.2012.11.014

[2] M. Long, H. Rack, Titanium alloys in total joint replacement - a materials science perspective, Biomaterials. 19 (1998) 1621-1639.

DOI: 10.1016/s0142-9612(97)00146-4

[3] M. Niinomi, Recent research and development in titanium alloys for biomedical applications and healthcare goods, Sci. Technol. Adv. Mater. 4 (2003) 445-454.

[4] M. Niinomi, M. Nakai, J. Hieda, Development of new metallic alloys for biomedical applications, Acta Biomater. 11 (2012) 3888-3903.

DOI: 10.1016/j.actbio.2012.06.037

[5] M. Niinomi, M. Nakai, Titanium-based biomaterials for preventing stress shielding between implant devices and bone, Int. J. Biomaterials. 11 (2011) 1-10.

DOI: 10.1155/2011/836587

[6] Y. Zhang, L. Wu, X. Guo, S. Kane, Y. Deng, Y-G. Jung, J-H. Lee, J. Zhan, Additive manufacturing of metallic materials: a review, J. Mater. Eng. Perform. 27 (2018) 1-13.

DOI: 10.1007/s11665-017-2747-y

[7] C. Yan, L. Hao, A. Hussein, P. Young, Ti–6Al–4V triply periodic minimal surface structures for bone implants fabricated via selective laser melting, J. Mech. Behav. Biomed. Mater. 51 (2015) 61-73.

DOI: 10.1016/j.jmbbm.2015.06.024

[8] J. Wieding, A. Wolf, R. Bader, Numerical optimization of open-porous bone scaffold structures to match the elastic properties of human cortical bone, J. Mech. Behav. Biomed. Mater. 37 (2014) 56-68.

DOI: 10.1016/j.jmbbm.2014.05.002

[9] M. Ueda, M. Ikeda, S. Mori, K. Doi, H. Kitagaki, S. Terauchi, Mechanical properties of additively manufactured porous titanium with sub-millimetre structural units, Mater. Trans. 60 (2019) 1792-1798.

DOI: 10.2320/matertrans.me201916

[10] I. Milošev, G. Žerjav, J.M.C. Moreno, M. Popa, Electrochemical properties chemical composition and thickness of passive film formed on novel Ti-20Nb-10Zr-5Ta alloy, Electrochim Acta. 99 (2013) 176-189.

DOI: 10.1016/j.electacta.2013.03.086

[11] C. Brett, I. Muresan, The influence of artificial body fluids on metallic corrosion. Key. Eng. Mater. 230 (2002) 459-462.

DOI: 10.4028/www.scientific.net/kem.230-232.459

[12] T. Shiraishi, K. Yubuta, T. Shishido, N. Shinozaki, Elastic properties of as-solidified Ti-Zr binary alloys for biomedical applications, Mater. Trans. 57 (2016) 1986-1992.

DOI: 10.2320/matertrans.mi201501

[13] A. Kuroda, K. Nagashima, Y. Imamura, New developed Ti-10Zr alloy for consumer goods application, The Sumitomo Search. 60 (1998) 1709-1800.

[14] T. Shiraishi, K. Yubuta, T. Shishido, N. Shinozaki, Evaluations of mechanical properties of electrodeposited nickel film by using micro-testing method, Mater. Trans. 57 (2016) 1979-1984.

DOI: 10.2320/matertrans.mg201622
