Effect of Chemical Composition on Grain Refinement of AlxCoCrFeNi High Entropy Alloys with NiAl Grain Boundary Precipitates

Hiroyuki Y. Yasuda; Hiroyuki Miyamoto; Takuya Inagaki; Ken Cho; Takeshi Nagase

doi:10.4028/www.scientific.net/MSF.1016.1690

Paper Titles

The Effect of Aging Conditions on the Stress Relaxation Behavior of 17-7PH Stainless Steel
p.1664

First-Principles Study of Epoxy Resin Adhesion to Tin Oxide Surface
p.1670

Formation of Cemented Tungsten Carbide Layer with Compositional Gradient Processed by Directed Energy Deposition
p.1676

The Impact of Interface Characteristics on Mechanical Performance of a Hot-Forged Cu/Ti-Coated-Diamond Composite
p.1682

Effect of Chemical Composition on Grain Refinement of Al_xCoCrFeNi High Entropy Alloys with NiAl Grain Boundary Precipitates
p.1690

Improvement of Mechanical Properties of Laminated Composites by Using Cryogenic Roll Bonding
p.1696

Development of Cu Coating on Ceramic Substrates by Low Pressure Cold Spray and its Deposition Mechanism Analysis
p.1703

Thermal Degradation Behavior of Hydrogen Permeability of Pd-Coated V-Alloy Membrane for Hydrogen Separation and Purification
p.1710

Analysis of Different Thermal Conductivity Measurements for Al-Si Casting Alloys
p.1715

HomeMaterials Science ForumMaterials Science Forum Vol. 1016Effect of Chemical Composition on Grain Refinement...

Effect of Chemical Composition on Grain Refinement of Al_xCoCrFeNi High Entropy Alloys with NiAl Grain Boundary Precipitates

Abstract:

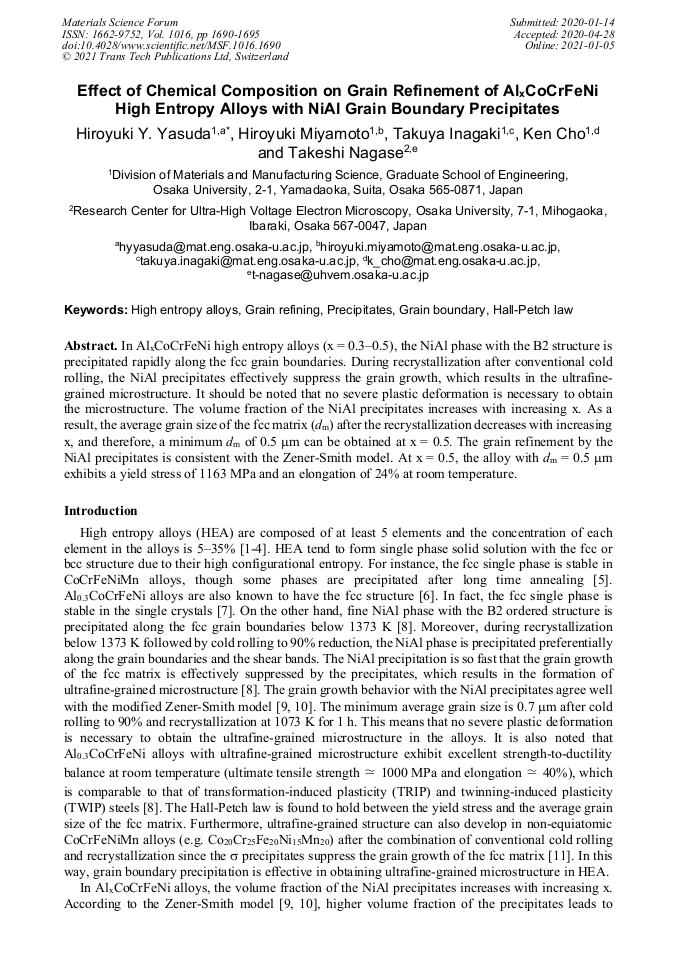

In Al_xCoCrFeNi high entropy alloys (x = 0.3–0.5), the NiAl phase with the B2 structure is precipitated rapidly along the fcc grain boundaries. During recrystallization after conventional cold rolling, the NiAl precipitates effectively suppress the grain growth, which results in the ultrafine-grained microstructure. It should be noted that no severe plastic deformation is necessary to obtain the microstructure. The volume fraction of the NiAl precipitates increases with increasing x. As a result, the average grain size of the fcc matrix (d_m) after the recrystallization decreases with increasing x, and therefore, a minimum d_m of 0.5 μm can be obtained at x = 0.5. The grain refinement by the NiAl precipitates is consistent with the Zener-Smith model. At x = 0.5, the alloy with d_m = 0.5 μm exhibits a yield stress of 1163 MPa and an elongation of 24% at room temperature.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1016)

Pages:

1690-1695

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1016.1690

Citation:

Cite this paper

Online since:

January 2021

Authors:

Hiroyuki Y. Yasuda*, Hiroyuki Miyamoto, Takuya Inagaki, Ken Cho, Takeshi Nagase

Keywords:

Grain Boundary, Grain Refining, Hall-Petch Law, High Entropy Alloys, Precipitates

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] B. Cantor, I. T. H. Chang, P. Knight and A. J. B. Vincent, Mater. Sci. Eng. A 375-377 (2004) 213-218.

Google Scholar

[2] B. S. Murty, J-W. Yeh, S. Ranganathan, High-Entropy Alloys, Elsevier, Amsterdam, (2014).

Google Scholar

[3] M. C. Gao, J-W. Yeh, P. K. Liaw, Y. Zhang (eds.), High-Entropy Alloys: Fundamentals and Applications, Springer, Cham, (2016).

Google Scholar

[4] Y. Zhang, T. T. Zuo, Z. Tang, M. C. Gao, K. A. Dahmen, P. K. Liaw and Z. P. Lu, Prog. Mater. Sci. 61 (2014) 1-93.

Google Scholar

[5] F. Otto, A. Dlouhý, K.G. Pradeep, M. Kuběnová, D. Raabe, G. Eggeler and E.P. George, Acta Mater. 112 (2016) 40-52.

DOI: 10.1016/j.actamat.2016.04.005

Google Scholar

[6] Y-F. Kao, T-J. Chen, S-K. Chen and J-W. Yeh, J. Alloys Compd. 488 (2009) 57-64.

Google Scholar

[7] H. Y. Yasuda, K. Shigeno and T. Nagase, Scripta Mater. 108 (2015) 80-83.

Google Scholar

[8] H. Y. Yasuda, H. Miyamoto, K. Cho and T. Nagase, Mater. Lett. 199 (2017) 120-123.

Google Scholar

[9] C. Zener, quoted by C. S. Smith, Trans. Met. Soc. AIME 175 (1948) 15-51.

Google Scholar

[10] T. Nishizawa, I. Ohnuma and K. Ishida, Mater. Trans. JIM 38 (1997) 950-956.

Google Scholar

[11] K. Cho, Y. Fujioka, T. Nagase and H. Y. Yasuda, Mater. Sci. Eng. A. 735 (2018) 191-200.

Google Scholar

[12] H. Y. Yasuda, T. Sakata and Y. Umakoshi, Acta Mater. 47 (1999) 1923-1933.

Google Scholar

[13] M. Ueda, H.Y. Yasuda and Y. Umakoshi, Acta Mater. 49 (2001) 3421-3432.

Google Scholar

[14] M. Ueda, H.Y. Yasuda and Y. Umakoshi, Acta Mater. 49 (2001) 4251-4258.

Google Scholar

[15] M. Ueda, H.Y. Yasuda and Y. Umakoshi, Acta Mater. 51 (2003) 1007-1017.

Google Scholar

[16] Z. Sun, G. Song, T.A. Sisneros, B. Clausen, C. Pu, L. Li, Y. Gao and P.K. Liaw, Sci. Rep. 6 (2016) 1-9.

Google Scholar
