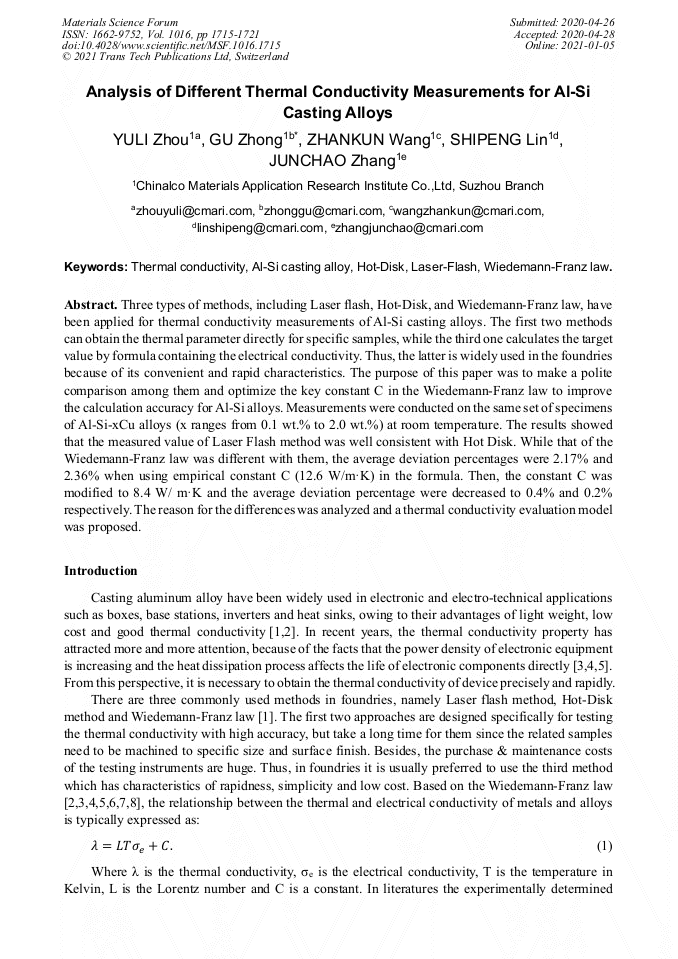

Analysis of Different Thermal Conductivity Measurements for Al-Si Casting Alloys

Abstract:

Three types of methods, including Laser flash, Hot-Disk, and Wiedemann-Franz law, have been applied for thermal conductivity measurements of Al-Si casting alloys. The first two methods can obtain the thermal parameter directly for specific samples, while the third one calculates the target value by formula containing the electrical conductivity. Thus, the latter is widely used in the foundries because of its convenient and rapid characteristics. The purpose of this paper was to make a polite comparison among them and optimize the key constant C in the Wiedemann-Franz law to improve the calculation accuracy for Al-Si alloys. Measurements were conducted on the same set of specimens of Al-Si-xCu alloys (x ranges from 0.1 wt.% to 2.0 wt.%) at room temperature. The results showed that the measured value of Laser Flash method was well consistent with Hot Disk. While that of the Wiedemann-Franz law was different with them, the average deviation percentages were 2.17% and 2.36% when using empirical constant C (12.6 W/m·K) in the formula. Then, the constant C was modified to 8.4 W/ m·K and the average deviation percentage were decreased to 0.4% and 0.2% respectively. The reason for the differences was analyzed and a thermal conductivity evaluation model was proposed.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 1715-1721
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.1715
• Online since: January 2021
• Authors: Yu Li Zhou*, Gu Zhong, Zhan Kun Wang, Shi Peng Lin, Jun Chao Zhang
• Keywords: Al-Si Casting Alloy, Hot-Disk, Laser-Flash, Thermal Conductivity, Wiedemann-Franz Law

References

[1] Y.H. Cho, H.W. Kim, J.M. Lee, et al. A new approach to the design of a low Si-added Al-Si casting alloy for optimizing thermal conductivity and fluidity, Journal of Materials Science, 50 (2015) 7271-7281.

DOI: 10.1007/s10853-015-9282-8

[2] P. Ólafsson, R. Sandström, Calculations of electrical resistivity for Al-Cu and Al-Mg-Si alloys, Materials Science and Technology, 17(2001) 655-661.

DOI: 10.1179/026708301101510528

[3] J.K. Chen, H.Y. Hung, C.F. Wang, et al. Thermal and electrical conductivity in Al-Si/Cu/Fe/Mg binary and ternary Al alloys, Journal of Materials Science, 50(2015) 5630-5639.

DOI: 10.1007/s10853-015-9115-9

[4] P. Ólafsson, R. Sandström, Å.Karlsson, Comparison of experimental, calculated and observed values for electrical and thermal conductivity of aluminum alloys, Journal of Materials Science, 32(1997) 4383-4390.

[5] F. Stadler, H. Antrekowitsch, W. Fragner, et al. The effect of main alloying elements on the physical properties of Al-Si foundry alloys, Materials Science & Engineering A, 560(2013) 481-491.

DOI: 10.1016/j.msea.2012.09.093

[6] J.K. Chen, H.Y. Hung, C.F. Wang, et al. Effects of casting and heat treatment processes on the thermal conductivity of an Al-Si-Cu-Fe-Zn alloy, International Journal of Heat and Mass Transfer, 105(2017) 189-195.

DOI: 10.1016/j.ijheatmasstransfer.2016.09.090

[7] R.N. Lumley, N. Deeva, R. Larsen, et al. The role of alloy composition and T7 heat treatment in enhancing thermal conductivity of Aluminum high pressure diecastings, Metallurgical and Materials Transactions A, 44A(2013) 1074-1086.

DOI: 10.1007/s11661-012-1443-7

[8] R.Brandt, G.Neuer, Electrical resistivity and Thermal conductivity of pure aluminum and aluminum alloys up to and above the melting temperature, International Journal of Thermophysics, 28(2007) 1429-1446.

DOI: 10.1007/s10765-006-0144-0

[9] Adam L. Woodcraft, Predicting the thermal conductivity of aluminum alloys in the cryogenic to room temperature range, Cryogenics, 45(2005) 421-431.

DOI: 10.1016/j.cryogenics.2005.02.003

[10] J.B. Henderson, F.Giblin, J.Blumm,et al. SRM1460 series as a thermal diffusivity standard for laser flash instruments, The thirteenth symposium on thermophysical properties, Colorado, (1997).

[11] C.W. Kim, J.I. Cho, S.W. Choi, et al. The effect of alloying elements on thermal conductivity and casting characteristic in high pressure die casting of aluminum alloy, 13th International Conference on Aluminum Alloys(ICAA13), Pittsburgh, (2012).

DOI: 10.1002/9781118495292.ch37

[12] Y. He, Rapid thermal conductivity measurement with a hot disk sensor, Thermochimica acta, 436(2005) 122-129.

DOI: 10.1016/j.tca.2005.06.026

[13] V. Rauta, C. Cingi, J. Orkas, Effect of annealing and metallurgical treatments on thermal conductivity of aluminum alloys, International Journal of Metalcasting, 10(2016) 156-171.

DOI: 10.1007/s40962-015-0017-z

[14] F. Völklein, H. Reith, T. W. Cornelius, et al. The experimental investigation of thermal conductivity and the Wiedemann-Franz law for single metallic nanowires, Nanotechnology, 20(2009) 235706.

DOI: 10.1088/0957-4484/20/32/325706

[15] S.I. Bakhtiyarov, R.A. Overfelt, S.G. Teodorescu, Electrical and thermal conductivity of A319 and A356 aluminum alloys, Journal of Materials Science, 36(2001) 4643-4648.

DOI: 10.1023/a:1017946130966

[16] V. Rauta, C. Cingi, J. Orkas, Effect of annealing and metallurgical treatments on thermal conductivity of aluminum alloys, International Journal of Metalcasting, 10(2016) 157-171.

DOI: 10.1007/s40962-015-0017-z
