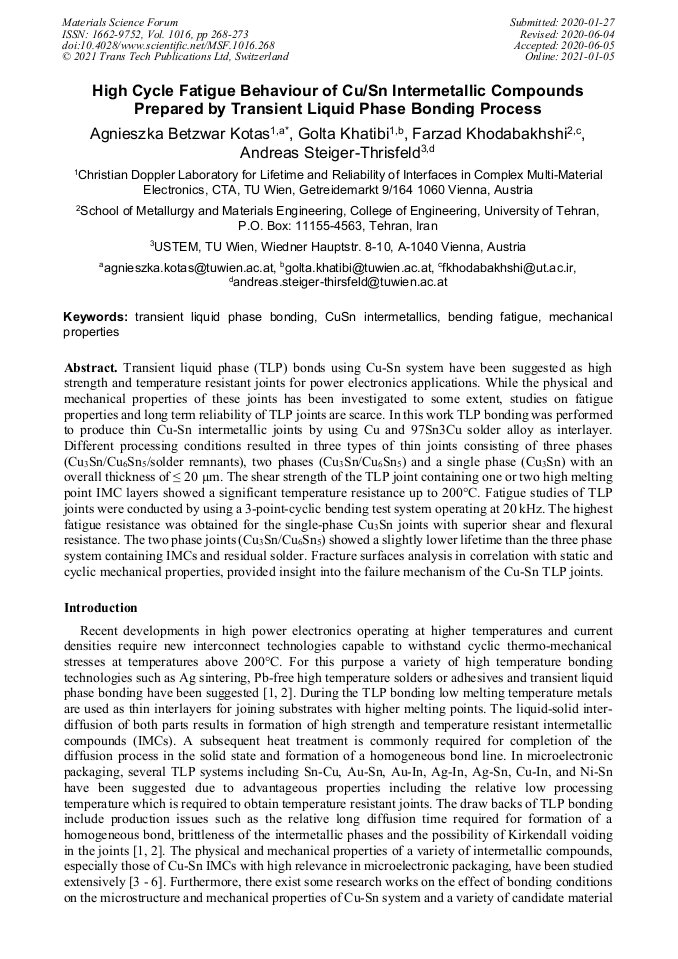

High Cycle Fatigue Behaviour of Cu/Sn Intermetallic Compounds Prepared by Transient Liquid Phase Bonding Process

Abstract:

Transient liquid phase (TLP) bonds using Cu-Sn system have been suggested as high strength and temperature resistant joints for power electronics applications. While the physical and mechanical properties of these joints has been investigated to some extent, studies on fatigue properties and long term reliability of TLP joints are scarce. In this work TLP bonding was performed to produce thin Cu-Sn intermetallic joints by using Cu and 97Sn3Cu solder alloy as interlayer. Different processing conditions resulted in three types of thin joints consisting of three phases (Cu₃Sn/Cu₆Sn₅/solder remnants), two phases (Cu₃Sn/Cu₆Sn₅) and a single phase (Cu₃Sn) with an overall thickness of ≤ 20 μm. The shear strength of the TLP joint containing one or two high melting point IMC layers showed a significant temperature resistance up to 200°C. Fatigue studies of TLP joints were conducted by using a 3-point-cyclic bending test system operating at 20 kHz. The highest fatigue resistance was obtained for the single-phase Cu₃Sn joints with superior shear and flexural resistance. The two phase joints (Cu₃Sn/Cu₆Sn₅) showed a slightly lower lifetime than the three phase system containing IMCs and residual solder. Fracture surfaces analysis in correlation with static and cyclic mechanical properties, provided insight into the failure mechanism of the Cu-Sn TLP joints.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 268-273
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.268
• Online since: January 2021
• Authors: Agnieszka Betzwar Kotas*, Golta Khatibi, Farzad Khodabakhshi, Andreas Steiger-Thrisfeld
• Keywords: Bending Fatigue, CuSn Intermetallics, Mechanical Properties, Transient Liquid Phase Bonding

References

[1] Kim S. Siow, Die-Attach Materials for High Temperature Applications in Microelectronics Packaging- Materials, Processes, Equipment, and Reliability, Springer Int. Publishing (2019).

DOI: 10.1007/978-3-319-99256-3

[2] O. Mokhtari, A review: Formation of voids in solder joint during the transient liquid phase bonding process - Causes and solutions, Microelectron. Reliab. 98 (2019) 95–105.

DOI: 10.1016/j.microrel.2019.04.024

[3] G. Gosh, Elastic properties, hardness, and indentation fracture toughness of intermetallics relevant to electronic packaging, J. Mater. Res. 19 (2004) 1439–1454.

DOI: 10.1557/jmr.2004.0193

[4] R. J. Fields and S. R. Low III, Physical and mechanical properties of intermetallic compounds found in solder joints, Metallurgy Division of NIST, USA (2001).

[5] Ping-Feng Yang, Yi-Shao Lai, Sheng-Rui Jian, Jiunn Chen, Rong-Sheng Chen, Nanoindentation identifications of mechanical properties of Cu6Sn5, Cu3Sn, and Ni3Sn4 intermetallic compounds derived by diffusion couples, Mater. Sci. Eng. A 485 (2008) 305–310.

DOI: 10.1016/j.msea.2007.07.093

[6] J.S. Kang, R.A. Gagliano, G. Ghosh, M.E. Fine, Isothermal solidification of Cu/Sn diffusion couples to form thin-solder joints, J. Electron. Mater. 31 (2002) 1238–1243.

DOI: 10.1007/s11664-002-0015-9

[7] A. Syed-Khaja, J. Franke, Characterization and Reliability of SnCu TLPS joints for high temperature electronics, PCIM Europe 2015, 19 – 21 May 2015, Nuremberg, German.

[8] Byung-Suk Lee, Jeon-Won Yoon, Cu-Sn Intermetallic Compound Joints for High-Temperature Power Electronics Applications, J. Electron. Mater, 47 (2018) 430-435.

DOI: 10.1007/s11664-017-5792-2

[9] Peng Yao, Xiaoyan Li, Xu Han, Liufeng Xu, Shear strength and fracture mechanism for full Cu-Sn IMCs solder joints with different Cu 3 Sn proportion and joints with conventional interfacial structure in electronic packaging, Solder Surf. Mt. Tech. 31(2018) 6-18.

DOI: 10.1108/ssmt-06-2018-0018

[10] G. Khatibi, A. Betzwar Kotas, M. Lederer, Effect of aging on mechanical properties of high temperature Pb-rich solder joints, Microelectron. Reliab. 85 (2018) 1-11.

DOI: 10.1016/j.microrel.2018.03.009

[11] Lei Sun, Ming-he Chen, Liang Zhang, Microstructure evolution and grain orientation of IMC in Cu-Sn TLP bonding solder joints, J. Alloy Compd. 786 (2019) 677- 687.

DOI: 10.1016/j.jallcom.2019.01.384
