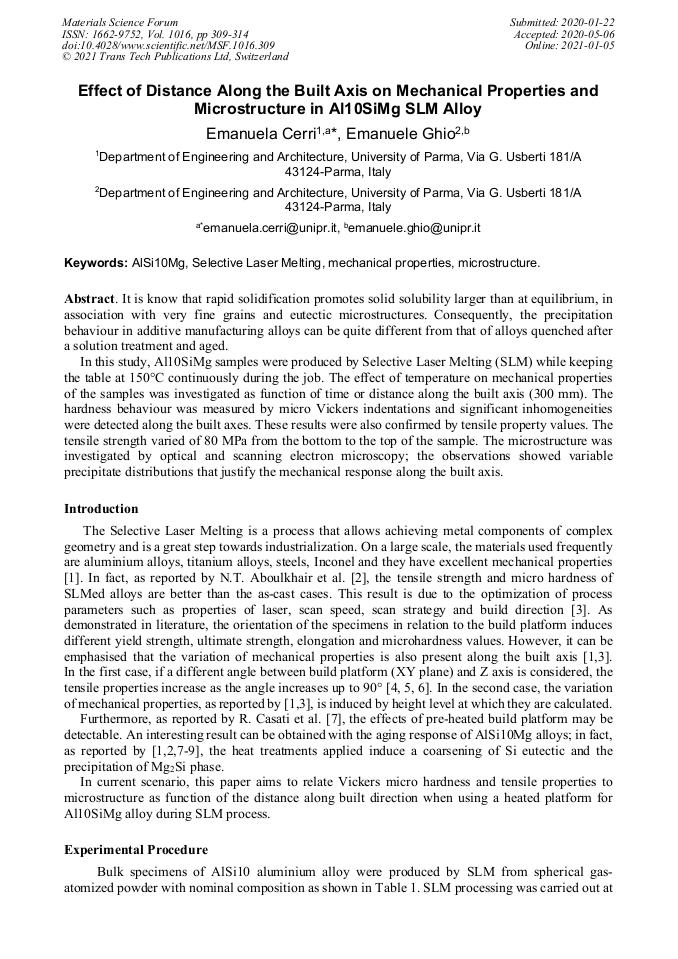

Effect of Distance along the Built Axis on Mechanical Properties and Microstructure in Al10SiMg SLM Alloy

Abstract:

It is know that rapid solidification promotes solid solubility larger than at equilibrium, in association with very fine grains and eutectic microstructures. Consequently, the precipitation behaviour in additive manufacturing alloys can be quite different from that of alloys quenched after a solution treatment and aged. In this study, Al10SiMg samples were produced by Selective Laser Melting (SLM) while keeping the table at 150°C continuously during the job. The effect of temperature on mechanical properties of the samples was investigated as function of time or distance along the built axis (300 mm). The hardness behaviour was measured by micro Vickers indentations and significant inhomogeneities were detected along the built axes. These results were also confirmed by tensile property values. The tensile strength varied of 80 MPa from the bottom to the top of the sample. The microstructure was investigated by optical and scanning electron microscopy; the observations showed variable precipitate distributions that justify the mechanical response along the built axis.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 309-314
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.309
• Online since: January 2021
• Authors: Emanuela Cerri*, Emanuele Ghio
• Keywords: AlSi10Mg, Mechanical Properties, Microstructure, Selective Laser Melting

References

[1] Y.J. Liu, Z. Liu, Y. Jiang, G.W. Wang, Y. Yang, L.C. Zhang, Gradient in microstructure and mechanical property of selective laser melted AlSi10Mg, J. of Alloys and Com., 735 (2018) 1414 – 1421.

DOI: 10.1016/j.jallcom.2017.11.020

[2] N.T. Aboulkhair, I. Maskery, C. Tuck, I. Ashcroft, N.M. Everitt, The microstructure and mechanical properties of selectively laser melted AlSi10Mg: The effect of conventional T6-like heat treatment, Mat. Sci. & Eng. A, 667 (2016) 139 – 143.

DOI: 10.1016/j.msea.2016.04.092

[3] M. Tang, P.C. Pistorius, Anisotropic mecha[nical behaviour of AlSi10Mg parts produced by Selective Laser Melting, 69 (2017) 516 – 522.

DOI: 10.1007/s11837-016-2230-5

[4] P. Hanzl, M. Zetek, T. Baksa, T. Kroupa, The influence of processing parameters on the mechanical properties of SLM parts, 100 (2015) 1405 – 1413.

DOI: 10.1016/j.proeng.2015.01.510

[5] K. Guan, Z. Wang, M. Gao, X. Li, X. Zeng, Effects of processing parameters on tensile properties of selective laser melted 304 stainless steel, 50 (2013) 581 – 586.

DOI: 10.1016/j.matdes.2013.03.056

[6] A. Popovich, V. Sufiiarov, I. Polozov, E. Borisov, D. Masaylo, A. Orlov, Microstructure and mechanical properties of additive manucatured copper alloy, 179 (2016) 38 – 41.

DOI: 10.1016/j.matlet.2016.05.064

[7] R. Casati, M.H. Nasab, M. Coduri, V. Tirelli, M. Vedani, Effects of platform pre-heating and thermal-treatment strategies on properties of AlSi10Mg alloy processed by Selective Laser Melting, Metals, 8 (2018) 954 – 966.

DOI: 10.3390/met8110954

[8] W. Li, S. Li, J. Liu, A. Zhang, Y. Zhou, Q. Wei, C. Yan, Y. Shi, Effect of heat treatment on AlSi10Mg alloy fabricated by selective laser melting: Microstructure evolution, mechanical properties and fracture mechanism, Mat. Sci. & Eng. A, 663 (2016) 116 – 125.

DOI: 10.1016/j.msea.2016.03.088

[9] N. Takata, H. Kodaira, K. Sekizawa, A. Suzuki, M. Kobashi, Change in microstructure of selectively laser melted AlSi10Mg alloy with heat treatments, Mat. Scie. & Eng. A, 704 (2017) 218 – 228.

DOI: 10.1016/j.msea.2017.08.029

[10] E. Brandl, U. Heckenberger, V. Holzinger, D. Buchbinder, Additive manufactured AlSi10Mg samples using Selective Laser Melting (SLM): microstructure, high cycle fatigue and fracture behaviour, Mater. Des., 34 (2012) 159 – 169.

DOI: 10.1016/j.matdes.2011.07.067

[11] X. Wang, C. Zhang, M. Fang, T.B. Sercombe, The effect of atmosphere on the structure and properties of a selective laser melted Al-12Si alloy, Mat. Sci. & Eng. A, 597 (2014) 370 – 375.

DOI: 10.1016/j.msea.2014.01.012
