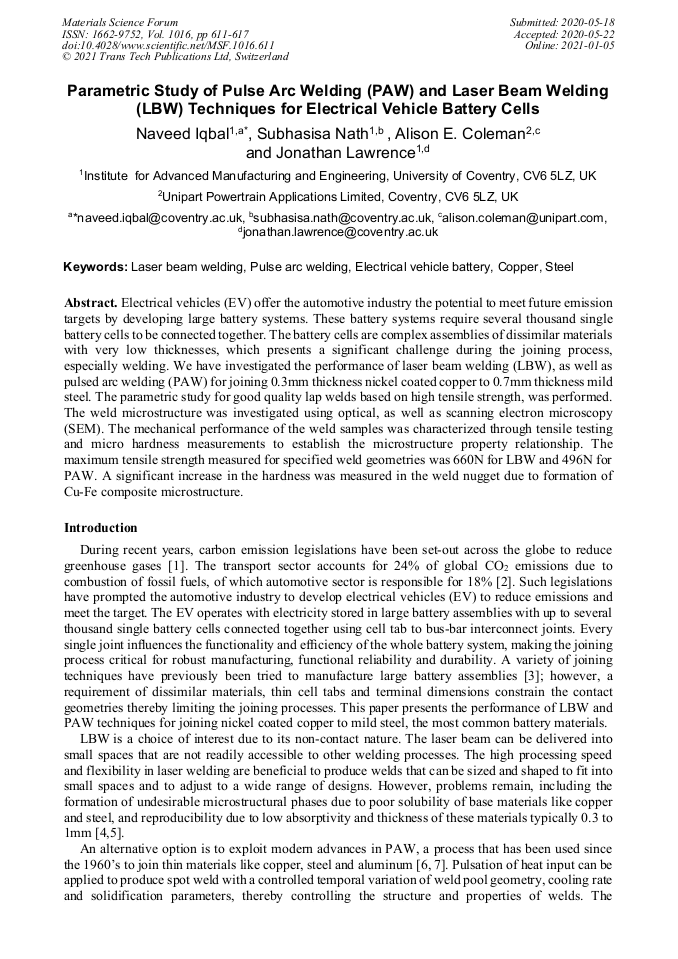

Parametric Study of Pulse Arc Welding (PAW) and Laser Beam Welding (LBW) Techniques for Electrical Vehicle Battery Cells

Abstract:

Electrical vehicles (EV) offer the automotive industry the potential to meet future emission targets by developing large battery systems. These battery systems require several thousand single battery cells to be connected together. The battery cells are complex assemblies of dissimilar materials with very low thicknesses, which presents a significant challenge during the joining process, especially welding. We have investigated the performance of laser beam welding (LBW), as well as pulsed arc welding (PAW) for joining 0.3mm thickness nickel coated copper to 0.7mm thickness mild steel. The parametric study for good quality lap welds based on high tensile strength, was performed. The weld microstructure was investigated using optical, as well as scanning electron microscopy (SEM). The mechanical performance of the weld samples was characterized through tensile testing and micro hardness measurements to establish the microstructure property relationship. The maximum tensile strength measured for specified weld geometries was 660N for LBW and 496N for PAW. A significant increase in the hardness was measured in the weld nugget due to the formation of Cu-Fe composite microstructure

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 611-617
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.611
• Online since: January 2021
• Authors: Naveed Iqbal*, Subhasisa Nath, Alison E. Coleman, Jonathan Lawrence
• Keywords: Copper, Electrical Vehicle Battery, Laser Beam Welding, Pulse Arc Welding, Steel

References

[1] P. Villoria-Saez, V.W.Y. Tam, M. R. Merino, C. V. Arrebola, X. Wang, Effectiveness of greenhouse-gas Emission Trading Schemes implementation: a review on legislations, Journal of Cleaner Production. 127 (2016) 49-58.

DOI: 10.1016/j.jclepro.2016.03.148

[2] S. Solaymani, CO2 emissions patterns in 7 top carbon emitter economies: The case of transport sector, Energy 168 (2019) 989-1001.

DOI: 10.1016/j.energy.2018.11.145

[3] A. Das, D. Li, D. Williams, D. Greenwood, Joining Technologies for Automotive Battery Systems Manufacturing, World Electr. Veh. J. 9 22 (2018) 1-13.

DOI: 10.3390/wevj9020022

[4] T.A. Mai, A.C. Spowage, Characterisation of dissimilar joints in laser welding of steel–kovar, copper–steel and copper–aluminium, Materials science and Engineering A 374 (2004) 224-233.

DOI: 10.1016/j.msea.2004.02.025

[5] W.M. Steen, Laser material processing. 3rd ed. 2003, New York ; London: Springer. P 448-450.

[6] K. Weman, Welding processes handbook, 2nd ed. 2012, Woodhead publishing, pp.75-97.

[7] Y. Hirata, Pulsed Arc Welding, Welding International 17 (2003) 98–115.

DOI: 10.1533/wint.2003.3075

[8] L. He, E. Ma, Processing and microhardness of bulk Cu-Fe nano-composites, Nano Structured Materials, I, 3 (1996) 321-339.
