Post-Fire Performance of Square Concrete-Filled Steel Tube Columns under Uni-Axial Load

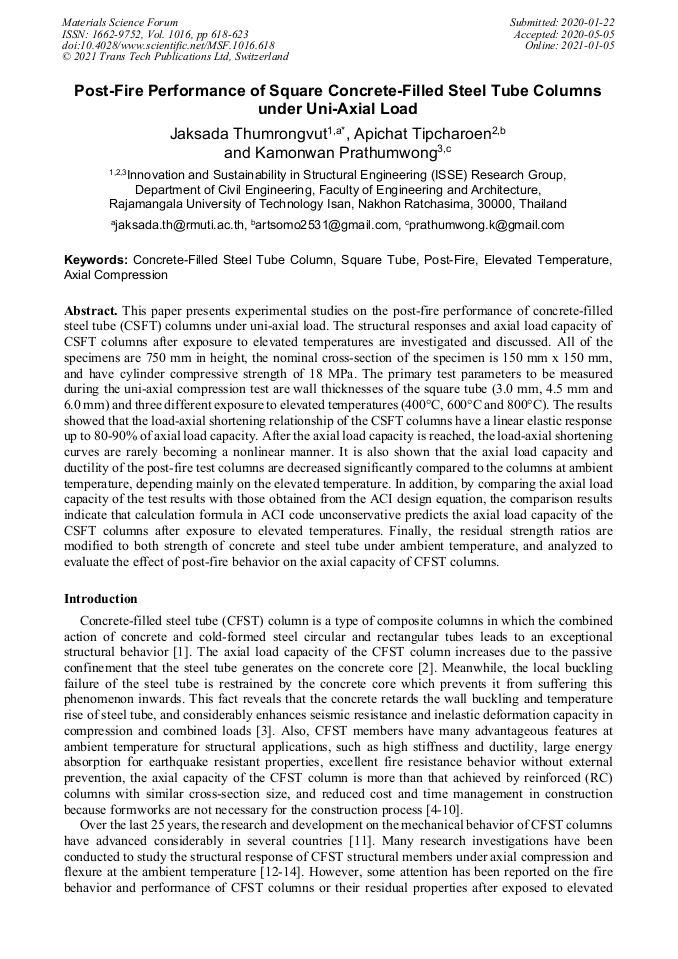

Article Preview

Abstract:

This paper presents experimental studies on the post-fire performance of concrete-filled steel tube (CSFT) columns under uni-axial load. The structural responses and axial load capacity of CSFT columns after exposure to elevated temperatures are investigated and discussed. All of the specimens are 750 mm in height, the nominal cross-section of the specimen is 150 mm x 150 mm, and have cylinder compressive strength of 18 MPa. The primary test parameters to be measured during the uni-axial compression test are wall thicknesses of the square tube (3.0 mm, 4.5 mm and 6.0 mm) and three different exposure to elevated temperatures (400°C, 600°C and 800°C). The results showed that the load-axial shortening relationship of the CSFT columns have a linear elastic response up to 80-90% of axial load capacity. After the axial load capacity is reached, the load-axial shortening curves are rarely becoming a nonlinear manner. It is also shown that the axial load capacity and ductility of the post-fire test columns are decreased significantly compared to the columns at ambient temperature, depending mainly on the elevated temperature. In addition, by comparing the axial load capacity of the test results with those obtained from the ACI design equation, the comparison results indicate that calculation formula in ACI code unconservative predicts the axial load capacity of the CSFT columns after exposure to elevated temperatures. Finally, the residual strength ratios are modified to both strength of concrete and steel tube under ambient temperature, and analyzed to evaluate the effect of post-fire behavior on the axial capacity of CFST columns.

You might also be interested in these eBooks
THERMEC 2021 View Preview

Info:

Periodical:

Materials Science Forum (Volume 1016)

Pages:

618-623

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1016.618

Citation:

Cite this paper

Online since:

January 2021

Authors:

Jaksada Thumrongvut*, Apichat Tipcharoen, Kamonwan Prathumwong

Keywords:

Axial Compression, Concrete-Filled Steel Tube Column, Elevated Temperature, Post-Fire, Square Tube

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2021 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Han, L.H., Li, W. and Bjorhovde, R., Developments and advanced applications of concrete-filled steel tubular (CFST) structures: Members. Journal of Constructional Steel Research, 100 (2014) 211-228.

DOI: 10.1016/j.jcsr.2014.04.016

Google Scholar

[2] Thumrongvut, J. and Tiwjantuk, P., Strength and axial behavior of cellular lightweight concrete-filled steel rectangular tube columns under axial compression. Materials Science Forum, 941(2018) 2417-2422.

DOI: 10.4028/www.scientific.net/msf.941.2417

Google Scholar

[3] Thumrongvut, J. and Seangatith, S., Axial load capacity of cellular lightweight concrete-filled steel square tube columns. Central Europe towards Sustainable Building (CESB 2016): Innovations for Sustainable Future, Czech Republic, 22-24 June 2016, 1312-1319.

DOI: 10.4028/www.scientific.net/msf.860.121

Google Scholar

[4] Elremaily, A. and Azizinamini, A., Behavior and strength of circular concrete-filled tube columns. Journal of Constructional Steel Research, 58(12) (2002) 1567-1591.

DOI: 10.1016/s0143-974x(02)00005-6

Google Scholar

[5] Liu, D., Gho, W.M. and Yuan, J., Ultimate capacity of high-strength rectangular concrete-filled steel hollow section stub columns. Journal of Constructional Steel Research, 59(12) (2003) 1499-1515.

DOI: 10.1016/s0143-974x(03)00106-8

Google Scholar

[6] Giakoumelis, G. and Lam, D., Axial capacity of circular concrete-filled tube columns. Journal of Constructional Steel Research, 60(7) (2004) 1049-1068.

DOI: 10.1016/j.jcsr.2003.10.001

Google Scholar

[7] Xiao, Y., He, W. and Choi, K., Confined concrete filled tubular columns. Journal of Structural Engineering, 131(3) (2005) 488-497.

DOI: 10.1061/(asce)0733-9445(2005)131:3(488)

Google Scholar

[8] Seangatith, S. and Thumrongvut, J., Behaviors of square thin-walled steel tubed RC columns under direct axial compression on RC core. Procedia Engineering, 14 (2011) 513-520.

DOI: 10.1016/j.proeng.2011.07.064

Google Scholar

[9] Chen, B., Liu, X. and Li, S.J., Performance investigation of square concrete-filled steel tube columns. Journal of Wuhan University of Technology-Mater. Sci. Ed., 26(4) (2011) 730-736.

DOI: 10.1007/s11595-011-0302-5

Google Scholar

[10] Ding, F., Liu, J., Liu, X., Yu, Z. and Li, D., Mechanical behavior of circular and square concrete filled steel tube stub columns under local compression. Thin-Walled Structures, 94 (2015) 155-166.

DOI: 10.1016/j.tws.2015.04.020

Google Scholar

[11] Thumrongvut, J., Seangatith, S., Siriparinyanan, T. and Wangrakklang, S., An experimental behaviour of cellular lightweight concrete-filled steel square tube columns under axial compression. Materials Science Forum, 860 (2016) 121-124.

DOI: 10.4028/www.scientific.net/msf.860.121

Google Scholar

[12] Lue, D.M., Liu, J.L. and Yen, T., Experimental study on rectangular CFT columns with high-strength concrete. Journal of Constructional Steel Research, 63(1) (2007) 37-44.

DOI: 10.1016/j.jcsr.2006.03.007

Google Scholar

[13] Zhang, S. and Liu, J., Seismic behavior and strength of square tube confined reinforced-concrete (STRC) columns. Journal of Constructional Steel Research, 63(9) (2007) 1194-1207.

DOI: 10.1016/j.jcsr.2006.11.017

Google Scholar

[14] Lu, Y., Li, N., Li, S. and Liang, H., Behavior of steel fiber reinforced concrete-filled steel tube columns under axial compression. Construction and Building Materials, 95 (2015) 74-85.

DOI: 10.1016/j.conbuildmat.2015.07.114

Google Scholar

[15] Han, L.H. and Huo, J.S., Concrete-filled hollow structural steel columns after exposure to ISO-834 fire standard. Journal of Structural Engineering, 129(1) (2003) 68-78.

DOI: 10.1061/(asce)0733-9445(2003)129:1(68)

Google Scholar

[16] Liu, F., Gardner, L. and Yang, H., Post-fire behaviour of reinforced concrete stub columns confined by circular steel tubes. Journal of Constructional Steel Research, 102 (2014) 82-103.

DOI: 10.1016/j.jcsr.2014.06.015

Google Scholar

[17] Short, N., Purkiss, J. and Guise, S., Assessment of fire damaged concrete using colour image analysis. Construction and Building Materials, 15 (2001) 9-15.

DOI: 10.1016/s0950-0618(00)00065-9

Google Scholar

[18] Li, W., Luo, Z., Tao, Z., Duan, W.H. and Shah, S.P. Mechanical behavior of recycled aggregate concrete-filled steel tube stub columns after exposure to elevated temperatures. Construction and Building Materials, 146 (2017) 571-581.

DOI: 10.1016/j.conbuildmat.2017.04.118

Google Scholar

[19] Mohamedbhai, G.G. Effect of exposure time and rates of heating and cooling on residual strength of heated concrete. Magazine of Concrete Research, 38(136) (1986) 151-158.

DOI: 10.1680/macr.1986.38.136.151

Google Scholar

[20] EN 1992-1-2, Eurocode 2. Design of Concrete Structures Part 1-2: General Rules - Structural Fire Design, European Committee for Standardization, Brussels, (2004).

Google Scholar

[21] Yao, Y and Hu, X.X. Cooling behavior and residual strength of post-fire concrete filled steel tubular columns. Journal of Constructional Steel Research, 112 (2015) 282-292.

DOI: 10.1016/j.jcsr.2015.05.020

Google Scholar

[22] Neves, I.C., Rodrigues, J.C. and Loureiro, A.P. Mechanical properties of reinforcing and prestressing steels after heating. Journal of Materials in Civil Engineering, 8(4) (1996) 189-194.

DOI: 10.1061/(asce)0899-1561(1996)8:4(189)

Google Scholar

[23] ACI Committee 318, Building Code Requirement for Structural Concrete and Commentary. Farmington Hills: ACI Committee 318-11, (2011).

DOI: 10.1061/(asce)1076-0431(1996)2:3(120.3)

Google Scholar
