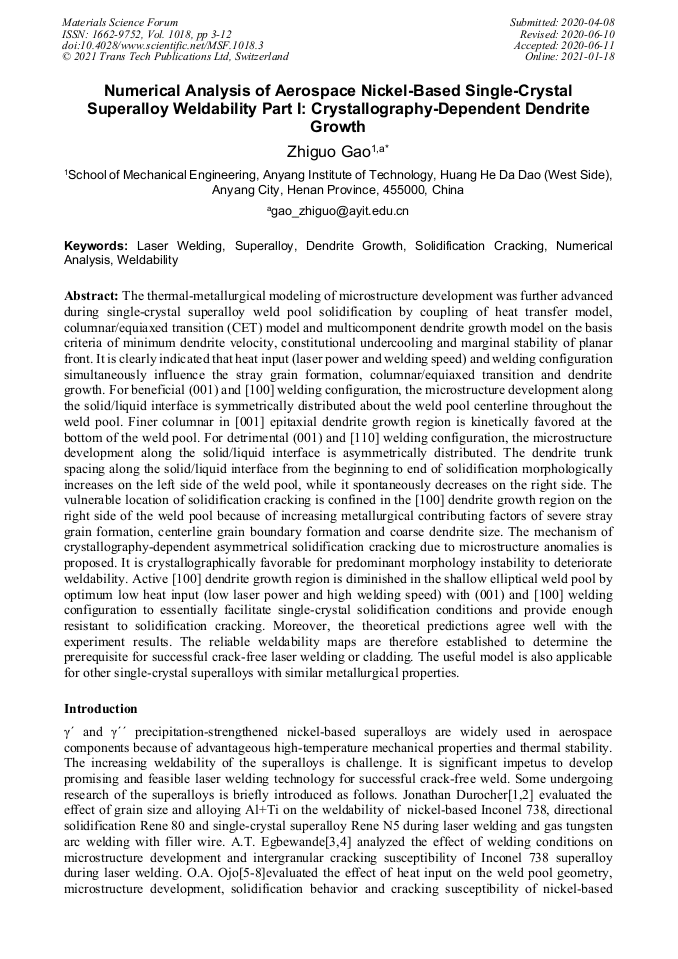

Numerical Analysis of Aerospace Nickel-Based Single-Crystal Superalloy Weldability Part I: Crystallography-Dependent Dendrite Growth

Abstract:

The thermal-metallurgical modeling of microstructure development was further advanced during single-crystal superalloy weld pool solidification by coupling of heat transfer model, columnar/equiaxed transition (CET) model and multicomponent dendrite growth model on the basis criteria of minimum dendrite velocity, constitutional undercooling and marginal stability of planar front. It is clearly indicated that heat input (laser power and welding speed) and welding configuration simultaneously influence the stray grain formation, columnar/equiaxed transition and dendrite growth. For beneficial (001) and [100] welding configuration, the microstructure development along the solid/liquid interface is symmetrically distributed about the weld pool centerline throughout the weld pool. Finer columnar in [001] epitaxial dendrite growth region is kinetically favored at the bottom of the weld pool. For detrimental (001) and [110] welding configuration, the microstructure development along the solid/liquid interface is asymmetrically distributed. The dendrite trunk spacing along the solid/liquid interface from the beginning to end of solidification morphologically increases on the left side of the weld pool, while it spontaneously decreases on the right side. The vulnerable location of solidification cracking is confined in the [100] dendrite growth region on the right side of the weld pool because of increasing metallurgical contributing factors of severe stray grain formation, centerline grain boundary formation and coarse dendrite size. The mechanism of crystallography-dependent asymmetrical solidification cracking due to microstructure anomalies is proposed. It is crystallographically favorable for predominant morphology instability to deteriorate weldability. Active [100] dendrite growth region is diminished in the shallow elliptical weld pool by optimum low heat input (low laser power and high welding speed) with (001) and [100] welding configuration to essentially facilitate single-crystal solidification conditions and provide enough resistant to solidification cracking. Moreover, the theoretical predictions agree well with the experiment results. The reliable weldability maps are therefore established to determine the prerequisite for successful crack-free laser welding or cladding. The useful model is also applicable for other single-crystal superalloys with similar metallurgical properties.

• Periodical: Materials Science Forum (Volume 1018)
• Pages: 3-12
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1018.3
• Online since: January 2021
• Authors: Zhi Guo Gao*
• Keywords: Dendrite Growth, Laser Welding, Numerical Analysis, Solidification Cracking, Superalloy, Weldability

References

[1] Jonathan Durocher, Thermo-mechanical fatigue of polycrystalline, directionally solidified and single crystal nickel-based superalloys repaired by laser beam welding,2013, University of Manitoba, PhD dissertation.

[2] J.Durocher, N.L. Richards, Evaluation of the low heat input process for weld repair of nickel-based superalloys, Journal of Materials Engineering and Performance, Vol.20(7)(2011), 1294- 1303.

DOI: 10.1007/s11665-010-9749-3

[3] A. T. Egbewande, H.R. Zhang, R.K. Sidhu, O.A. Ojo, Improvement in laser weldability of Inconel 718 superalloy through microstructural modification, Metallurgical and Materials Transactions A, Vol.40A(2009),2694-2704.

DOI: 10.1007/s11661-009-9962-6

[4] A.T. Egbewande, R.A. Buckson, O.A. Ojo, Analysis of laser beam weldability of Inconel 738 superalloy. Materials Characterization, 61(2010),569-574.

DOI: 10.1016/j.matchar.2010.02.016

[5] Olanrewaju Akanbi OjO, On liquation cracking of cast Inconel 738LC superalloy welds,2004, University of Manitoba, PhD dissertation.

[6] O.A. Ojo, N.L. Richards, M.C. Chaturvedi, Microstructural sturdy of weld fusion zone of TIG welded IN738LC nickel-based superalloy, Scripta Materialia, 51(2004), 683-688.

DOI: 10.1016/j.scriptamat.2004.06.013

[7] O.A. Ojo, N.L. Richards, M.C. Chaturvedi, Study of the fusion zone and heat-affected zone microstructures in tungsten inert gas-welded Inconel 738LC superalloy. Metallurgical and Materials Transactions A, Vol.37A(2006),421-433.

DOI: 10.1007/s11661-006-0013-2

[8] M.Montazeri, F.Malek Ghaini, O.A. Ojo, Heat input and the liquation cracking of laser welded IN738LC superalloy, Welding Journal, Vol.92(2013),258s-264s.

DOI: 10.1016/j.matchar.2012.02.019

[9] Oyedele Temitope Ola, A study of laser-arc hybrid weldability of nickel-based Inconel 738LC superalloy,2013, University of Manitoba, PhD dissertation.

[10] O.T. Ola, O.A. Ojo, M.C. Chaturvedi, Laser-arc hybrid weld microstructure in nickel-based IN738 superalloy. Materials Science and Technology, Vol.29(4)(2013),426-438.

DOI: 10.1179/1743284712y.0000000129

[11] O.T. Ola, O.A. Ojo, M.C. Chaturvedi, Role of filler alloy composition in laser-arc hybrid weldability of nickel-based IN738 superalloy, Materials Science and Technology, Vol.30(2)(2014), 1461-1469.

DOI: 10.1179/1743284713y.0000000436

[12] Krutika Vishwakarma, Microstructural analysis of weld cracking in 718 plus superalloy, 2007, University of Manitoba, PhD dissertation.

[13] Lawrence Opeyem Osoba, A study on laser weldability improvement of newly developed Haynes 282 superalloy, 2012, University of Manitoba, PhD dissertation.

[14] O.A. Idowu, Heat-affected zone cracking of Allvac 718 plus superalloy during high power beam welding and post-weld heat treatment, 2010, University of Manitoba, PhD dissertation.

[15] Adam Ghoneim, Numerical simulation and experimental study of transient liquid phase bounding of single crystal superalloys, 2011, University of Manitoba, PhD dissertation.

[16] Wei Chen, Composition effect of macroscopic solidification segregation of superalloys,2000, West Virginia University, PhD dissertation.

[17] R.G. Ding, O.A. Ojo, M.C. Chaturvedi. Fusion zone microstructure of laser beam welded directionally solidified Ni3Al-based alloy IC6, Scripta Materialia, 54(2006), 859-864.

DOI: 10.1016/j.scriptamat.2005.11.010

[18] Y.L. Wang, O.A. Ojo, R.G. Ding, M.C. Chaturvedi. Weld metal cracking in laser beam welded single crystal nickel-based superalloys. Materials Science and Technology, Vol.25(1)(2009),68-75.

DOI: 10.1179/174328407x185938

[19] R.K. Sidhu, O.A. Ojo, M.C. Chaturvedi. Microstructural analysis of laser beam welded directionally solidified Inconel 738.Metallurgical and Materials Transactions A, Vol.38A(2007),858- 870.

DOI: 10.1007/s11661-006-9063-8

[20] N.L. Richards, M.C. Chaturvedi. Effect of minor elements on weldability of nickel-based superalloys. International Materials Reviews, Vol.45(3)(2000),109-129.

DOI: 10.1179/095066000101528331

[21] M.Rappaz, S.A. David, J.M. Vitek, L.A. Boatner. Analysis of solidification microstructures in Fe-Ni-Cr single-crystal welds, Metallurgical Transactions A. Vol.21A(1990),1767-1782.

DOI: 10.1007/bf02672593

[22] M.Rappaz, S.A. David, J.M. Vitek, L.A. Boatner. Development of microstructures in Fe-15Ni -15Cr single crystal electron beam welds, Metallurgical Transactions A. Vol.20A(1989),1125-1138.

DOI: 10.1007/bf02650147

[23] J.M. Vitek. The effect of welding conditions on stray grain formation in single crystal welds- theoretical analysis, Acta Materialia. 53(2005),53-67.

DOI: 10.1016/j.actamat.2004.08.039

[24] Edward H. Kottcamp. ASM Handbook, Volume 3, Alloy phase diagrams, ASM International, USA,1993,49-155.

[25] Wu Qiong,Li Shusuo,Ma Yue, Gong Shengkai. First principles calculations of alloying element diffusion coefficient in Ni using the five-frequency model, Chin.Phys.B. Vol.21(10)(2012), 1091021-1-7.

DOI: 10.1088/1674-1056/21/10/109102

[26] Weiping Liu, J.N. Dupont. Effects of melt-pool geometry on crystal growth and microstructure development in laser surface-melted superalloy single crystals. Mathematical modeling of single- crystal growth in a melt pool (part I), Acta Materialia. 52(2004),4833-4847.

DOI: 10.1016/s1359-6454(04)00390-8

[27] Weiping Liu, J.N. Dupont. Effects of substrate crystallographic orientation on crystal growth and microstructure development in laser surface-melted superalloy single crystals. Mathematical modeling of single-crystal growth in a melt pool (part II), Acta Materialia. 53(2005),1545-1558.

DOI: 10.1016/j.actamat.2004.12.007

[28] J.M. Vitek, S.S. Babu, J.M. Park, S.A. David. Analysis of stray grain formation in single-crystal nickel-based superalloy welds, Proceeding of the International Symposium on Superalloy.2004, 459- 465.

DOI: 10.7449/2004/superalloys_2004_459_465

[29] J.M. Park, S.S. Babu, J.M. Vitek, E.A. Kenik, S.A. David. Stray grain formation in single crystal Ni-based superalloy welds, Journal of Applied Physics. Vol.94(6)(2003),4203-4209.

DOI: 10.1063/1.1602950

[30] J.M. Vitek, S.A. David, S.S. Babu. Optimization of welding conditions and alloy composition for welding single-crystal nickel-based superalloys, Materials Science Forum. Vols. 539-54 (2007), 3082-3087.

DOI: 10.4028/www.scientific.net/msf.539-543.3082
