Friction Coefficient and Wear of PEEK-PTFE Hybrid Radial Ball Bearings under Dry Conditions

Abstract:

In this paper, in order to investigate friction coefficient and wear of PEEK-PTFE hybrid radial bearings, rolling contact fatigue tests were performed under radial loads ranging from 93N to 387N at 600rpm in dry conditions. It was found that friction coefficients were 0.013 to 0.032 throughout the tests. Operation temperature followed the change in the friction coefficient, and PEEK-PTFE radial ball bearings exhibited stable performance even though the temperature locally approached 100 °C due to frictional heat. Moreover, wear loss of bearing components excluding alumina balls increased exponentially with increase of load.

You might also be interested in these eBooks

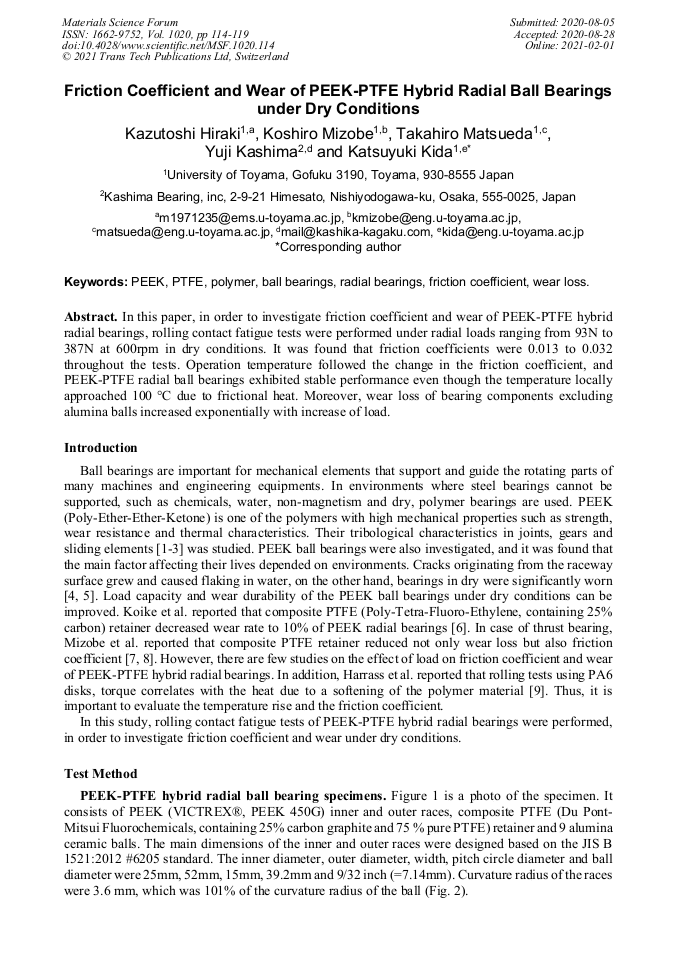

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1020)

Pages:

114-119

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1020.114

Citation:

Cite this paper

Online since:

February 2021

Authors:

Kazutoshi Hiraki, Koshiro Mizobe, Takahiro Matsueda, Yuji Kashima, Katsuyuki Kida*

Keywords:

Ball Bearings, Friction Coefficient, PEEK, Polymer, PTFE, Radial Bearings, Wear Loss

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] A. Wang, R. Lin, C. Stark and J. H. Dumbleton: Wear, Vol. 225, No.229-2, (1999), pp.724-727.

Google Scholar

[2] M. Kurokawa, Y. Uchiyama and S, Nagai: Tribology International, Vol. 32, (1999), pp.491-497.

Google Scholar

[3] Yuji Yamamoto, Tadashi Takashima: Wear, Vol. 253, (2002), pp.820-826.

Google Scholar

[4] H. Koike, T. Honda, K. Kida, E. C. Santos, J. Rozwadowska, K. Houri, M. Uryu, Y. Kashima and K. Kanemasu: Advanced Materials Research, Vols. 217-218, (2011), pp.1260-1265.

DOI: 10.4028/www.scientific.net/amr.217-218.1260

Google Scholar

[5] H. Koike, K. Kida, T. Honda, K. Mizobe, S. Oyama, J. Rozwadowska, Y. Kashima and K. Kanemasu: Advanced Materials Research, Vol. 556, (2012), pp.109-114.

DOI: 10.4028/www.scientific.net/amr.566.109

Google Scholar

[6] H. Koike, K. Kida, K. Mizobe, X. Shi, S. Oyama and Y. Kashima: Tribology International, Vol. 90, (2015), pp.77-83.

DOI: 10.1016/j.triboint.2015.04.007

Google Scholar

[7] K. Mizobe, T. Honda, H. Koike, E. C. SANTOS, K. Kida and Y. Kashima: Advanced Materials Research, Vol. 567, (2012), pp.66-70.

Google Scholar

[8] K. Mizobe, T. Honda, H. Koike, E. C. SANTOS, Y. Kashima and K. Kida: Advanced Materials Research, Vol. 683, (2013), pp.90-93.

DOI: 10.4028/www.scientific.net/amr.683.90

Google Scholar

[9] M. Harrass, K. Friedrich and A.A. Almajid: Tribology International, Vol. 43, (2010), pp.635-646.

DOI: 10.1016/j.triboint.2009.10.003

Google Scholar
