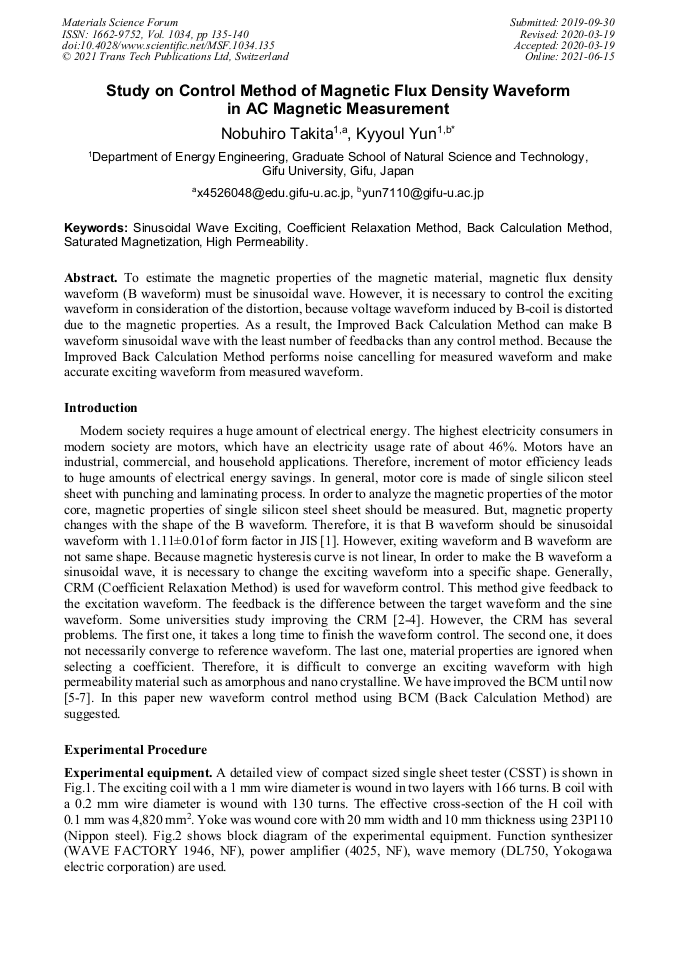

Study on Control Method of Magnetic Flux Density Waveform in AC Magnetic Measurement

Abstract:

To estimate the magnetic properties of the magnetic material, magnetic flux density waveform (B waveform) must be sinusoidal wave. However, it is necessary to control the exciting waveform in consideration of the distortion, because voltage waveform induced by B-coil is distorted due to the magnetic properties. As a result, the IBCM can make B waveform sinusoidal wave with the least number of feedbacks than any control method. Because the IBCM performs noise cancelling for measured waveform and make accurate exciting waveform from measured waveform.

• Periodical: Materials Science Forum (Volume 1034)
• Pages: 135-140
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1034.135
• Online since: June 2021
• Authors: Nobuhiro Takita, Kyyoul Yun*
• Keywords: Back Calculation Method, Coefficient Relaxation Method, High Permeability, Saturated Magnetization, Sinusoidal Wave Exciting

References

[1] JIS C 2556:2005, Methods of measurement of the magnetic properties of electronical steel strip and sheet by means of a single sheet tester.

DOI: 10.3403/30415006u

[2] Tomoya Nakase, Masanori Nakano, Koji Fujiwara and Norio Takahashi: Method of Digital Waveform Control for Measuring Magnetic Properties by Means of a Single Sheet Tester, the transactions of the institute of electrical engineers of japan, vol. 199-A, no.7, (1999).

DOI: 10.1541/ieejfms1990.119.7_1019

[3] Shotaro Ueno, Kojiro Hori, Koji Fujiwara, Yoshiyuki Ishihara, and Toshiyuki Todaka: Investigation on Speeding up of a Waveform Control Method for a Single Sheet Tester, The papers of Technical Meeting on Magnetics, IEE Japan, MAG-08-79, (2008).

[4] Shotaro Ueno, Koji Fujiwara, and Yoshiyuki Ishihara: Investigation on Speeding up of a Waveform Control Method for a Single Sheet Tester (Pt. 2): Control Method by Means of Initial Waveform Estimation, The papers of Technical Meeting on Magnetics, IEE Japan, MAG-09-39, (2009).

[5] Kyyoul Yun, Shunji Yanase, Takita Nobuhiro, and Tomohiro Hidaka: Waveform control of nearly saturated magnetic flux density using back calculation method, The papers of Technical Meeting on Magnetics, IEE Japan, MAG-17-119, (2017).

[6] Nobuhiro Takita, Kyyoul Yun: Study on control method of magnetic flux density waveform in AC magnetic measurement, The papers of Technical Meeting on Magnetics, IEE Japan, MAG-17-199, (2017).

DOI: 10.4028/www.scientific.net/msf.1034.135

[7] Nobuhiro Takita, Kyyoul Yun: Study on control method of magnetic flux density waveform in AC magnetic measurement, The papers of The Institute of Electrical Engineers of Japan, 2-149 (2019).

DOI: 10.4028/www.scientific.net/msf.1034.135
