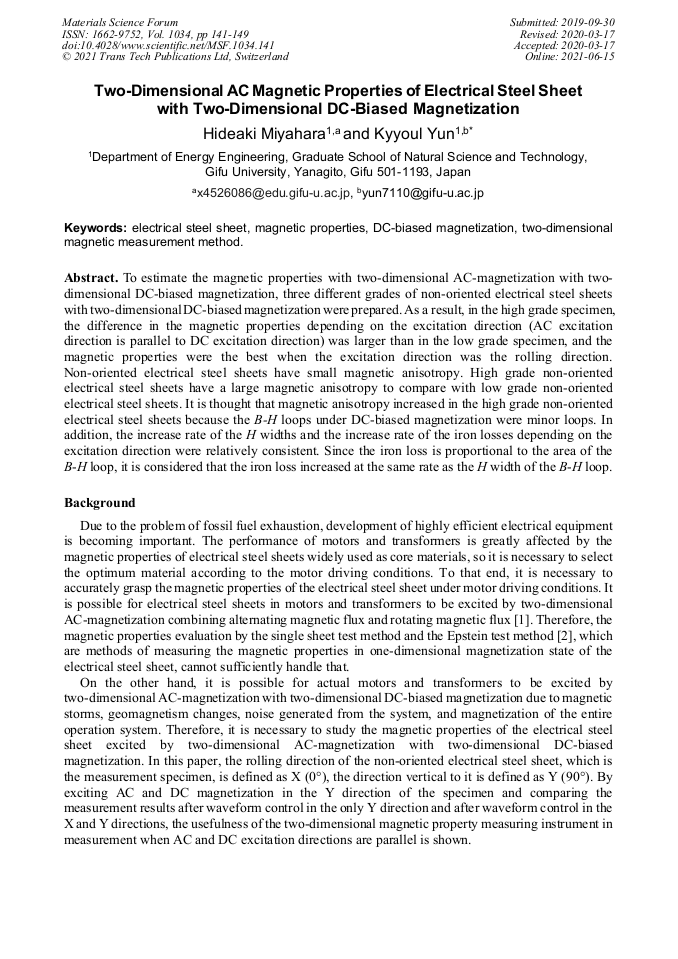

Two-Dimensional AC Magnetic Properties of Electrical Steel Sheet with Two-Dimensional DC-Biased Magnetization

Abstract:

To estimate the magnetic properties with two-dimensional AC-magnetization with two-dimensional DC-biased magnetization, three different grades of non-oriented electrical steel sheets with two-dimensional DC-biased magnetization were prepared. As a result, in the high grade specimen, the difference in the magnetic properties depending on the excitation direction (AC excitation direction is parallel to DC excitation direction) was larger than in the low grade specimen, and the magnetic properties were the best when the excitation direction was the rolling direction. Non-oriented electrical steel sheets have small magnetic anisotropy. High grade non-oriented electrical steel sheets have a large magnetic anisotropy to compare with low grade non-oriented electrical steel sheets. It is thought that magnetic anisotropy increased in the high grade non-oriented electrical steel sheets because the B-H loops under DC-biased magnetization were minor loops. In addition, the increase rate of the H widths and the increase rate of the iron losses depending on the excitation direction were relatively consistent. Since the iron loss is proportional to the area of the B-H loop, it is considered that the iron loss increased at the same rate as the H width of the B-H loop.

• Periodical: Materials Science Forum (Volume 1034)
• Pages: 141-149
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1034.141
• Online since: June 2021
• Authors: Hideaki Miyahara, Kyyoul Yun*
• Keywords: DC-Biased Magnetization, Electrical Steel Sheet, Magnetic Properties, Two-Dimensional Magnetic Measurement Method

References

[1] M. Enokizono, S. Fujiyama, H. Simoji, and J. Sievert, Localized distribution of two-dimensional magnetic properties in three-phase induction motor core model, J. Magn. Magn. Mater., 215-216, pp.772-775, (2000).

DOI: 10.1016/s0304-8853(00)00284-5

[2] JIS C 2550-1:2011, Test methods for electrical steel strip and sheet – Part 1: Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of an Epstein frame.

DOI: 10.3403/01451763u

[3] JIS C 2552:2014, Cold-rolled non-oriented electrical steel strip and sheet delivered in the fully-processed state.

DOI: 10.3403/30288199

[4] N. Takita, and K. Yun, Study on control method of magnetic flux density waveform in AC magnetic measurement, The papers of Technical Meeting on Magnetics, IEE Japan, MAG-17-199, (2017).

DOI: 10.4028/www.scientific.net/msf.1034.135

[5] H. Arita, Y. Tani, and A. Daikoku, Investigation of Magnetic Property of Non-oriented Electrical Steel Sheet by Ring Specimen Method, The papers of Technical Meeting on Magnetics, IEE Japan, MAG-03-93, (2003).

[6] T. Wakisaka, T. Kubota, and C. Kaido, Best Selection of Motor Core Materials for Reduction of Motor Core Losses, The Papers of Technical Meeting on Rotating Machinery, IEE Japan, RM-99-126, (1999).

[7] K. Yun, Two-Dimensional AC Magnetic Properties of Electrical Steel Sheet under Two-Dimensional DC-Biased Magnetization, Journal of the Japan Society of Applied Electromagnetics, Vol.26, No.3, (2018).

DOI: 10.14243/jsaem.26.448

[8] S. Ishikawa, S. Yanase, and Y. Okazaki, Two dimensional Magnetic Properties of Electrical Steel Sheet under DC-biased Magnetization, The papers of Technical Meeting on Magnetics, IEE Japan, MAG-10-101, (2010).

DOI: 10.1109/tmag.2011.2173315

[9] A. Daikoku, S. Yamaguchi, Y. Toide, K. Fujiwara, and N. Takahashi, Cogging Torque Estimation of Permanent Magnet Motors Resulting from Magnetic Anisotropy of Non-oriented Electrical Steel Sheets, IEEJ Trans. IA, Vol.126, No.12, (2006).

DOI: 10.1541/ieejias.126.1712
