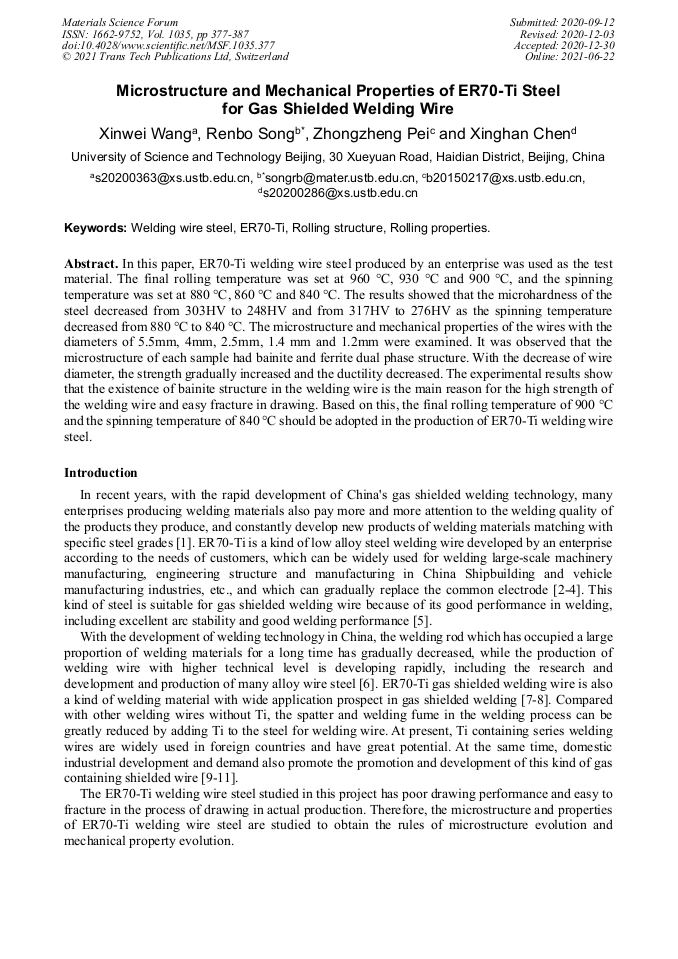

Microstructure and Mechanical Properties of ER70-Ti Steel for Gas Shielded Welding Wire

Abstract:

In this paper, ER70-Ti welding wire steel produced by an enterprise was used as the test material. The final rolling temperature was set at 960 °C, 930 °C and 900 °C, and the spinning temperature was set at 880 °C, 860 °C and 840 °C. The results showed that the microhardness of the steel decreased from 303HV to 248HV and from 317HV to 276HV as the spinning temperature decreased from 880 °C to 840 °C. The microstructure and mechanical properties of the wires with the diameters of 5.5mm, 4mm, 2.5mm, 1.4 mm and 1.2mm were examined. It was observed that the microstructure of each sample had bainite and ferrite dual phase structure. With the decrease of wire diameter, the strength gradually increased and the ductility decreased. The experimental results show that the existence of bainite structure in the welding wire is the main reason for the high strength of the welding wire and easy fracture in drawing. Based on this, the final rolling temperature of 900 °C and the spinning temperature of 840 °C should be adopted in the production of ER70-Ti welding wire steel.

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 377-387
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.377
• Online since: June 2021
• Authors: Xin Wei Wang, Ren Bo Song*, Zhong Zheng Pei, Xing Han Chen
• Keywords: ER70-Ti, Rolling Properties, Rolling Structure, Welding Wire Steel

References

[1] B.G. Tang. Discussion on the development trend of welding materials in the 21st century, J. Welding, 2001, (3): 7-8.

[2] Y. Fan. Cause analysis of ER55-G wire breaking, J. Nangang science and technology and management, 2008, (4): 1-3.

[3] Majid Jafari, Chan-Woo Bang, Jong-Chan Han, et al. Evolution of microstructure and tensile properties of cold-drawn hyper-eutectoid steel wires during post-deformation annealing, J. Journal of Materials Science & Technology, 2020, 41(06):1-11.

DOI: 10.1016/j.jmst.2019.08.054

[4] X.Y. Zhang, Z.Y. Yang, Y. Liu, et al. Influence of chemical elements on mechanical properties of steel, J. Comprehensive utilization of mineral resources, 2018 (05): 147-151.

[5] Korda A A, Mutoh Y, Miyashita Y, et al. Effects of pearlite morphology and specimen thickness on fatigue crack growth resistance in ferritic–pearlitic steels[J]. Materials Science and Engineering A-structural Materials Properties Microstructure and Processing, 2006, 428(1): 262-269.

DOI: 10.1016/j.msea.2006.05.015

[6] Y.J. Jiang. Development of H09Mn2Ti welding wire steel for CO2 gas shielded welding wire, C. Proceedings of 2010 National steelmaking and continuous casting production technology conference. China Society of metals: China Society of metals, 2010: 357-362+369.

[7] X.Z. Cheng. Research of ER55-Ti weathering gas shielded wire rod, J. Chemical management, 2019 (13): 78-79.

[8] Jonah Klemm-Toole, Julian Benz, Steven W. Thompson, et al. A quantitative evaluation of microalloy precipitation strengthening in martensite and bainite[J]. Materials Science & Engineering A, 2019, 76(03): 138-145.

DOI: 10.1016/j.msea.2019.138145

[9] Dai Xing, Zhuang Kejia, Pu Donglin, et al. An Investigation of the Work Hardening Behavior in Interrupted Cutting Inconel 718 under Cryogenic Conditions.[J]. Materials (Basel, Switzerland), 2020, 13(9), 2202.

DOI: 10.3390/ma13092202

[10] Toribio J, Gonzalez B, Matos J C, et al. Initiation and propagation of fatigue cracks in cold-drawn pearlitic steel wires[J]. Theoretical and Applied Fracture Mechanics, 2017: 410-419.

DOI: 10.1016/j.tafmec.2017.08.007

[11] Natalya Koptseva, Yulia Efimova, Mikhail Chukin, et al. Microstructure and Properties Formed at Different Cooling Rates of Low Carbon Alloy Steel for Welding Wire Production[J]. Solid State Phenomena, 2020, 6026: 99-106.

DOI: 10.4028/www.scientific.net/ssp.304.99
