Phase Transformation of ER70-Ti for Gas Shielded Wire

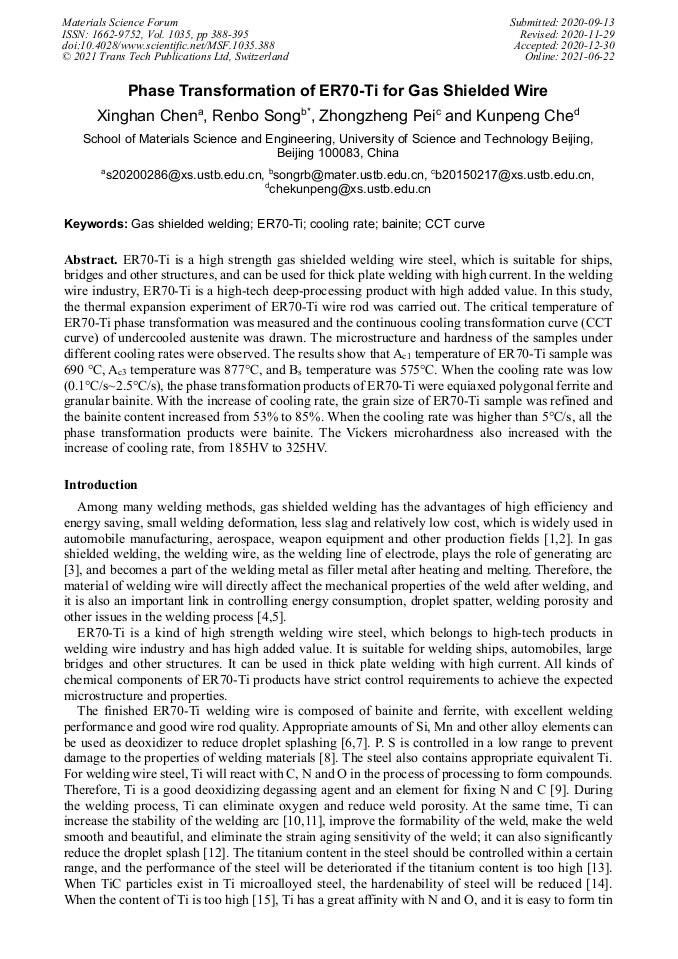

Abstract:

ER70-Ti is a high strength gas shielded welding wire steel, which is suitable for ships, bridges and other structures, and can be used for thick plate welding with high current. In the welding wire industry, ER70-Ti is a high-tech deep-processing product with high added value. In this study, the thermal expansion experiment of ER70-Ti wire rod was carried out. The critical temperature of ER70-Ti phase transformation was measured and the continuous cooling transformation curve (CCT curve) of undercooled austenite was drawn. The microstructure and hardness of the samples under different cooling rates were observed. The results show that A_c1 temperature of ER70-Ti sample was 690 °C, A_c3 temperature was 877°C, and B_s temperature was 575°C. When the cooling rate was low (0.1°C/s~2.5°C/s), the phase transformation products of ER70-Ti were equiaxed polygonal ferrite and granular bainite. With the increase of cooling rate, the grain size of ER70-Ti sample was refined and the bainite content increased from 53% to 85%. When the cooling rate was higher than 5°C/s, all the phase transformation products were bainite. The Vickers microhardness also increased with the increase of cooling rate, from 185HV to 325HV.

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 388-395
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.388
• Online since: June 2021
• Authors: Xing Han Chen, Ren Bo Song*, Zhong Zheng Pei, Kun Peng Che
• Keywords: Bainite, CCT Curve, Cooling Rate, ER70-Ti, Gas Shielded Welding

References

[1] Tian Lu, Zhai Jinpo, Shi Binghua, et al. Continuous cooling transformation behavior and high temperature thermoplastic of welding wire ER70S-6 steel, J. Heat Treatment of Metals, 2019, 44(4): 72-75.

[2] Pan Xin, Zhang Yu, Guo Huiying, et al. Effect of Ni and Mo additions on microstructure and mechanical properties of alloyed welding wire steel, J. Heat Treatment of Metals, 2015, 40(11): 12-16.

[3] Shi Jiangtao. Research and application of hybrid gas shielded welding in manufacturing industry, D. Xiamen University, (2009).

[4] Li Xiaofeng, Zhang Youwei, Wang Fengtao, et al. Trial production and development of ER70S-6 steel wire rod for welding wire, J. Liugang science and technology, 2019, 3: 20-23.

[5] Cui Xiaoyong. Development of sumrged arc welding wire steel H08SG for pipeline steel, D. Qinghuangdao: Yanshan University, (2015).

[6] Cui Zhongqi, Liu Beixing. Metallurgy and heat treatment principle, M. Harbin Institute of Technology Press, 1998: 188-198.

[7] Xie Fan, Chen Weiqing, Wang Yanwu, et al. Continuous cooling transformation of supercooled austenite for ER70S-G gas protection welding wire steel, J. Heat Treatment of Metals, 2016, 41(3): 100-104.

[8] Jiang Yanju. Development of H09Mn2Ti welding wire steel for CO2 gas shielded welding wire, C. Proceedings of 2010 National steelmaking continuous casting production technology conference: 338-343, 350.

[9] Yang Caifu, Zhang Yongquan, Liu Tianjun, et al. Effect of trace ti on mechanical properties of hot rolled wide strip steel, J. Special steel technology, 1995.1: 51-54.

[10] Zhu Jiang. Optimization of rolling process for Ti containing wire rod. Benxi Steel Technology, J. 2015.2: 26-29.

[11] Zheng Hongguang, Shen Jicheng, Wu Difeng, et al. Effect of Ti and Nb on recovery and recrystallization of ultra-low carbon nitrogen Cr18 stainless steel, J. Baosteel Technology, 2010.2: 21-24, 29.

[12] Song Chao, Chen Hu. Analysis of common causes of wire breakage in wire drawing, J. Metalwork, 2004, 30 (1): 26-28.

[13] Gao Zhiping, Li Haiyun. Fracture analysis of wire rod for welding, J. Metalwork, 2005, 31 (2): 29-31.

[14] Jiang Min, Li Zhuoxin, Jiang Jianmin, et al. Self shielded metal cored surfacing welding wire with high hardness and high wear resistance, J. Acta welding Sinica, 2006.1 (27): 69-71.

[15] Zhang Chunyan, Chen Xingwei, Zhang Xiaoxiang, et al. Quality analysis and production process improvement of ER70S-6 wire rod, J. Metal products, 2011, 37 (2): 53-56.

[16] Wang Jianbin, Li jingshe, Yang Shufeng, et al. Study on cleanliness and surface quality of ER70S-6 welding wire steel, J. China metallurgy, 2007, 17 (5): 43-46.

[17] Xie Liqun, Mao Xinping, Huo Xiangdong. Effect of Ti on Microstructure and properties of steel, J. Metallurgical series, 2005, 2 (1): 1-4.
