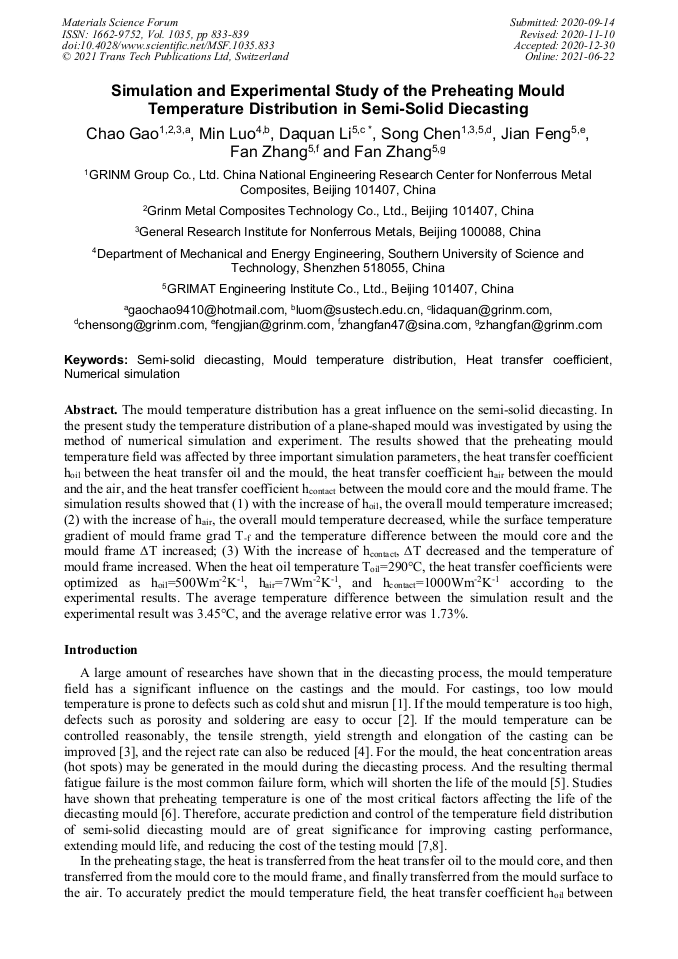

Simulation and Experimental Study of the Preheating Mould Temperature Distribution in Semi-Solid Diecasting

Abstract:

The mould temperature distribution has a great influence on the semi-solid diecasting. In the present study the temperature distribution of a plane-shaped mould was investigated by using the method of numerical simulation and experiment. The results showed that the preheating mould temperature field was affected by three important simulation parameters, the heat transfer coefficient h_oil between the heat transfer oil and the mould, the heat transfer coefficient h_air between the mould and the air, and the heat transfer coefficient h_contact between the mould core and the mould frame. The simulation results showed that (1) with the increase of h_oil, the overall mould temperature imcreased; (2) with the increase of h_air, the overall mould temperature decreased, while the surface temperature gradient of mould frame grad T_-f and the temperature difference between the mould core and the mould frame ∆T increased; (3) With the increase of h_contact, ∆T decreased and the temperature of mould frame increased. When the heat oil temperature T_oil=290°C, the heat transfer coefficients were optimized as h_oil=500Wm^-2K^-1, h_air=7Wm^-2K^-1, and h_contact=1000Wm^-2K^-1 according to the experimental results. The average temperature difference between the simulation result and the experimental result was 3.45°C, and the average relative error was 1.73%.

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 833-839
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.833
• Online since: June 2021
• Authors: Chao Gao, Min Luo, Da Quan Li*, Song Chen, Jian Feng, Fan Zhang, Fan Zhang
• Keywords: Heat Transfer Coefficient, Mould Temperature Distribution, Numerical Simulation, Semi-Solid Diecasting

References

[1] H.P. Yu, F Wang, B.Y. Yu, et al., Influence of Processing Parameters and Heat Treatment on Mechanical Properties of Die-cast AZ91D Alloy, Special Casting & Nonferrous Alloys. 02 (2002) 27-28.

[2] D.Q. Tang, H.B. Zhao, Temperature Control in Die-casting, Special Casting & Nonferrous Alloys. S1 (2002) 73-74.

[3] W. Wu, Z.H. Zou, C.Y. Ma, et al., Effects of Processing Parameters on the Mechanical Properties of Die Casting AM50 Mg Alloy, Special Casting & Nonferrous Alloys. 10 (2005) 43-45+6.

[4] J.B. Liu, A Research and Application on Controlling the Temperature of Diecasting Dies by Water Cooling, Special Casting & Nonferrous Alloys. S1 (1998) 7-10.

[5] W. Zhang, J.R. Fang, S.M. Xiong, et al., Optimization of the Cooling System of Die for Besturn B50 Clutch Shell, Foundry. 62.03 (2013) 191-195.

[6] C.G. Pan, Z.B. Lei, J.L. Zhou, et al., Optimization of Service Life of Die Casting Die Based on ProCAST Software and Orthogonal Experimental Design, Special Casting & Nonferrous Alloys. 37.06 (2017) 611-614.

[7] H. Hoffmann, H. So, H. Steinbeiss, Design of Hot Stamping Tools with Cooling System, CIRP annals. 56.1 (2007) 269-272.

DOI: 10.1016/j.cirp.2007.05.062

[8] S.S. Hsieh, Transient thermal analysis of the waterlines effect in the die casting dies, Applied mathematical modelling. 13.5 (1989) 282-290.

DOI: 10.1016/0307-904x(89)90071-1

[9] C.H. He, X. Feng, Principles of Chemical Engineering, Science Press, Beijing, 2001. (In Chinese).

[10] ProCAST 2016.0 User's Guide.

[11] Q. Zhang, Y.Q. Chen, J.R. Fang, Study on Cooling Channel Arrangement of High -Pressure Casting Die for Box -Like Workpieces, Journal of Xi'an Jiaotong University. 45.07 (2011) 38-44.

[12] Y.H. Zhou, R.C. Lin, Z.Y. Dong, Effects of Cooling System on Temperature Field in Die Casting Dies, Special Casting & Nonferrous Alloys. 30.04 (2010) 345-348+289.

[13] Q. Ning, Experimental study on thermal contact resistance between solid-solid surface and development on database query system, Nanjing University of Science & Technology. (2014).

[14] Y.M. Xuan, Q. Li, P. Zhang. Measurement method and instrument of thermal contact resistance at high temperature, Scientia Sinica (Technologica). 49.05 (2019) 491-500.

DOI: 10.1360/sst-2019-0074
