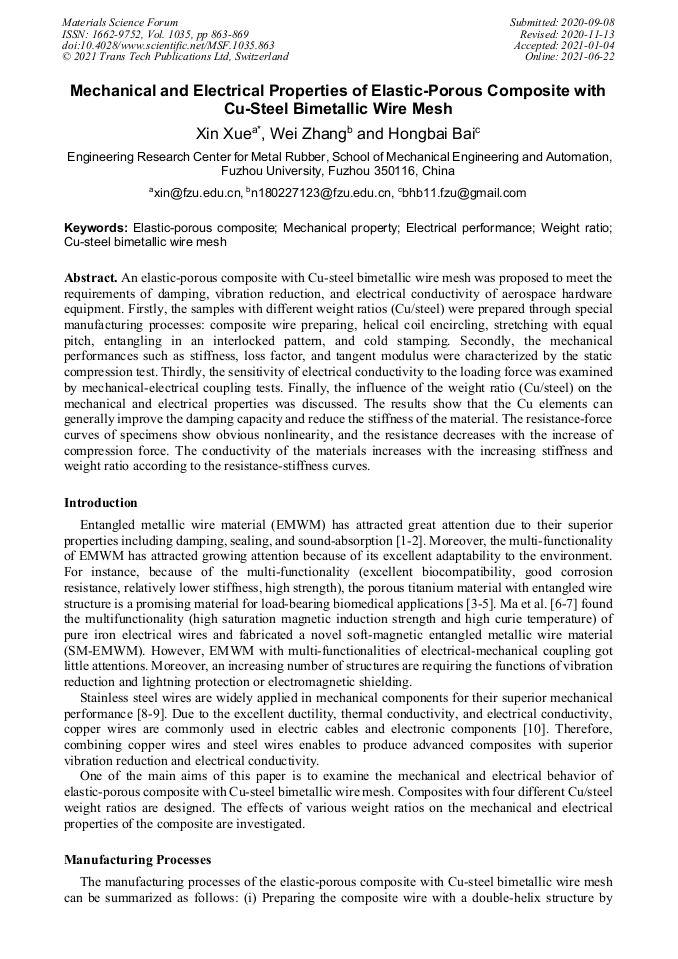

Mechanical and Electrical Properties of Elastic-Porous Composite with Cu-Steel Bimetallic Wire Mesh

Abstract:

An elastic-porous composite with Cu-steel bimetallic wire mesh was proposed to meet the requirements of damping, vibration reduction, and electrical conductivity of aerospace hardware equipment. Firstly, the samples with different weight ratios (Cu/steel) were prepared through special manufacturing processes: composite wire preparing, helical coil encircling, stretching with equal pitch, entangling in an interlocked pattern, and cold stamping. Secondly, the mechanical performances such as stiffness, loss factor, and tangent modulus were characterized by the static compression test. Thirdly, the sensitivity of electrical conductivity to the loading force was examined by mechanical-electrical coupling tests. Finally, the influence of the weight ratio (Cu/steel) on the mechanical and electrical properties was discussed. The results show that the Cu elements can generally improve the damping capacity and reduce the stiffness of the material. The resistance-force curves of specimens show obvious nonlinearity, and the resistance decreases with the increase of compression force. The conductivity of the materials increases with the increasing stiffness and weight ratio according to the resistance-stiffness curves.

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 863-869
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.863
• Online since: June 2021
• Authors: Xin Xue*, Wei Zhang, Hong Bai Bai
• Keywords: Cu-Steel Bimetallic Wire Mesh, Elastic-Porous Composite, Electrical Performance, Mechanical Properties, Weight Ratio

References

[1] L. Courtois, E. Maire, M. Perez, D. Rodney, O, Bouaziz, Y, Brechet, Mechanical Properties of Monofilament Entangled Materials, Adv. Eng. Mater. 14 (2012) 1128-1133.

DOI: 10.1002/adem.201100356

[2] P. Liu, Q. Tan, L. Wu, G. He, Compressive and pseudo-elastic hysteresis behavior of entangled titanium wire materials, Mat. Sci. Eng. A 527 (2010) 3301-3309.

DOI: 10.1016/j.msea.2010.02.071

[3] G. He, P. Liu, Q. Tan, Porous titanium materials with entangled wire structure for load-bearing biomedical applications, J. Mech. Behav. Biomed. 5 (2012) 16-31.

DOI: 10.1016/j.jmbbm.2011.09.016

[4] G. He, P. Liu, Q. Tan, G. Jiang, Flexural and compressive mechanical behaviors of the porous titanium materials with entangled wire structure at different sintering conditions for load-bearing biomedical applications, J. Mech. Behav. Biomed. 28 (2013) 309-319.

DOI: 10.1016/j.jmbbm.2013.08.016

[5] Y. Liu, G. Jiang, G. He, Enhancement of entangled porous titanium by BisGMA for load-bearing biomedical applications, Mater. Sci. Eng. C 61 (2016) 37-41.

DOI: 10.1016/j.msec.2015.12.018

[6] Y. Ma, W. Hu, D. Zhang, Q. Zhang, J. Hong, Tunable mechanical characteristics of a novel soft magnetic entangled metallic wire material, Smart. Mater. Struct. 25 (2016) 095015.

DOI: 10.1088/0964-1726/25/9/095015

[7] Y. Ma, Q. Zhang, D. Zhang, W. Hu, J. Hong, Experimental investigation on the dynamic mechanical properties of soft magnetic entangled metallic wire material, Smart. Mater. Struct. 26 (2017) 055019.

DOI: 10.1088/1361-665x/aa68b2

[8] X. Xue, P. Yang, Y. Shao, H. Bai, Manufacture technology and anisotropic behaviour of elastic-porous metal rubber, Int. J. Light. Mater. Manuf. 3 (2020) 88-99.

DOI: 10.1016/j.ijlmm.2019.08.005

[9] P. Yang, H. Bai, X. Xue, K. Xiao, X. Zhao, Vibration reliability characterization and damping capability of annular periodic metal rubber in the non-molding direction, Mech. Syst. Signal. Pr. 132 (2019) 622-639.

DOI: 10.1016/j.ymssp.2019.07.020

[10] Y. Zhao, W. Yang, Y. Tan, S. Li, X. Zeng, Z. Liu, B.C.K Tee, Highly conductive 3D metal-rubber composites for stretchable electronic applications, J. Technol. 7 (2019) 031508.

DOI: 10.1063/1.5083942

[11] J. Hou, Z. Liu, H. Bai, J. Yang, D. Li, Experimental study of metal rubber's electric resistance based on sintering by electric impulse discharge, Mech. Sci. Technol. 25 (2006) 753-756.

[12] Y. Ma, Q. Zhang, D. Zhang, F. Scarpa, D. Gao, J. Hong, Size-dependent mechanical behavior and boundary layer effects in entangled metallic wire material systems, J. Mater. Sci. 52 (2016) 3741-3756.

DOI: 10.1007/s10853-016-0478-3

[13] Y. Ma, D. Gao, D. Zhang, J. Hong, Compressive and dissipative behavior of metal rubber under constraints, Phys. Status. Solidi. B 252 (2015) 1675-1681.

DOI: 10.1002/pssb.201451617

[14] Y. Wang, H. Bai, J. Hou, Fatigue damage properties of metal rubber materials, J. Mech. Eng. 47 (2011) 65-71.

[15] R. Chandra, S.P. Singh, K. Gupta, Damping studies in fiber-reinforced composites – a review, Compos. Struct. 46 (1999) 41-51.

DOI: 10.1016/s0263-8223(99)00041-0

[16] S. Nambu, M. Michiuchi, J. Inoue, T. Koseki, Effect of interfacial bonding strength on tensile ductility of multilayered steel composites, Compos. Sci. Technol. 69 (2009) 1936-1941.

DOI: 10.1016/j.compscitech.2009.04.013
