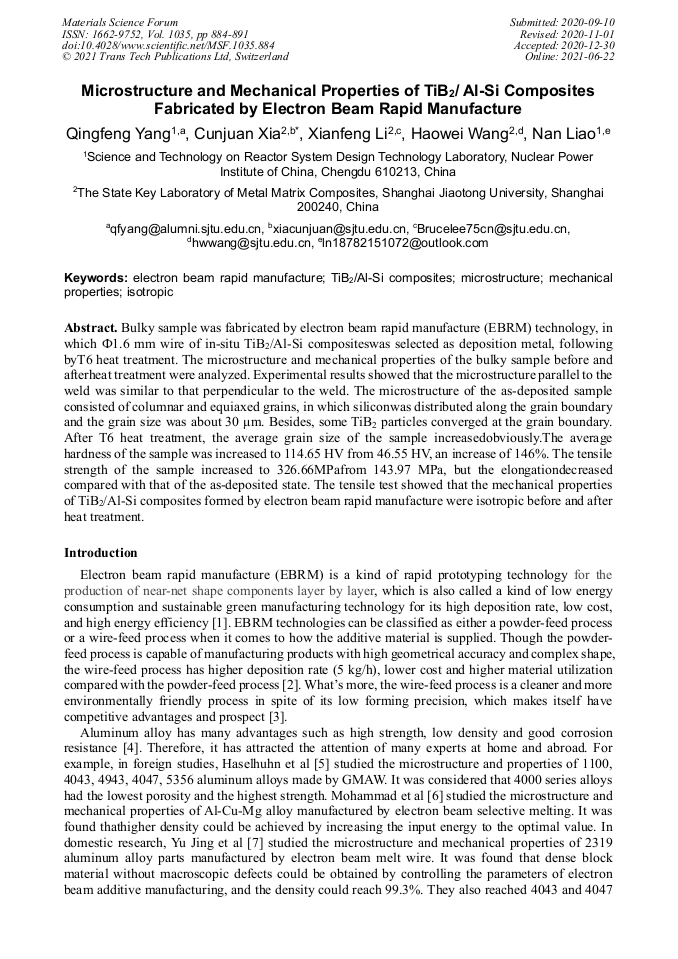

Microstructure and Mechanical Properties of TiB₂/Al-Si Composites Fabricated by Electron Beam Rapid Manufacture

Abstract:

Bulky sample was fabricated by electron beam rapid manufacture (EBRM) technology, in which Ф1.6 mm wire of in-situ TiB₂/Al-Si compositeswas selected as deposition metal, following byT6 heat treatment. The microstructure and mechanical properties of the bulky sample before and afterheat treatment were analyzed. Experimental results showed that the microstructure parallel to the weld was similar to that perpendicular to the weld. The microstructure of the as-deposited sample consisted of columnar and equiaxed grains, in which siliconwas distributed along the grain boundary and the grain size was about 30 μm. Besides, some TiB₂ particles converged at the grain boundary. After T6 heat treatment, the average grain size of the sample increasedobviously.The average hardness of the sample was increased to 114.65 HV from 46.55 HV, an increase of 146%. The tensile strength of the sample increased to 326.66MPafrom 143.97 MPa, but the elongationdecreased compared with that of the as-deposited state. The tensile test showed that the mechanical properties of TiB₂/Al-Si composites formed by electron beam rapid manufacture were isotropic before and after heat treatment.

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 884-891
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.884
• Online since: June 2021
• Authors: Qing Feng Yang, Cun Juan Xia*, Xian Feng Li, Hao Wei Wang, Nan Liao
• Keywords: Electron Beam Rapid Manufacture, Isotropic, Mechanical Properties, Microstructure, TiB₂/Al-Si Composites

References

[1] Q. Li, D. F. Wang, G. Q. Wang, X. Y. Zeng, Z. W. Luo, C. Q. Ma, L. Zhang, Wire and arc additive manufacturing of lightweight metal components in aeronautics and astronautics,Aeronaut. Manuf. Technol.61 (2018) 74-82 + 89.

[2] W.E. Frazier.Metaladditivemanufacturing: Areview. J.Mater. Eng. Perform. 23 (2014) 1917-1928.

[3] H. B. Geng, J. T. Xiong, D. Huang, J. L. Li, Z. H. Zhu, Research status and trend of wire and arc additive manufacturing technology, Weld. Joining, 11 (2015) 17-21.

[4] J. X. Zhang, A. H. Gao, Influence of Si content on microstructure and properties of 6063 aluminum alloy,Trans. Mater. Heat Treat. 29 (2008) 72-75.

[5] A. S. Haselhuhn,M. W. Buhr, B. Wijnen, P. G. Sanders, J. M. Pearce, Structure-property relationships of common aluminum weld alloys utilized as feedstock for GMAW-based 3D metal printing, Mater. Sci. Eng. A, 673 (2016) 511-523.

DOI: 10.1016/j.msea.2016.07.099

[6] S. K. Mohammad, F. Lin. Electron beam selective melting of Al-Cu-Mg alloys: Mechanical properties and microstructure characterization,The 18th Natl. Spec. Process. Acad. Conf. (2019).

[7] J. Yu, J. J. Wang, D. R. Ni, B. L. Xiao, Z. Y. Ma, X. L. Pan, Microstructure and mechanical properties of 2319 Al alloy produced by electron beam melt wire,Acta Metal.Sinica, 12 (2018) 1725-1734.

[8] J. Yu, J. J. Wang, D. R. Ni, B. L. Xiao, Z. Y. Ma, X. L. Pan, Microstructure and mechanical properties of 4043/4047 Al alloy by electron beam freeform fabrication, J.Netshape Form. Eng. 10 (2018) 74-81.

[9] T. T. Wang, Y. B. Zhang, Y. L. Xie,Status and development prospects of the wire arc additive manufacture technology,Electr. Welding Mach. 47 (2017) 60-64.

[10] Z. Liu, X. M. Liu, C. G. Chen, Y. L. Zhu.Effect of reinforcement on morphology of eutectic silicon in Al-Si alloy matrix composites, Foundry, 10 (1999) 16-18.

[11] Y. C. Ma, Particle reinforced metal matrix composites, Jiangsu Metall. 32 (2004) 54-57.

[12] L. J. Ai, Study on particle reinforced Al matrix composite, Lanzhou: Lanzhou University, (2007).

[13] S. Lakshmi, L.Lu, M. Gupta. In-situ preparation of TiB2 reinforced Al based composites, J. Mater. Process. Technol. 73 (1998) 160-166.

DOI: 10.1016/s0924-0136(97)00225-2

[14] R. J. Wu, The development status and application potential of metal matrix composites, Aeronaut. Manuf. Technol. 2001 (3): 19-22.

[15] Y. H. Zhang, D. X. Zeng, Preparation and application of particle reinforced metal matrix composites, J. Hubei Univ.Automot. Technol. 16 (2002) 24-28.

[16] Q. Lian, Y. Wu, H. W. Wang, N. H. Ma, Study on manufacturing processes and properties of TiB2 reinforced Al-Si composite by laser additive manufacturing, Hot Work. Technol. 46 (2017) 113-117.

[17] Y. T. Shi, Q. Wang, G. Zhao, Effect of gadolinium and holmium metamorphism on the cast structure of aluminum-silicon-magnesium alloys, Chin. Rare Earths, 34 (2013) 47-51.

[18] D. R. Uhlman, B. Chalmers, K. A. Jackson, Interaction between particles and a solid-liquid interface, J. Appl. Phys. 35 (1964) 2986.

[19] H. G. Zhu, H. Z. Wang, S. Q. Wu, α-Al2O3 and TiB2 particles reinforced aluminum matrix composites fabricated by means of exothermic dispersion, Acta Metall. Sin. 37 (2001) 321-324.

[20] P. L. SCHAFFER, L. ARNBERG, K. D. ARNE, Segregation of particles and its influence on the morphology of the eutectic silicon phase in Al-7wt.% Si alloys, Scr. Mater. 54 (2006) 677-682.

DOI: 10.1016/j.scriptamat.2005.10.016

[21] W. C. Li, Y. Z. Zou, J. M. Zeng, Influence of solution temperature and time on microstructure of ZL114A alloy, Mater. Mech. Eng. 32 (2008) 25-27.

[22] B. Y. Liu, Y. Sun, Effect of heat treatment on microstructure and performance of aluminum-silicon casting alloy,Automob. Technol. 4 (2004) 34−36 + 39.

[23] Y. L. Wang, J. B. Zhang, J. F. Wang, Effect of solution heat treatment on silicon phase of eutectic Al-Si alloy, Light Alloy Fabr. Technol.39 (2011) 47-51.

[24] V. P. SHIKOLAEV, Heat treatment of cast alloy AK18 pistons, Met. Sci. Heat Treat.29 (1987) 435-438.

DOI: 10.1007/bf00715881

[25] N. C. Liu, S. J. Liu, Z. X. Liu, Influences of modification and heat treatment on microstructure and mechanical properties of hypereutectic Al-20%Si alloy, Foundry Technol.30 (2009) 1022−1025.

[26] W. S. Hou, G. Chen, J. Xie, Y. T. Zhao, Y. H. Xu, Y. Yu, Effect of modification and heat treatment on microstructure and wear properties of Al-Si-Fe/Al-20Si composite, J.Funct. Mater.43 (2012) 3126-3130.
