Preparation and Thermal Properties of BN and LPSO Hybrid Reinforced Magnesium Matrix Composite

Abstract:

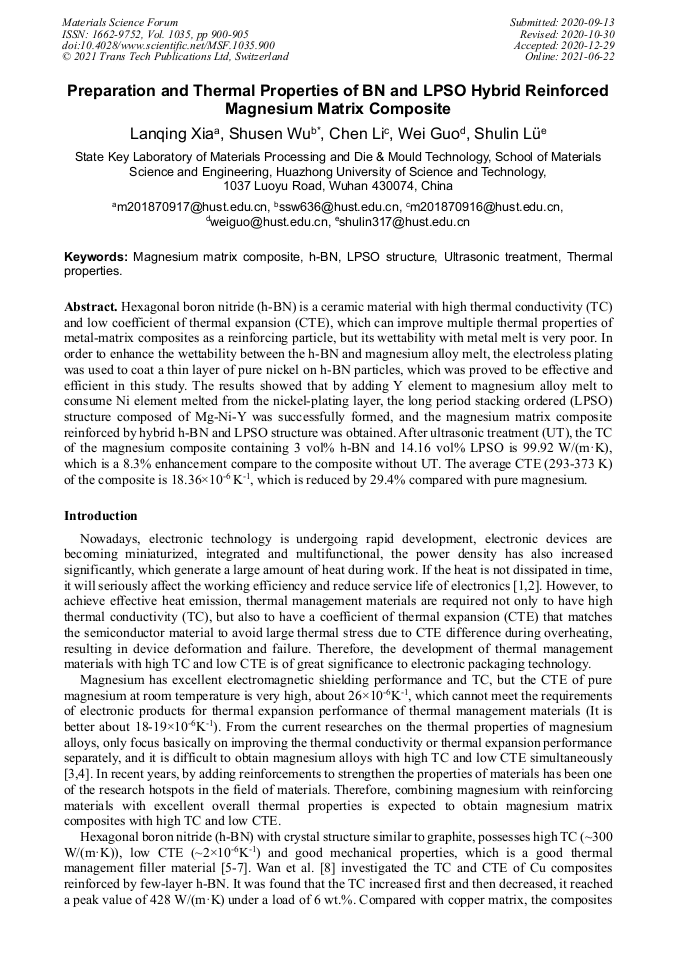

Hexagonal boron nitride (h-BN) is a ceramic material with high thermal conductivity (TC) and low coefficient of thermal expansion (CTE), which can improve multiple thermal properties of metal-matrix composites as a reinforcing particle, but its wettability with metal melt is very poor. In order to enhance the wettability between the h-BN and magnesium alloy melt, the electroless plating was used to coat a thin layer of pure nickel on h-BN particles, which was proved to be effective and efficient in this study. The results showed that by adding Y element to magnesium alloy melt to consume Ni element melted from the nickel-plating layer, the long period stacking ordered (LPSO) structure composed of Mg-Ni-Y was successfully formed, and the magnesium matrix composite reinforced by hybrid h-BN and LPSO structure was obtained. After ultrasonic treatment (UT), the TC of the magnesium composite containing 3 vol% h-BN and 14.16 vol% LPSO is 99.92 W/(m·K), which is a 8.3% enhancement compare to the composite without UT. The average CTE (293-373 K) of the composite is 18.36×10^-6 K^-1, which is reduced by 29.4% compared with pure magnesium.

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 900-905
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.900
• Online since: June 2021
• Authors: Lan Qing Xia, Shu Sen Wu*, Chen Li, Wei Guo, Shu Lin Lü
• Keywords: h-BN, LPSO Structure, Magnesium Matrix Composite, Thermal Properties, Ultrasonic Treatment

References

[1] A.L. Moore, L. Shi. Emerging challenges and materials for thermal management of electronics. Materials Today. 2014, 17 (4): 163-174.

DOI: 10.1016/j.mattod.2014.04.003

[2] L.H. Wang, J.W. Li, H.L. Zhong, et al. Enhanced thermal conductivity in Cu/diamond composites by tailoring the thickness of interfacial TiC layer. Compos Part A: Appl Sci Manufac. 2018, 113: 76-82.

DOI: 10.1016/j.compositesa.2018.07.023

[3] T. Ying, M.Y. Zheng, Z.T. Li, et al. Thermal conductivity of as-cast and as-extruded binary Mg-Zn alloys. J Alloys Compd. 2015, 621: 250-255.

DOI: 10.1016/j.jallcom.2014.09.199

[4] T. Guo, X. Zhou, L.Q. xia, et al. Effects of Si content and Ca modification on microstructure and thermal expansion property of Mg-Si alloys. Mater Chem Phys. 2020, 253.

DOI: 10.1016/j.matchemphys.2020.123260

[5] A. Lipp, K.A. Schwetz. K. Hunold. Hexagonal boron nitride: fabrication, properties and applications. J Eur Ceram Soc. 1989, 5: 3-9.

[6] B.H. Xie, X. Huang, G.J. Zhang. High thermal conductive polyvinyl alcohol composites with hexagonal boron nitride microplatelets as fillers. Compos Sci Technol. 2013, 85: 98-103.

DOI: 10.1016/j.compscitech.2013.06.010

[7] K. Kim, M. Kim, Y. Hwang, et al. Chemically modified boron nitride-epoxy terminated dimethylsiloxane composite for improving the thermal conductivity. Ceram Int. 2014, 40(1): 2047-2056.

DOI: 10.1016/j.ceramint.2013.07.117

[8] D.Q. Wan, X.Z. Wu, W. Zhang, et al. Thermal conductivity and thermal expansion of few-layer h-BN/Cu composites. Mater Res Bull. 2019, 120.

DOI: 10.1016/j.materresbull.2019.110606

[9] Y. Huang, Y. Su, X. Guo, et al. Fabrication and thermal conductivity of copper coated graphite film/aluminum composites for effective thermal management, J Alloy Comp. 2017, 711: 22-30.

DOI: 10.1016/j.jallcom.2017.03.233

[10] N. Yasuda, S. Kimura. Measurement of thermal expansion coefficient of 18R-synchronized long-period stacking ordered magnesium alloy. Mater Trans. 2016, 57(6): 1010-1013.

DOI: 10.2320/matertrans.m2016078

[11] A. Inoue, Y. Kawamura, M. Matsushita, et al. Novel hexagonal structure and ultrahigh strength of magnesium solid solution in the Mg-Zn-Y system. J Mater Res. 2001, 16(7): 1894-1900.

DOI: 10.1557/jmr.2001.0260

[12] X. Yang, S.S. Wu, et al. Effects of Ni levels on microstructure and mechanical properties of Mg-Ni-Y alloy reinforced with LPSO structure. J Alloy Comp. 2017, 726: 276-283.

DOI: 10.1016/j.jallcom.2017.08.003

[13] M. Yamasaki, Y. Kawamura. Thermal diffusivity and thermal conductivity of Mg-Zn-rare earth element alloys with long-period stacking ordered phase. Scripta Mater. 2009, 60(4): 264-267.

DOI: 10.1016/j.scriptamat.2008.10.022

[14] L.P. Zhong, J. Peng, S. Sun, et al. Microstructure and thermal conductivity of as-cast and as-solutionized Mg-Rare Earth binary alloys. J Mater Sci Technol. 2017, 33: 1240-1248.

DOI: 10.1016/j.jmst.2016.08.026
