Changing the Sizes of Details Made of Aluminum Alloys during Microarc Oxidation Process

Abstract:

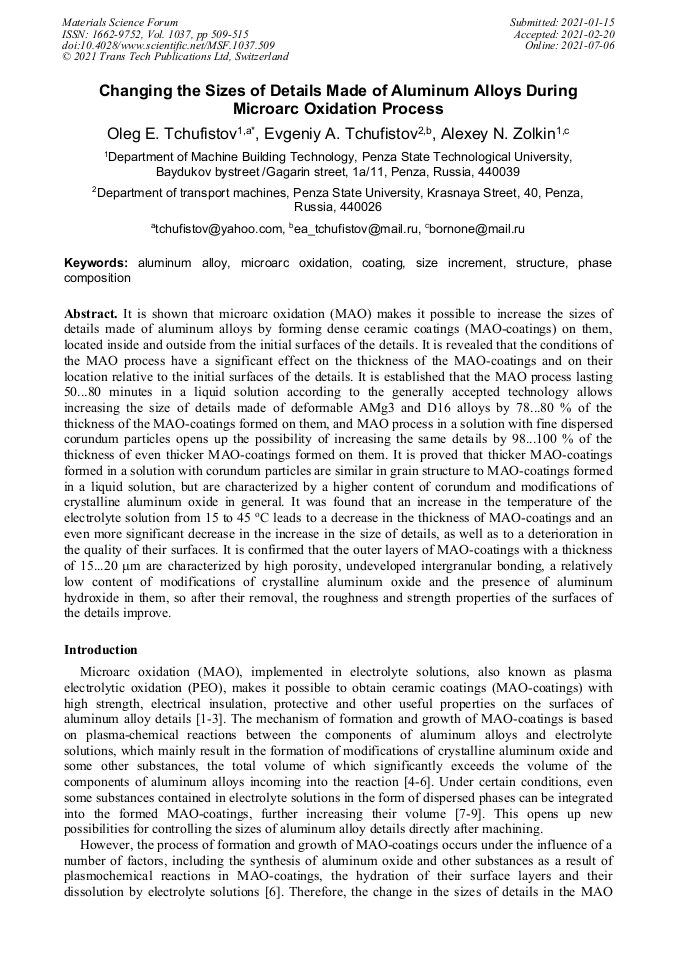

It is shown that microarc oxidation (MAO) makes it possible to increase the size of aluminum alloy details by forming dense ceramic coatings (MAO-coatings) on them. Found that MAO-process a duration of 50...80 minutes in a liquid solution according to conventional technology allows you to increase the size of the details made of deformable alloy AMg3 and D16 by 78...80 % of the thickness formed on them MAO-coating and MAO-process in solution of corundum particles opens the possibility of increasing the same details by 98...100 % of the thickness formed on them more thick MAO coating. Revealed that increasing solution temperature from 15 to 45 оС leads to a reduction in the thickness of MAO coating and an even more significant reduction in growth dimensions, as well as to reduce the quality of their surfaces. It is shown that the removal of the outer layers of MAO coatings to a thickness of 20 ... 25 μm by grinding contributes to a significant reduction in the roughness of the surfaces of details. It is confirmed that MAO coatings obtained in liquid solution and in solution with corundum particles have a similar mainly polycrystalline structure, but MAO coatings obtained in solution with corundum particles differ in greater thickness and higher corundum content (α-Al₂O₃). It is established that the outer layers of MAO coatings are characterized by a relatively low content of modifications of crystalline aluminum oxide, so after their removal, the strength properties of the surfaces of details also improve. The principal possibility of increasing the size of details made of deformable aluminum alloys by 150 μm with ensuring high quality of their surfaces is proved.

• Periodical: Materials Science Forum (Volume 1037)
• Pages: 509-515
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1037.509
• Online since: July 2021
• Authors: Oleg Tchufistov*, Evgeniy A. Tchufistov, Alexey N. Zolkin
• Keywords: Aluminum Alloy, Coating, Microarc Oxidation, Phase Composition, Size Increment, Structure

References

[1] G.A Markov, M.K. Mironova, O.G. Potapova, Structure of anodic films formed by the microarc oxidation of aluminum, J. Inorg. Mat. 19 (1983) 1000.

[2] V.N. Malyshev, G.A Markov, V.A. Fedorov, A.A. Petrosyants, O.P. Terleeva, Features of the structure and properties of coatings applied by the method of microarc oxidation, J. Chem. Petrol. Eng. 20 (1984) 41.

DOI: 10.1007/bf01154982

[3] V.N. Malyshev, Coating formation by anodic-cathodic microarc oxidation, J. Protect. Met. 32 (1996) 607-611.

[4] S.-G. Xin, L.-X. Song, R.-G. Zhao, X. Hu, Composition and thermal properties of the coating containing mullite and alumina, Mat. Chem. Phys. 97 (2006) 132-136.

DOI: 10.1016/j.matchemphys.2005.07.073

[5] A. Sharma, Y.-J. Jang, J.P. Jung, Effect of KOH to Na2SiO3 ratio on microstructure and hardness of plasma electrolytic oxidation coatings on 6061 Alloy, J. Mater. Eng. Perf. 26 (2017) 5032-5042.

DOI: 10.1007/s11665-017-2916-z

[6] O.E. Сhufistov, E.A. Сhufistov, V.P. Artemiev, Technology, structure and properties of coatings, formed by anodic oxidation methods on aluminum and its alloys, J. Non-Ferr. Met. 2 (2010) 37-40.

[7] O.E. Tchufistov, E.A. Tchufistov, Formation of ceramic MAO-coatings on details from aluminum alloys in solutions with dispersed phase of corundum, J. Mat. Tod. Proc. 19 (2019) 2013-2017.

DOI: 10.1016/j.matpr.2019.07.063

[8] G.-H. Lv, H. Chen, W.-C. Gu, W.-R. Feng, L. Li, E.-W. Niu, X.-H. Zhang, S.-Z. Yang, Effects of graphite additives in electrolytes on the microstructure and corrosion resistance of alumina PEO coatings, J. Curr. Appl. Phys. 9 (2009) 324-328.

DOI: 10.1016/j.cap.2008.03.001

[9] H.X. Li, R.G. Song, Effects of nano-additive TiO2 on performance of micro-arc oxidation coatings formed on 6063 aluminum alloy, Trans. Nonferr. J. Met. Soc. China, 23 (2013) 406-412.

DOI: 10.1016/s1003-6326(13)62477-2

[10] O.K. Kolerov, V.G. Skryabin, M.F. Kalyshenko, A.N. Logvinov, V.D. Yushin, On X-ray diffractometric study of the fine structure of polycrystals, J. Zavod. Lab. 51 (1985) 46-48.
