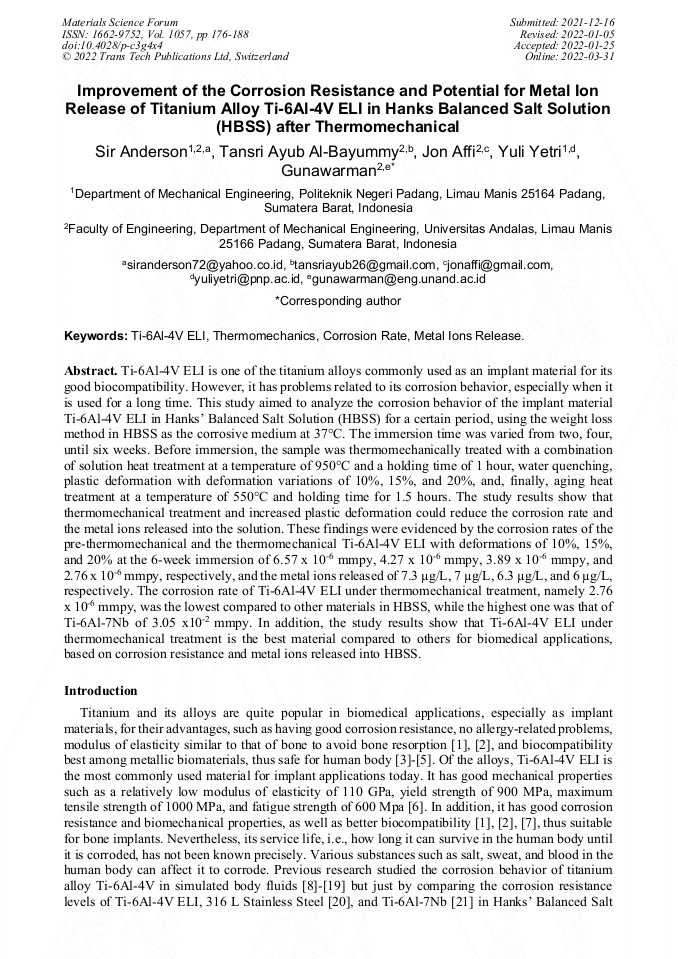

Improvement of the Corrosion Resistance and Potential for Metal Ion Release of Titanium Alloy Ti-6Al-4V ELI in Hanks Balanced Salt Solution (HBSS) after Thermomechanical

Abstract:

Ti-6Al-4V ELI is one of the titanium alloys commonly used as an implant material for its good biocompatibility. However, it has problems related to its corrosion behavior, especially when it is used for a long time. This study aimed to analyze the corrosion behavior of the implant material Ti-6Al-4V ELI in Hanks’ Balanced Salt Solution (HBSS) for a certain period, using the weight loss method in HBSS as the corrosive medium at 37°C. The immersion time was varied from two, four, until six weeks. Before immersion, the sample was thermomechanically treated with a combination of solution heat treatment at a temperature of 950°C and a holding time of 1 hour, water quenching, plastic deformation with deformation variations of 10%, 15%, and 20%, and, finally, aging heat treatment at a temperature of 550°C and holding time for 1.5 hours. The study results show that thermomechanical treatment and increased plastic deformation could reduce the corrosion rate and the metal ions released into the solution. These findings were evidenced by the corrosion rates of the pre-thermomechanical and the thermomechanical Ti-6Al-4V ELI with deformations of 10%, 15%, and 20% at the 6-week immersion of 6.57 x 10^-6 mmpy, 4.27 x 10^-6 mmpy, 3.89 x 10^-6 mmpy, and 2.76 x 10^-6 mmpy, respectively, and the metal ions released of 7.3 μg/L, 7 μg/L, 6.3 μg/L, and 6 μg/L, respectively. The corrosion rate of Ti-6Al-4V ELI under thermomechanical treatment, namely 2.76 x 10^-6 mmpy, was the lowest compared to other materials in HBSS, while the highest one was that of Ti-6Al-7Nb of 3.05 x10^-2 mmpy. In addition, the study results show that Ti-6Al-4V ELI under thermomechanical treatment is the best material compared to others for biomedical applications, based on corrosion resistance and metal ions released into HBSS.

• Periodical: Materials Science Forum (Volume 1057)
• Pages: 176-188
• DOI: https://doi.org/10.4028/p-c3g4x4
• Online since: March 2022
• Authors: Sir Anderson, Tansri Ayub Al-Bayummy, Jon Affi, Yuli Yetri, Gunawarman Gunawarman*
• Keywords: Corrosion Rate, Metal Ions Release, Thermomechanics, Ti-6Al-4V ELI

References

[1] A. Ajiz, Gunawarman, and J. Affi, The effects of short-time solution treatment and short-time aging on mechanical properties of Ti-6Al-4V for orthopaedic applications,, Int. J. Adv. Sci. Eng. Inf. Technol., vol. 5, no. 4, p.329–334, 2015,.

DOI: 10.18517/ijaseit.5.4.556

[2] M. Niinomi, D. Eylon, S. Fujishiro, and C. Ouchi, Effect of b Phase Stability at Room Temperature on Mechanical Properties in b -Rich a ؉ b Type Ti – 4 . 5Al – 3V – 2Mo – 2Fe Alloy,, vol. 42, no. 2, p.191–199, (2002).

DOI: 10.2355/isijinternational.42.191

[3] M. Niinomi, Biologically and Mechanically Biocompatible Titanium Alloys Ti-6Al-4V ELI,, vol. 49, no. 10, p.2170–2178, 2008,.

DOI: 10.2320/matertrans.l-mra2008828

[4] M. Niinomi, Recent research and development in titanium alloys for biomedical applications and healthcare goods,, Sci. Technol. Adv. Mater., vol. 4, no. 5, p.445–454, 2003,.

[5] Y. Xu, Y. Lu, J. Liang, and R. D. Sisson, Microstructure and corrosion behaviour of additively manufactured Ti–6Al–4V with various post-heat treatments,, Mater. Sci. Technol. (United Kingdom), vol. 35, no. 1, p.89–97, 2019,.

DOI: 10.1080/02670836.2018.1542052

[6] M. Abdel-Hady Gepreel and M. Niinomi, Biocompatibility of Ti-alloys for long-term implantation,, J. Mech. Behav. Biomed. Mater., vol. 20, p.407–415, 2013,.

DOI: 10.1016/j.jmbbm.2012.11.014

[7] M. Özcan and C. Hämmerle, Titanium as a reconstruction and implant material in dentistry: Advantages and pitfalls,, Materials (Basel)., vol. 5, no. 9, p.1528–1545, 2012,.

DOI: 10.3390/ma5091528

[8] J. Yang, H. Yang, H. Yu, Z. Wang, and X. Zeng, Corrosion Behavior of Additive Manufactured Ti-6Al-4V Alloy in NaCl Solution,, Metall. Mater. Trans. A Phys. Metall. Mater. Sci., vol. 48, no. 7, p.3583–3593, 2017,.

DOI: 10.1007/s11661-017-4087-9

[9] B. Wu, Z. Pan, S. Li, D. Cuiuri, D. Ding, and H. Li, The anisotropic corrosion behaviour of wire arc additive manufactured Ti-6Al-4V alloy in 3.5% NaCl solution,, Corros. Sci., vol. 137, no. August 2017, p.176–183, 2018,.

DOI: 10.1016/j.corsci.2018.03.047

[10] M. Sarraf et al., In vitro bioactivity and corrosion resistance enhancement of Ti-6Al-4V by highly ordered TiO 2 nanotube arrays,, J. Aust. Ceram. Soc., vol. 55, no. 1, p.187–200, 2019,.

DOI: 10.1007/s41779-018-0224-1

[11] J. Lu, W. Zhang, W. Huo, Y. Zhao, W. Cui, and Y. Zhang, Electrochemical corrosion behavior and mechanical properties of nanocrystalline Ti-6Al-4V Alloy induced by sliding friction treatment,, Materials (Basel)., vol. 12, no. 5, 2019,.

DOI: 10.3390/ma12050760

[12] S. Carquigny, J. Takadoum, and S. Ivanescu, Corrosion and tribocorrosion study of 316L steel, Ti–6Al–4V and Ti–10Zr–10Nb–5Ta,, Tribol. - Mater. Surfaces Interfaces, vol. 13, no. 2, p.112–119, 2019,.

DOI: 10.1080/17515831.2019.1596625

[13] L. O. Berbel, E. D. P. Banczek, I. K. Karoussis, G. A. Kotsakis, and I. Costa, Correction: Determinants of corrosion resistance of Ti-6Al-4V alloy dental implants in an in Vitro model of peri-implant inflammation (PLoS ONE (2019)14:1(e0210530) Doi:10.1371/journal.pone.0210530),, PLoS One, vol. 14, no. 5, p.1–17, 2019,.

DOI: 10.1371/journal.pone.0217671

[14] Q. Zhang, B. Duan, Z. Zhang, J. Wang, and C. Si, Effect of ultrasonic shot peening on microstructure evolution and corrosion resistance of selective laser melted Ti-6Al-4V alloy,, J. Mater. Res. Technol., vol. 11, p.1090–1099, 2021,.

DOI: 10.1016/j.jmrt.2021.01.091

[15] S. Kumar, V. Pandey, K. Chattopadhyay, and V. Singh, Surface Nanocrystallization Induced by Ultrasonic Shot Peening and Its Effect on Corrosion Resistance of Ti–6Al–4V Alloy,, Trans. Indian Inst. Met., vol. 72, no. 3, p.789–792, 2019,.

DOI: 10.1007/s12666-018-1531-5

[16] J. Fojt et al., Corrosion behaviour and cell interaction of Ti-6Al-4V alloy prepared by two techniques of 3D printing,, Mater. Sci. Eng. C, vol. 93, no. January, p.911–920, 2018,.

DOI: 10.1016/j.msec.2018.08.066

[17] Y. Xu, J. Wang, X. Zhang, P. Wang, J. Shi, and F. Huo, Corrosion behaviour of Ti-6Al-4V alloy as dental implant containing fluoride ions,, Int. J. Electrochem. Sci., vol. 12, no. 11, p.10308–10316, 2017,.

DOI: 10.20964/2017.11.04

[18] A. C. Hee et al., Corrosion behaviour and microstructure of tantalum film on Ti6Al4V substrate by filtered cathodic vacuum arc deposition,, Thin Solid Films, vol. 636, p.54–62, 2017,.

DOI: 10.1016/j.tsf.2017.05.030

[19] O. Heintz, V. Vignal, H. Krawiec, and J. Loch, Passivity and corrosion behaviour of Ti-10Mo-4Zr and Ti-6Al-4V alloys after long-term ageing in Ringer's solution at 37 °C,, J. Solid State Electrochem., vol. 21, no. 5, p.1445–1455, 2017,.

DOI: 10.1007/s10008-017-3506-6

[20] S. Gnanavel, S. Ponnusamy, L. Mohan, and C. Muthamizhchelvan, In Vitro Corrosion Behaviour of Ti–6Al–4V and 316L Stainless Steel Alloys for Biomedical Implant Applications,, J. Bio- Tribo-Corrosion, vol. 4, no. 1, p.4–11, 2018,.

DOI: 10.1007/s40735-017-0118-8

[21] S. Tamilselvi, V. Raman, and N. Rajendran, Corrosion behaviour of Ti-6Al-7Nb and Ti-6Al-4V ELI alloys in the simulated body fluid solution by electrochemical impedance spectroscopy,, Electrochim. Acta, vol. 52, no. 3, p.839–846, 2006,.

DOI: 10.1016/j.electacta.2006.06.018

[22] S. Anderson, Annisa, J. Affi, Y. Yetri, and G. Gunawarman, The Effect of Aging Treatment on Mechanical Properties and Microstructures of Ti-12Cr in Ortodontic Applications,, IOP Conf. Ser. Mater. Sci. Eng., vol. 846, no. 1, 2020,.

DOI: 10.1088/1757-899x/846/1/012066

[23] M. Motyka and J. Sieniawski, The influence of initial plastic deformation on microstructure and hot plasticity of α+β titanium alloys,, Arch. Mater. Sci. Eng., vol. 41, no. 2, p.95–103, (2010).

[24] T. Akahori, M. Niinomi, H. Fukui, and A. Suzuki, Fatigue, fretting fatigue and corrosion characteristics of biocompatible beta type titanium alloy conducted with various thermo-mechanical treatments,, Mater. Trans., vol. 45, no. 5, p.1540–1548, 2004,.

DOI: 10.2320/matertrans.45.1540

[25] P. A. Machfudzoh, M. N. Amin, L. Sandra, and D. Putri, Efektivitas Ekstrak Daun Belimbing Wuluh sebagai Bahan Inhibitor Korosi pada Kawat Ortodonsi Berbahan Dasar Nikel-Titanium ( Effectiveness of Bilimbi Leaves Extract as Corrosion Inhibitor on Nickel-Titanium Orthodontic Wire ),, Artik. Ilm. Has. Penelit. Mhs., no. kelompok 3, p.1–6, (2014).

DOI: 10.20473/cdj.v6i2.2016.82-86

[26] M. F. Sfondrini et al., Chromium release from new stainless steel, recycled and nickel-free orthodontic brackets,, Angle Orthod., vol. 79, no. 2, p.361–367, 2008,.

DOI: 10.2319/042108-223.1

[27] T. Hanawa, Metal ion release from metal implants,, Mater. Sci. Eng. C, vol. 24, no. 6-8 SPEC. ISS., p.745–752, 2004,.

[28] T. Albrektsson et al., The interface zone of inorganic implants In vivo: Titanium implants in bone,, Ann. Biomed. Eng., vol. 11, no. 1, p.1–27, 1983,.

DOI: 10.1007/bf02363944

[29] H. G. French, S. D. Cook, and R. J. Haddad, Correlation of tissue reaction to corrosion in osteosynthetic devices,, J. Biomed. Mater. Res., vol. 18, no. 7, p.817–828, 1984,.

DOI: 10.1002/jbm.820180712

[30] M. Fellah, M. Labaiz, O. Assala, L. Dekhil, and A. Iost, Tribological behavior of biomaterials for total hip prosthesis,, Trends Biomater. Artif. Organs, vol. 29, no. 1, p.22–30, (2015).

DOI: 10.1051/mattech/2014027

[31] H. Fajri, J. Affi, M. Niinomi, and H. Nur, CORROSION BEHAVIO UR OF TITANIUM β TYPE Ti -12Cr in 3 % NaCl SOLUTION.,.

DOI: 10.18517/ijaseit.9.5.9380

[32] S. Ardhy and J. Affi, PERILAKU KOROSI TITANIUM DALAM LARUTAN MODIFIKASI SALIVA,, vol. 6, no. 2, p.585–593, (2015).

[33] M. Niinomi et al., Development of Low Rigidity β -type Titanium Alloy for Biomedical Applications,, vol. 43, no. 12, p.2970–2977, (2002).

DOI: 10.2320/matertrans.43.2970

[34] and E. W. C. (1994) Boyer, R., G. Welsch, Materials Properties Handbook: Titanium Alloys. ASM International, 65–74.

[35] S. Anderson, A. Satria, P. Amin, J. Affi, and Y. Yetri, Corrosion Characteristics Of Titanium TNTZ And Ti-6Al-4V ELI In Artificial Saliva Solution At Human Body Temperature,, no. 04, p.240–245, (2021).

[36] A. Choubey, B. Basu, and R. Balasubramaniam, Electrochemical behavior of intermetallic Ti3Al-based alloys in simulated human body fluid environment,, Intermetallics, vol. 12, no. 6, p.679–682, 2004,.

DOI: 10.1016/j.intermet.2004.03.012

[37] S. Gokul Lakshmi, V. Raman, N. Rajendran, M. A. K. Babi, and D. Arivuoli, In vitro corrosion behaviour of plasma nitrided Ti-6Al-7Nb orthopaedic alloy in Hanks solution,, Sci. Technol. Adv. Mater., vol. 4, no. 5, p.415–418, 2003,.

DOI: 10.1016/j.stam.2003.09.005

[38] T. Trnava, S. Republic, and B. Polytechnic, The influence of heat treatment on the microstructure of the casted ti6al4v titanium alloy,, Mater. World, vol. 2, p.1–6, (2007).

[39] M. Engineers and S. A. Scientific, CORROSION STUDY OF METALLIC BIOMATERIALS IN,, (2011).

[40] V. Raman, S. Nagarajan, and N. Rajendran, Electrochemical impedance spectroscopic characterisation of passive film formed over β Ti-29Nb-13Ta-4.6Zr alloy,, Electrochem. commun., vol. 8, no. 8, p.1309–1314, 2006,.

DOI: 10.1016/j.elecom.2006.06.004

[41] G. Gunawarman, Konsep dan Teori Metalurgi Fisik. Yogyakarta (ID): Andi Offset. (2013).

[42] R. K. Gupta, V. A. Kumar, C. Mathew, and G. S. Rao, Strain hardening of Titanium alloy Ti6Al4V sheets with prior heat treatment and cold working,, Mater. Sci. Eng. A, vol. 662, p.537–550, 2016,.

DOI: 10.1016/j.msea.2016.03.094
