Mechanical and Tribology Properties of Electrodeposited Ni-TiN/Si₃N₄ Composite Coatings

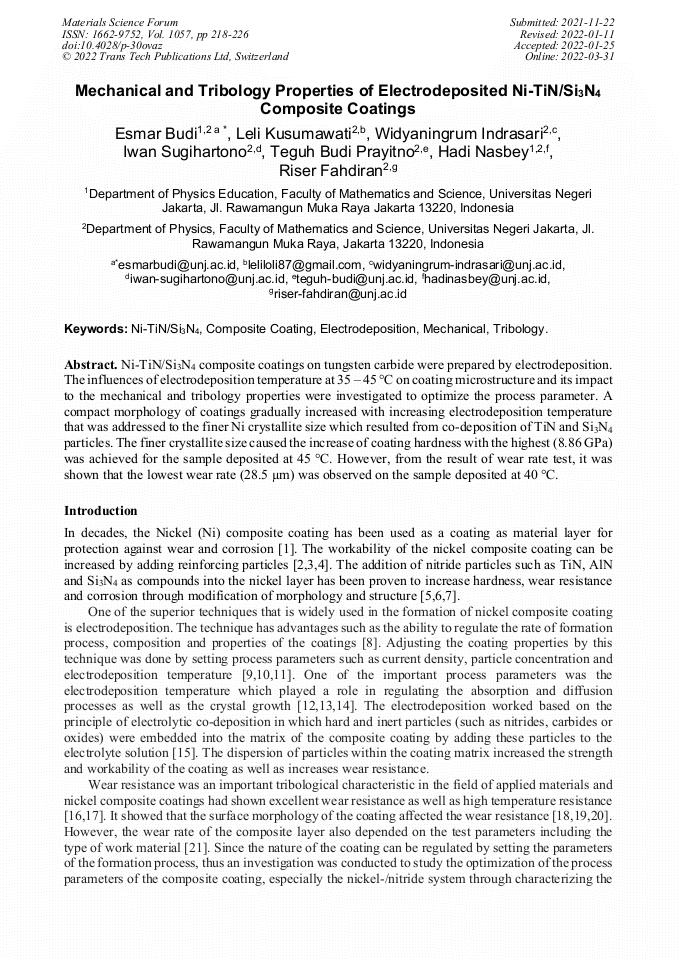

Article Preview

Abstract:

Ni-TiN/Si₃N₄ composite coatings on tungsten carbide were prepared by electrodeposition. The influences of electrodeposition temperature at 35 – 45 °C on coating microstructure and its impact to the mechanical and tribology properties were investigated to optimize the process parameter. A compact morphology of coatings gradually increased with increasing electrodeposition temperature that was addressed to the finer Ni crystallite size which resulted from co-deposition of TiN and Si₃N₄ particles. The finer crystallite size caused the increase of coating hardness with the highest (8.86 GPa) was achieved for the sample deposited at 45 °C. However, from the result of wear rate test, it was shown that the lowest wear rate (28.5 μm) was observed on the sample deposited at 40 °C.

You might also be interested in these eBooks

Broad Exposure to Science and Technology II

Info:

Periodical:

Materials Science Forum (Volume 1057)

Pages:

218-226

DOI:

https://doi.org/10.4028/p-30ovaz

Citation:

Cite this paper

Online since:

March 2022

Authors:

Esmar Budi*, Leli Kusumawati, Widyaningrum Indrasari, Iwan Sugihartono, Teguh Budi Prayitno, Hadi Nasbey, Riser Fahdiran

Keywords:

Composite Coating, Electrodeposition, Mechanical, Ni-TiN/Si₃N₄, Tribology

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2022 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author
