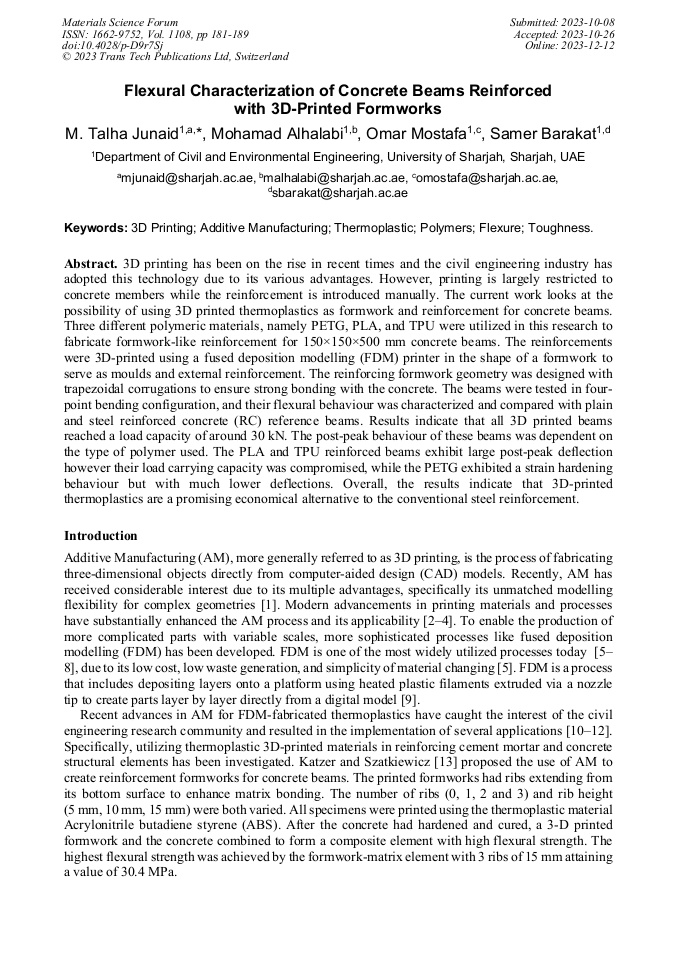

Flexural Characterization of Concrete Beams Reinforced with 3D-Printed Formworks

Abstract:

3D printing has been on the rise in recent times and the civil engineering industry has adopted this technology due to its various advantages. However, printing is largely restricted to concrete members while the reinforcement is introduced manually. The current work looks at the possibility of using 3D printed thermoplastics as formwork and reinforcement for concrete beams. Three different polymeric materials, namely PETG, PLA, and TPU were utilized in this research to fabricate formwork-like reinforcement for 150×150×500 mm concrete beams. The reinforcements were 3D-printed using a fused deposition modelling (FDM) printer in the shape of a formwork to serve as moulds and external reinforcement. The reinforcing formwork geometry was designed with trapezoidal corrugations to ensure strong bonding with the concrete. The beams were tested in four-point bending configuration, and their flexural behaviour was characterized and compared with plain and steel reinforced concrete (RC) reference beams. Results indicate that all 3D printed beams reached a load capacity of around 30 kN. The post-peak behaviour of these beams was dependent on the type of polymer used. The PLA and TPU reinforced beams exhibit large post-peak deflection however their load carrying capacity was compromised, while the PETG exhibited a strain hardening behaviour but with much lower deflections. Overall, the results indicate that 3D-printed thermoplastics are a promising economical alternative to the conventional steel reinforcement.

• Periodical: Materials Science Forum (Volume 1108)
• Pages: 181-189
• DOI: https://doi.org/10.4028/p-D9r7Sj
• Online since: December 2023
• Authors: M. Talha Junaid*, Mohamad Alhalabi, Omar Mostafa, Samer Barakat
• Keywords: 3D Printing, Additive Manufacturing, Flexure, Polymers, Thermoplastic, Toughness

References

[1] J. Kranz, D. Herzog, and C. Emmelmann, "Design guidelines for laser additive manufacturing of lightweight structures in TiAl6V4," J. Laser Appl. 27 (S1), S14001 (2015).

DOI: 10.2351/1.4885235

[2] R. T. L. Ferreira, I. C. Amatte, T. A. Dutra, and D. Bürger, "Experimental characterization and micrography of 3D printed PLA and PLA reinforced with short carbon fibers," Compos. Part B Eng. 124, 88–100 (2017).

DOI: 10.1016/j.compositesb.2017.05.013

[3] Z. Quan et al., "Printing direction dependence of mechanical behavior of additively manufactured 3D preforms and composites," Compos. Struct. 184, 917–923 (2018).

DOI: 10.1016/j.compstruct.2017.10.055

[4] A. D. Valino, J. R. C. Dizon, A. H. Espera, Q. Chen, J. Messman, and R. C. Advincula, "Advances in 3D printing of thermoplastic polymer composites and nanocomposites," Prog. Polym. Sci. 98, 101162 (2019).

DOI: 10.1016/j.progpolymsci.2019.101162

[5] C. S. Chua, C. K., Leong, K. F., & Lim, Rapid prototyping: principles and applications (with companion CD-ROM). World Scientific Publishing Company. (2010).

DOI: 10.1142/6665

[6] L. Novakova-Marcincinova, J. Novak-Marcincin, J. Barna, and J. Torok, "Special materials used in FDM rapid prototyping technology application," in IEEE 16th International Conference on Intelligent Engineering Systems, (INES), p.73–76, IEEE (2012).

DOI: 10.1109/INES.2012.6249805

[7] P. Dudek, "FDM 3D printing technology in manufacturing composite elements‏," Arch. Metall. Mater. 48 (4), 1415–1418 (2013).

DOI: 10.2478/amm-2013-0186

[8] H. L. Tekinalp et al., "Highly oriented carbon fiber-polymer composites via additive manufacturing," Compos. Sci. Technol. 105, 144–150 (2014).

DOI: 10.1016/j.compscitech.2014.10.009

[9] S. H. Masood, "Advances in Fused Deposition Modeling," Compr. Mater. 10, 69–91 (2014).

[10] P. F. Yuan, Z. Chen, and L. Zhang, "Form finding for 3D printed pedestrian bridges," in CAADRIA 2018 - 23rd International Conference on Computer-Aided Architectural Design Research in Asia: Learning, Prototyping and Adapting, 17–19 (2018).

DOI: 10.52842/conf.caadria.2018.1.225

[11] M. G. Arab, M. Omar, E. Alotaibi, O. Mostafa, M. Naeem, and O. Badr, "Bio-Inspired 3D-Printed Honeycomb for Soil Reinforcement," Reston, VA Am. Soc. Civ. Eng., Geo-Congress 2020: Biogeotechnics, 262–271 (2020).

DOI: 10.1061/9780784482834.029

[12] J. Katzer and T. Szatkiewicz, "Effect of 3d printed spatial reinforcement on flexural characteristics of conventional mortar," Materials. 13(14), 3133 (2020).

DOI: 10.3390/ma13143133

[13] J. Katzer and T. Szatkiewicz, "Properties of concrete elements with 3-D printed formworks which substitute steel reinforcement," Constr. Build. Mater. 210, 157–161 (2019).

DOI: 10.1016/j.conbuildmat.2019.03.204

[14] I. Farina et al., "On the reinforcement of cement mortars through 3D printed polymeric and metallic fibers," Compos. Part B Eng. 90, 76–85 (2016).

DOI: 10.1016/j.compositesb.2015.12.006

[15] A. Shweiki, M. T. Junaid, and S. Barakat, "Flexural characteristics of mortar cement reinforced with 3D-printed polymer," World Congr. Civil, Struct. Environ. Eng., (2019).

DOI: 10.11159/icsect19.154

[16] B. Salazar, P. Aghdasi, I. D. Williams, C. P. Ostertag, and H. K. Taylor, "Polymer lattice-reinforcement for enhancing ductility of concrete," Mater. Des. 196, 109184 (2020).

DOI: 10.1016/j.matdes.2020.109184
