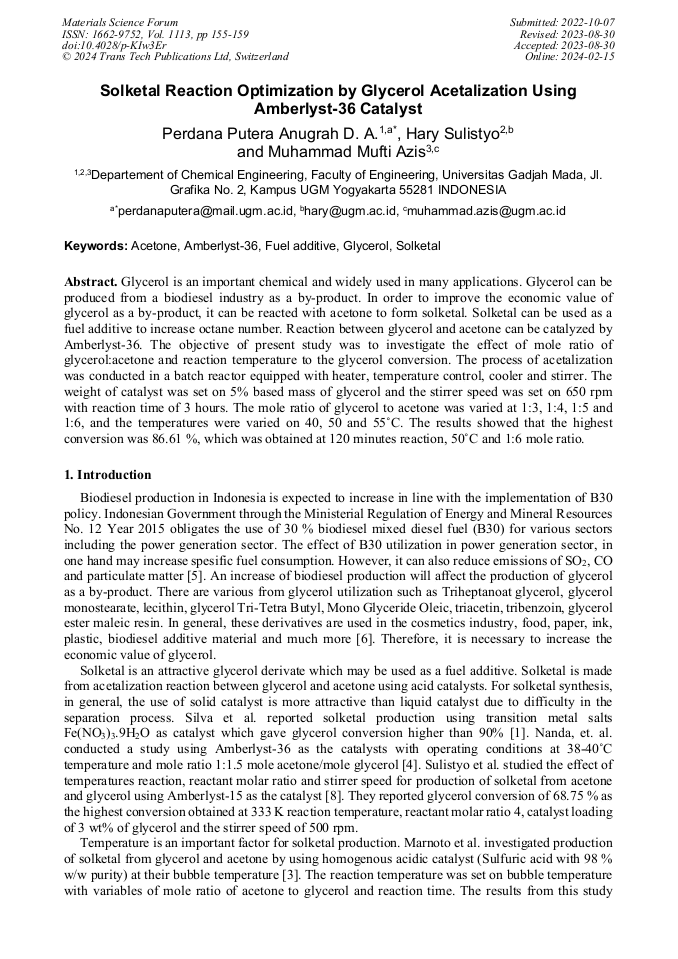

Solketal Reaction Optimization by Glycerol Acetalization Using Amberlyst-36 Catalyst

Abstract:

Glycerol is an important chemical and widely used in many applications. Glycerol can be produced from a biodiesel industry as a by-product. In order to improve the economic value of glycerol as a by-product, it can be reacted with acetone to form solketal. Solketal can be used as a fuel additive to increase octane number. Reaction between glycerol and acetone can be catalyzed by Amberlyst-36. The objective of present study was to investigate the effect of mole ratio of glycerol:acetone and reaction temperature to the glycerol conversion. The process of acetalization was conducted in a batch reactor equipped with heater, temperature control, cooler and stirrer. The weight of catalyst was set on 5% based mass of glycerol and the stirrer speed was set on 650 rpm with reaction time of 3 hours. The mole ratio of glycerol to acetone was varied at 1:3, 1:4, 1:5 and 1:6, and the temperatures were varied on 40, 50 and 55 °C. The results showed that the highest conversion was 86.61 %, which was obtained at 120 minutes reaction, 50 °C and 1:6 mole ratio.

• Periodical: Materials Science Forum (Volume 1113)
• Pages: 155-159
• DOI: https://doi.org/10.4028/p-KIw3Er
• Online since: February 2024
• Authors: Putera Anugrah Dhira Atmaja Perdana*, Hary Sulistyo, Muhammad Mufti Azis
• Keywords: Acetone, Amberlyst-36, Fuel Additive, Glycerol, Solketal

References

[1] da Silva, Marcio Jose, Alana Alves Rodrigues, and Patricia Fontes Pinheiro. "Solketal synthesis from glycerol and acetone in the presence of metal salts: a Lewis or Brønsted acid catalyzed reaction?." Fuel 276 (2020): 118164.

DOI: 10.1016/j.fuel.2020.118164

[2] Deutsch, J., Martin, A., & Lieske, H. (2007). Investigations on heterogeneously catalysed condensations of glycerol to cyclic acetals. Journal of catalysis, 245(2), 428-435.

DOI: 10.1016/j.jcat.2006.11.006

[3] Marnoto, Tjukup, and Muhamad Maulana Azimatun Nur. "Production of solketal (2, 2-Dimethyl-1, 3-dioxolane-4-methanol) from glycerol and acetone by using homogenous acidic catalyst at the boiling temperature (preliminarry study)." Journal of Physics: Conference Series. Vol. 1295. No. 1. IoP Publishing, 2019.

DOI: 10.1088/1742-6596/1295/1/012004

[4] Nanda, M. R., Zhang, Y., Yuan, Z., Qin, W., Ghaziaskar, H. S., & Xu, C. C. (2016). Catalytic conversion of glycerol for sustainable production of solketal as a fuel additive: A review. Renewable and Sustainable Energy Reviews, 56, 1022-1031.

DOI: 10.1016/j.rser.2015.12.008

[5] Nina, K. S., Suntoro, D., Al Irsyad, M. I., Srikandi, G. P., Khaldun, T., & Anggarani, R. (2021). Performance and emission effects of biodiesel 30%(B30) usage in oil-fired power plants and gas engine power plants. In IOP Conference Series: Earth and Environmental Science (Vol. 749, No. 1, p.012056). IOP Publishing.

DOI: 10.1088/1755-1315/749/1/012056

[6] Prasetyo, Ari Eko, Anggra Widhi, and W. Widayat. "Potensi gliserol dalam pembuatan turunan gliserol melalui proses esterifikasi." Jurnal Ilmu Lingkungan UNDIP 10.1 (2012): 26-31.

DOI: 10.14710/jil.10.1.26-31

[7] Sawali, F. D. I., Pengolahan Gliserol dengan Aseton menjadi Solketal Menggunakan Katalis Amberlite IR 120 Na dan Unjuk Kerjanya Sebagai Bioaditif terhadap Kinerja Mesin Diesel. Diss. Universitas Gadjah Mada, 2021.

[8] Sulistyo, H., Huda, E. N., Utami, T. S., Sediawan, W. B., Rahayu, S. S., & Azis, M. M. (2020). Solketal production by glycerol acetalization using amberlyst-15 catalyst. ASEAN Journal of Chemical Engineering, 20(1), 67-76.

DOI: 10.22146/ajche.52455
