Electrochemical Characterization of Battery-Supercapacitor Hybrid Based on Li₄Ti₅O₁₂and Ti₃C₂

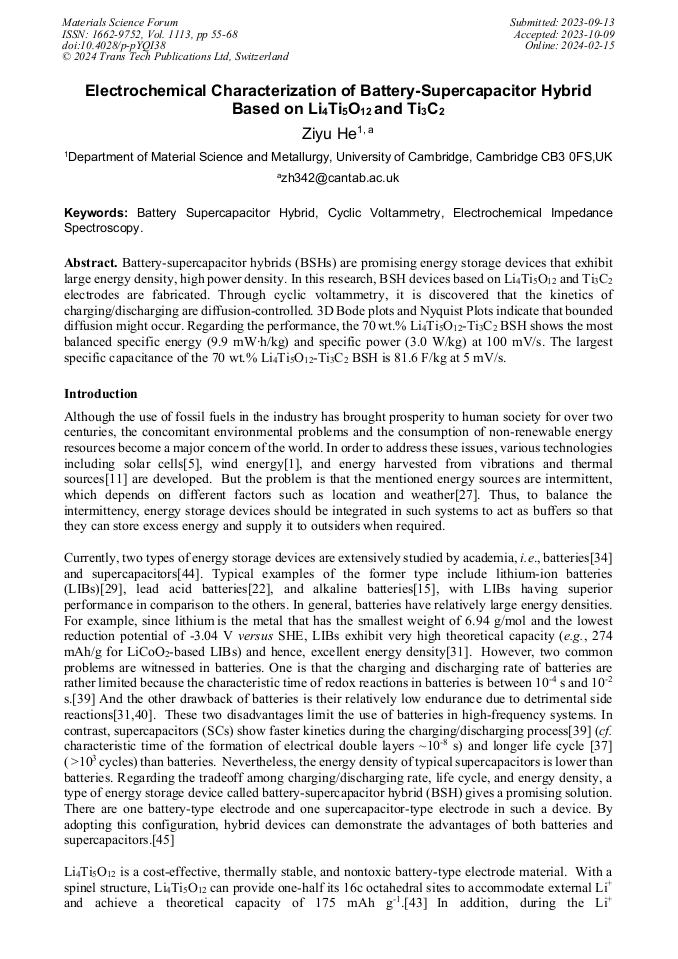

Article Preview

Abstract:

Battery-supercapacitor hybrids (BSHs) are promising energy storage devices that exhibit large energy density, high power density. In this research, BSH devices based on Li₄Ti₅O₁₂ and Ti₃C₂ electrodes are fabricated. Through cyclic voltammetry, it is discovered that the kinetics of charging/discharging are diffusion-controlled. 3D Bode plots and Nyquist Plots indicate that bounded diffusion might occur. Regarding the performance, the 70 wt.% Li₄Ti₅O₁₂-Ti₃C₂ BSH shows the most balanced specific energy (9.9 mW∙h/kg) and specific power (3.0 W/kg) at 100 mV/s. The largest specific capacitance of the 70 wt.% Li₄Ti₅O₁₂-Ti₃C₂ BSH is 81.6 F/kg at 5 mV/s.
