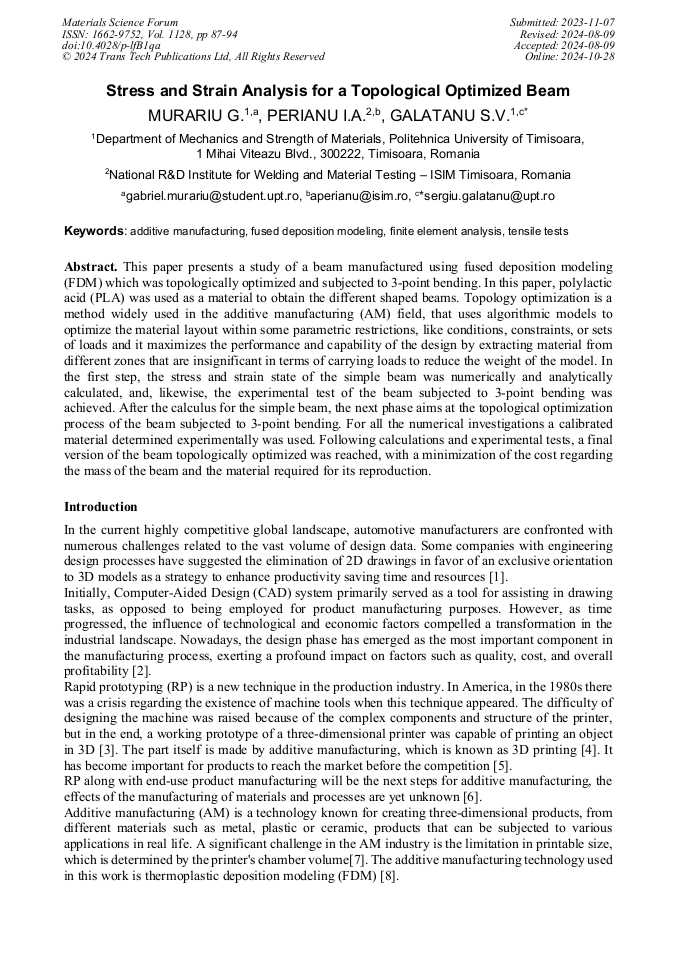

Stress and Strain Analysis for a Topological Optimized Beam

Abstract:

This paper presents a study of a beam manufactured using fused deposition modeling (FDM) which was topologically optimized and subjected to 3-point bending. In this paper polylactic acid (PLA) was used as a material in order to obtain the beams. Topology optimization is a method widely used in the additive manufacturing (AM) field, that uses algorithmic models to optimize the material layout within some parametric restrictions, like conditions, constraints, or sets of loads and it maximizes the performance and capability of the design by extracting material from different zones that are insignificant in terms of carrying loads to reduce the weight of the model. In the first step, the stress and strain state of the simple beam was numerically and analytically calculated, likewise, the experimental test of the beam subjected to 3-point bending was achieved. After the calculus for the simple beam, the next phase aims at the topological optimization process of the beam subjected to 3-point bending. For all the numerical investigations a calibrated material determined experimentally was used. Following calculations and experimental tests, a final version of the beam topologically optimized was reached, with a minimization of the cost regarding the mass of the beam and the material required for its reproduction.

• Periodical: Materials Science Forum (Volume 1128)
• Pages: 87-94
• DOI: https://doi.org/10.4028/p-lfB1qa
• Online since: October 2024
• Authors: Gabriel Murariu, Ion Aurel Perianu, Sergiu Valentin Galatanu*
• Keywords: Additive Manufacturing, Finite Element Analysis, Fused Deposition Modeling, Tensile Tests

References

[1] G. Gherghina, D. Tutunea, A. Dima and D.L. Popa: submitted to Applied Mechanics and Materials (2018)

[2] B.R. Hunde, A.D. Woldeyohannes, in: Future prospects of computer-aided design (CAD) – A review from the perspective of artificial intelligence (AI), extended reality, and 3D printing

DOI: 10.1016/j.rineng.2022.100478

[3] Rapid Prototyping Association of the Society of Manufacturing Engineers, International Technology Research Institute, 1997, European and Japanese Development, Rapid Prototyping in Europe and Japan

[4] Dr.U.V. Kongre, Dr.R.M. SherekarDevanshu, A. Bhagat: submitted to International Journal of Scientific Research in Science and Technology, (2023)

[5] D.C.K. Chua, K.F. Leong, C.S. Lim, in: Rapid Prototyping – principles and applications (World Scientific, Singapore 2010)

[6] D. Narsimhachary, M.K. Phani, in: Additive Manufacturing: Environmental Impact, and Future Perspective

[7] S. Hongyao, P. Lingnan, Q. Jun, in: Research on large-scale additive manufacturing based on multi-robot collaboration technology

[8] J. Tessa, G.P.R. Thies, L. Turner, L. Johanning: submitted to Rapid Prototyping Journal (2019)

[9] L. Marsavina, M.P. Mărghitaș, E. Vălean: submitted to Procedia Structural Integrity (2022)

[10] J. Ahmed, S.K. Varshney: submitted in: International Journal of Food Properties, Taylor & Francis Group LLC (2011)

[11] I. Antar, M. Othmani, K. Zarbane, M. el Oumami, Z. Beidouri, in: Topology optimization of a 3D part virtually printed by FDM

DOI: 10.5604/01.3001.0016.0289

[12] G.I. Rozvany, in: A critical review of established methods of structural topology optimization, Structural and Multidisciplinary Optimization

[13] D638–14; ASTM International Standard Test Method for Tensile Properties of Plastics. ASTM: West Conshohocken, PA, USA, (2014)

[14] Information on https://all3dp.com/2/prusaslicer-simply-explained/

[15] L. Marsavina, C. Valean, M.P. Marghitas, E. Linul, N. Razavi, F.Berto, R. Brighenti, in: Effect of the manufacturing parameters on the tensile and fracture properties of FDM 3D-printed PLA specimens

DOI: 10.1016/j.engfracmech.2022.108766

[16] Information on https://www.zwickroell.com/products/static-materials-testing-machines/ universal-testing-machines-for-static-applications/proline/

[17] Information on https://www.dantecdynamics.com/solutions/digital-image-correlation-dic /flexdic/
