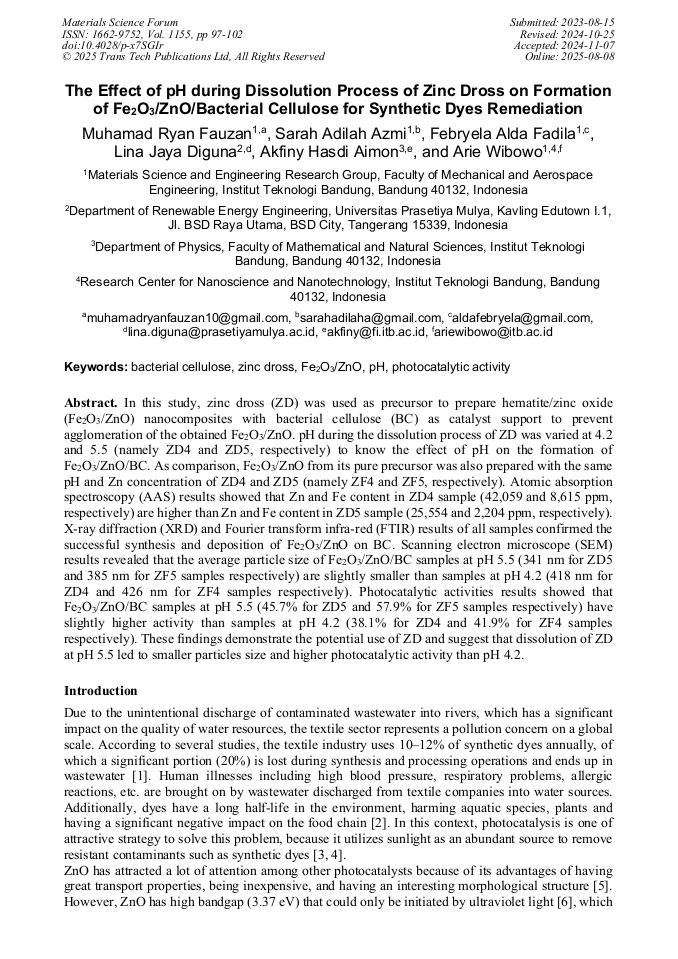

The Effect of pH during Dissolution Process of Zinc Dross on Formation of Fe₂O₃/ ZnO/Bacterial Cellulose for Synthetic Dyes Remediation

Abstract:

In this study, zinc dross (ZD) was used as precursor to prepare hematite/zinc oxide (Fe₂O₃/ZnO) nanocomposites with bacterial cellulose (BC) as catalyst support to prevent agglomeration of the obtained Fe₂O₃/ZnO. pH during the dissolution process of ZD was varied at 4.2 and 5.5 (namely ZD4 and ZD5, respectively) to know the effect of pH on the formation of Fe₂O₃/ZnO/BC. As comparison, Fe₂O₃/ZnO from its pure precursor was also prepared with the same pH and Zn concentration of ZD4 and ZD5 (namely ZF4 and ZF5, respectively). Atomic absorption spectroscopy (AAS) results showed that Zn and Fe content in ZD4 sample (42,059 and 8,615 ppm, respectively) are higher than Zn and Fe content in ZD5 sample (25,554 and 2,204 ppm, respectively). X-ray diffraction (XRD) and Fourier transform infra-red (FTIR) results of all samples confirmed the successful synthesis and deposition of Fe₂O₃/ZnO on BC. Scanning electron microscope (SEM) results revealed that the average particle size of Fe₂O₃/ZnO/BC samples at pH 5.5 (341 nm for ZD5 and 385 nm for ZF5 samples respectively) are slightly smaller than samples at pH 4.2 (418 nm for ZD4 and 426 nm for ZF4 samples respectively). Photocatalytic activities results showed that Fe₂O₃/ZnO/BC samples at pH 5.5 (45.7% for ZD5 and 57.9% for ZF5 samples respectively) have slightly higher activity than samples at pH 4.2 (38.1% for ZD4 and 41.9% for ZF4 samples respectively). These findings demonstrate the potential use of ZD and suggest that dissolution of ZD at pH 5.5 led to smaller particles size and higher photocatalytic activity than pH 4.2.

• Periodical: Materials Science Forum (Volume 1155)
• Pages: 97-102
• DOI: https://doi.org/10.4028/p-x7SGIr
• Online since: August 2025
• Authors: Muhamad Ryan Fauzan, Sarah Adilah Azmi, Febryela Alda Fadila, Lina Jaya Diguna, Akfiny Hasdi Aimon, Arie Wibowo*
• Keywords: Bacterial Cellulose, Fe₂O₃/ ZnO, pH, Photocatalytic Activity, Zinc Dross

References

[1] A. Rafiq et al., "Photocatalytic degradation of dyes using semiconductor photocatalysts to clean industrial water pollution," Journal of Industrial and Engineering Chemistry, vol. 97, p.111–128, May 2021.

DOI: 10.1016/j.jiec.2021.02.017

[2] D. Rostamzadeh and S. Sadeghi, "Ni doped zinc oxide nanoparticles supported bentonite clay for photocatalytic degradation of anionic and cationic synthetic dyes in water treatment," Journal of Photochemistry and Photobiology A: Chemistry, vol. 431, p.113947, Oct. 2022.

DOI: 10.1016/j.jphotochem.2022.113947

[3] F. H. Abdullah, N. H. H. A. Bakar, and M. A. Bakar, "Current advancements on the fabrication, modification, and industrial application of zinc oxide as photocatalyst in the removal of organic and inorganic contaminants in aquatic systems," Journal of Hazardous Materials, vol. 424, p.127416, Feb. 2022.

DOI: 10.1016/j.jhazmat.2021.127416

[4] I. J. Budiarso, et al., "Carbon nitride- and graphene-based materials for photocatalytic degradation of emerging water pollutant," Materials Advances, vol. 5, pp.2668-2688, Feb. 2024.

DOI: 10.1039/D3MA01078C

[5] T. Sansenya et al., "Hydrothermal synthesis of ZnO photocatalyst for detoxification of anionic azo dyes and antibiotic," Journal of Physics and Chemistry of Solids, vol. 160, p.110353, Jan. 2022.

DOI: 10.1016/j.jpcs.2021.110353

[6] Y. Jin et al., "Synthesis of caged iodine-modified ZnO nanomaterials and study on their visible light photocatalytic antibacterial properties," Applied Catalysis B: Environmental, vol. 256, p.117873, Nov. 2019.

DOI: 10.1016/j.apcatb.2019.117873

[7] A. A. Yaqoob, N. H. B. Mohd Noor, A. Serrà, and M. N. Mohamad Ibrahim, "Advances and Challenges in Developing Efficient Graphene Oxide-Based ZnO Photocatalysts for Dye Photo-Oxidation," Nanomaterials, vol. 10, no. 5, p.932, May 2020.

DOI: 10.3390/nano10050932

[8] Z. Mirzaeifard, Z. Shariatinia, M. Jourshabani, and S. M. Rezaei Darvishi, "ZnO Photocatalyst Revisited: Effective Photocatalytic Degradation of Emerging Contaminants Using S-Doped ZnO Nanoparticles under Visible Light Radiation," Ind. Eng. Chem. Res., vol. 59, no. 36, p.15894–15911, Sep. 2020.

DOI: 10.1021/acs.iecr.0c03192

[9] Y. Li, K. Liu, J. Zhang, J. Yang, Y. Huang, and Y. Tong, "Engineering the Band-Edge of Fe2O3 /ZnO Nanoplates via Separate Dual Cation Incorporation for Efficient Photocatalytic Performance," Ind. Eng. Chem. Res., vol. 59, no. 42, p.18865–18872, Oct. 2020.

DOI: 10.1021/acs.iecr.0c03388

[10] L. J. Diguna et al., "Optical and Photodetection Properties of ZnO Nanoparticles Recovered from Zn Dross," Crystals, vol. 11, no. 1, p.6, Dec. 2020.

DOI: 10.3390/cryst11010006

[11] A. Wibowo, R. F. Indrawan, U. Triadhi, A. H. Aimon, F. Iskandar, and H. Ardy, "Simple preparation of Fenton catalyst@bacterial cellulose for waste water treatment," Mater. Res. Express, vol. 5, no. 2, p.024005, Feb. 2018.

DOI: 10.1088/2053-1591/aaac86

[12] K. Chi and J. M. Catchmark, "The influences of added polysaccharides on the properties of bacterial crystalline nanocellulose," Nanoscale, vol. 9, no. 39, p.15144–15158, 2017.

DOI: 10.1039/C7NR05615J

[13] S. Nachimuthu, et al., " Lawsonia inermis mediated synthesis of ZnO/Fe2O3 nanorods for photocatalysis – Biological treatment for the enhanced effluent treatment, antibacterial and antioxidant activities," Chemical Physics Letters, vol. 804, p.139907, 2022.

DOI: 10.1016/j.cplett.2022.139907

[14] D. Li et al., "Effects of Particle Size on the Structure and Photocatalytic Performance by Alkali-Treated TiO2," Nanomaterials, vol. 10, no. 3, p.546, Mar. 2020.

DOI: 10.3390/nano10030546
