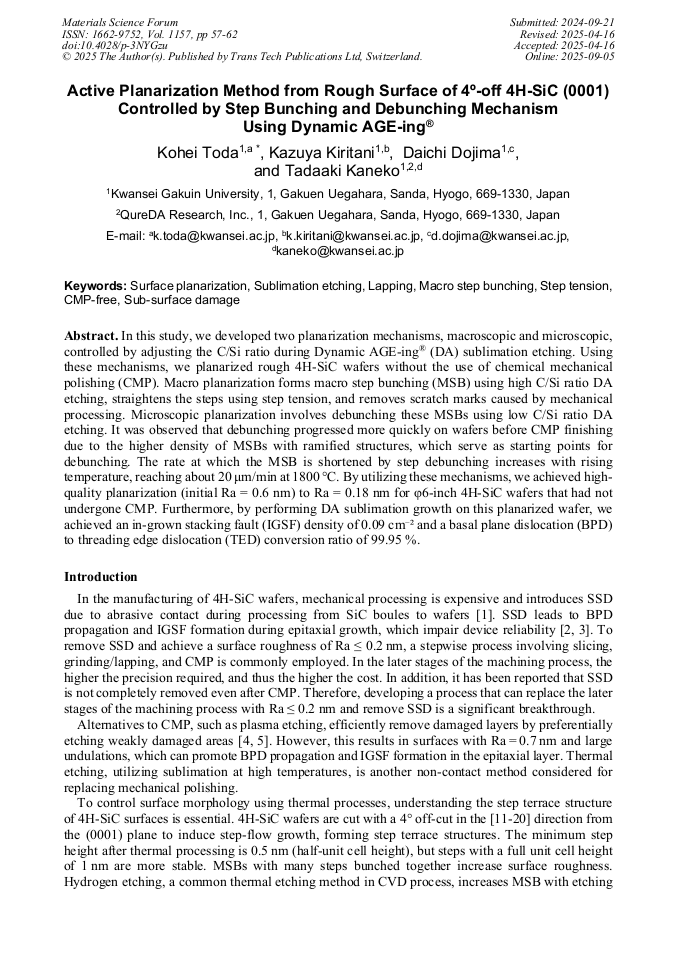

Active Planarization Method from Rough Surface of 4º-off 4H-SiC (0001) Controlled by Step Bunching and Debunching Mechanism Using Dynamic AGE-ing^®

Abstract:

In this study, we developed two planarization mechanisms, macroscopic and microscopic, controlled by adjusting the C/Si ratio during Dynamic AGE-ing^® (DA) sublimation etching. Using these mechanisms, we planarized rough 4H-SiC wafers without the use of chemical mechanical polishing (CMP). Macro planarization forms macro step bunching (MSB) using high C/Si ratio DA etching, straightens the steps using step tension, and removes scratch marks caused by mechanical processing. Microscopic planarization involves debunching these MSBs using low C/Si ratio DA etching. It was observed that debunching progressed more quickly on wafers before CMP finishing due to the higher density of MSBs with ramified structures, which serve as starting points for debunching. The rate at which the MSB is shortened by step debunching increases with rising temperature, reaching about 20 μm/min at 1800 °C. By utilizing these mechanisms, we achieved high-quality planarization (initial Ra = 0.6 nm) to Ra = 0.18 nm for φ6-inch 4H-SiC wafers that had not undergone CMP. Furthermore, by performing DA sublimation growth on this planarized wafer, we achieved an in-grown stacking fault (IGSF) density of 0.09 cm⁻² and a basal plane dislocation (BPD) to threading edge dislocation (TED) conversion ratio of 99.95 %.

• Periodical: Materials Science Forum (Volume 1157)
• Pages: 57-62
• DOI: https://doi.org/10.4028/p-3NYGzu
• Online since: September 2025
• Authors: Kohei Toda*, Kazuya Kiritani, Daichi Dojima, Tadaaki Kaneko
• Keywords: CMP-Free, Lapping, Macro Step Bunching, Step Tension, Sublimation Etching, Sub-Surface Damage, Surface Planarization

References

[1] H. Sako, H. Matsuhata, M. Sasaki, M. Nagaya. T. Kido, K. Kawata, T. Kato, J. Senzaki, M. Kitabatake and H. Okumura, Micro-structural analysis of local damage introduced in subsurface regions of 4H-SiC wafers during chemo-mechanical polishing, J. Appl. Phys. 119 (2016) 135702.

DOI: 10.1063/1.4945017

[2] T. Hosoi, K. Konzono, Y. Uenishi, S. Mitani, Y. Nakano, T. Nakamura, T, Shimura and H, Watanabe, Investigation of Surface and Interface Morphology of Thermally Grown SiO2 Dielectrics on 4H-SiC (0001) Substrates. Mater. Sci. Forum. 679 (2011) 342-345.

DOI: 10.4028/www.scientific.net/msf.679-680.342

[3] K. Toda, D. Dojima, K. Kojima, H. Mihara, S. Mitani and T. Kaneko, Suppression of In-grown SF Formation and BPD Propagation in 4H-SiC Epitaxial Layer by Sublimating Sub-surface Damage before the Growth, Solid State Phenom. 344 (2023) 9-14.

DOI: 10.4028/p-z108w8

[4] Information on https://www.eetasia.com/sic-substrates-plasma-polish-removes-subsurface-damage/

[5] M. A. Mathews, A. R. Graves, D. R. Boris, S. G. Walton, C. D. Stinespring, Plasma assisted remediation of SiC surfaces, J. Appl. Phys. 135 (2024) 153301.

DOI: 10.1063/5.0203539

[6] Y. Ishida, T. Takahashi, H. Okumura, K. Arai, S. Yoshida, Origin of giant step bunching on 4H-SiC (0001) surfaces, Mater. Sci. 600 (2009) 473-476.

DOI: 10.4028/www.scientific.net/msf.600-603.473

[7] D. Dojima, K. Tayake, K. Shigematsu, K. Toda, and T. Kaneko, Macro Step Bunching/Debunching Engineering on 4°off 4H-SiC (0001) to Control the BPD-TED Conversion Ratio by Dynamic AGE-ing®, Defect and Diffusion Forum (2024) 165-172.

DOI: 10.4028/p-6lkxar

[8] T. Kaneko, presented at the International Conference on Silicon Carbide and Related Materials (Tu-P-09), Kyoto International Conference Center, Kyoto, Japan, 2019(unpublished).

[9] K. Toda, D. Kakutani, D. Dojima, Y. Nakajima, H. Mihara, and T. Kaneko, A Novel Contactless SiC Wafer Planarization Processing after Mechanical Slicing by Dynamic Thermal Annealing Processes, Mater. Sci. Forum. (2024) 77-84.

DOI: 10.4028/p-imtf8k
