High-Hardness Transparent Silicon Nitride Ceramic

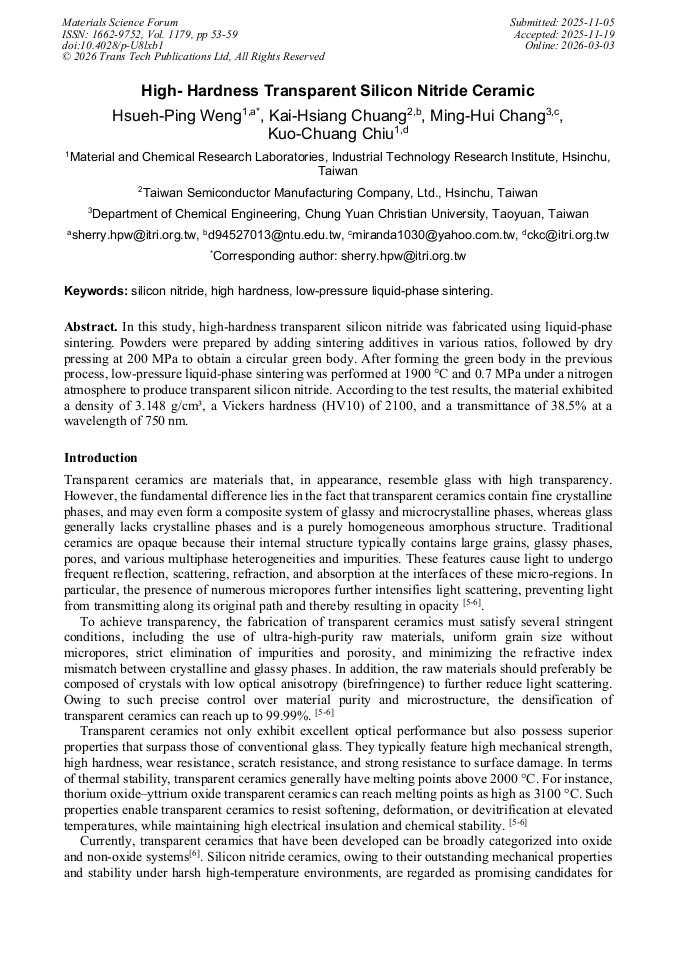

Article Preview

Abstract:

In this study, high-hardness transparent silicon nitride was fabricated using liquid-phase sintering. Powders were prepared by adding sintering additives in various ratios, followed by dry pressing at 200 MPa to obtain a circular green body. After forming the green body in the previous process, low-pressure liquid-phase sintering was performed at 1900 °C and 0.7 MPa under a nitrogen atmosphere to produce transparent silicon nitride. According to the test results, the material exhibited a density of 3.148 g/cm³, a Vickers hardness (HV10) of 2100, and a transmittance of 38.5% at a wavelength of 750 nm.

You might also be interested in these eBooks
Ceramics, Green Concrete, Functional and Applied Materials View Preview

Info:

Periodical:

Materials Science Forum (Volume 1179)

Pages:

53-59

DOI:

https://doi.org/10.4028/p-U8lxb1

Citation:

Cite this paper

Online since:

March 2026

Authors:

Hsueh Ping Weng*, Kai Hsiang Chuang, Ming Hui Chang, Kuo Chuang Chiu

Keywords:

High Hardness, Low-Pressure Liquid-Phase Sintering, Silicon Nitride

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] H.P. Weng, M.H. Chang, and K.H. Chuang, "Transparent nitride," Taiwan Patent I772234, Jan. 2022.

Google Scholar

[2] H.P. Weng, M.H. Chang, K.H. Chuang, and K.C. Chiu, "Development of transparent ceramics technology (Part I)," Industrial Materials Magazine, no. 408, p.76–81, 2020.

Google Scholar

[3] H.P. Weng, M.H. Chang, K.H. Chuang, and K.C. Chiu, "Development of transparent ceramics technology (Part II)," Industrial Materials Magazine, no. 409, p.142–148, 2021.

Google Scholar

[4] Transparent Ceramics Market by Type (Monocrystalline Transparent Ceramics, Polycrystalline Transparent Ceramics), End Use (Aerospace, Chemical, Defense & Security) - Global Forecast 2025-2030：https://www.gii.tw/report/ires1598519-transparent-ceramics-market-by-type.html.

DOI: 10.3390/books978-3-7258-5150-8

Google Scholar

[5] Transparent Ceramics：highscope.ch.ntu.edu.tw/wordpress.

Google Scholar

[6] Su, M.D., Bio ceramics and transparent ceramics, Science Development, (445), 65–69, 2010.

Google Scholar

[7] X. Mao, S. Wang, S. Shimai, and J. Guo, "Transparent polycrystalline alumina ceramics with orientated optical axes," Journal of the American Ceramic Society, vol. 91, no. 10, p.3431–3433, 2008.

DOI: 10.1111/j.1551-2916.2008.02611.x

Google Scholar

[8] Coble, R. L. (1962). Transparent alumina and method of preparation (U.S. Patent No. 3,026,210). U.S. Patent and Trademark Office.

Google Scholar

[9] I. Reimanis and H.-J. Kleebe, "A review on the sintering and microstructure development of transparent spinel (MgAl₂O₄)," Journal of the American Ceramic Society, vol. 92, no. 7, p.1472–1480, 2009.

DOI: 10.1111/j.1551-2916.2009.03108.x

Google Scholar

[10] J. Wang, F. Zhang, F. Chen, H. Zhang, R. Tian, M. Dong, J. Liu, Z. Zhang, J. Zhang, and S. Wang, "Fabrication of aluminum oxynitride (γ-AlON) transparent ceramics with modified gelcasting," Journal of the American Ceramic Society, vol. 97, no. 5, p.1353–1355, 2014.

DOI: 10.1111/jace.12853

Google Scholar

[11] Z. Xiao, S. Yu, Y. Li, S. Ruan, L. B. Kong, Q. Huang, Z. Huang, K. Zhou, H. Su, Z. Yao, W. Que, Y. Liu, T. Zhang, J. Wang, P. Liu, D. Shen, M. Allix, J. Zhang, D. Tang, "Materials development and potential applications of transparent ceramics: A review", Mater. Sci. Eng. R Rep.vol. 139, p.100518, 2020.

DOI: 10.1016/j.mser.2019.100518

Google Scholar

[12] M. Rubat du Merac, M. Bram, J. Malzbender, M. Ziegner, M. Rasinski, and O. Guillon, "Increasing fracture toughness and transmittance of transparent ceramics using functional low-thermal expansion coatings," Journal of the European Ceramic Society, vol. 39, no. 1, p.33–38, Oct. 2018.

DOI: 10.1016/j.jeurceramsoc.2018.09.027

Google Scholar

[13] N. Nishiyama, R. Ishikawa, H. Ohfuji, H. Marquardt, A. Kurnosov, T. Taniguchi, B.-N. Kim, H. Yoshida, A. Masuno, J. Bednarcik, E. Kulik, Y. Ikuhara, F. Wakai, and T. Irifune, "Transparent polycrystalline cubic silicon nitride," Scientific Reports, vol. 7, no. 1, p.44755, Mar. 2017.

DOI: 10.1038/srep44755

Google Scholar

[14] A. Pechenik, G. J. Piermarini, and S. C. Danforth, "Fabrication of transparent silicon nitride from nanosize particles," Journal of the American Ceramic Society, vol. 75, no. 12, p.3283–3288, 1992.

DOI: 10.1111/j.1151-2916.1992.tb04422.x

Google Scholar

[15] W. Yang, J. Hojo, N. Enomoto, Y. Tanaka, and M. Inada, "Influence of sintering aid on the translucency of spark plasma-sintered silicon nitride ceramics," Journal of the American Ceramic Society, vol. 96, no. 8, p.2556–2561, 2013.

DOI: 10.1111/jace.12370

Google Scholar

[16] W. W. Yang, M. Inada, Y. Tanaka, N. Enomoto, and J. Hojo, "Fabrication of translucent silicon nitride ceramics with various sintering aids," International Journal of Nanotechnology, vol. 10, nos. 1–2, p.3–12, 2013.

DOI: 10.1504/ijnt.2013.050888

Google Scholar

[17] X. Zhang, S. Cui, S. Ma, W. Chen, Y. Ge, X. Zhao, H. Li, M. Lian, Q. Tao, T. Cui, and P. Zhu, "Hardness, elastic modulus and their correlations in the transparent silicon nitrides," Materials Today Communications, vol. 38, p.108320, 2024.

DOI: 10.1016/j.mtcomm.2024.108320

Google Scholar

[18] A. Goldstein and A. Krell, "Transparent ceramics at 50: Progress made and further prospects," Journal of the American Ceramic Society, vol. 99, no. 10, p.3173–3197, 2016.

DOI: 10.1111/jace.14553

Google Scholar
