The Influence of Side-Dependent and Nonlinear Bending Behavior in Forming Simulation of Non-Crimp Fabrics

Article Preview
View Pdf Read Epub By email

Abstract:

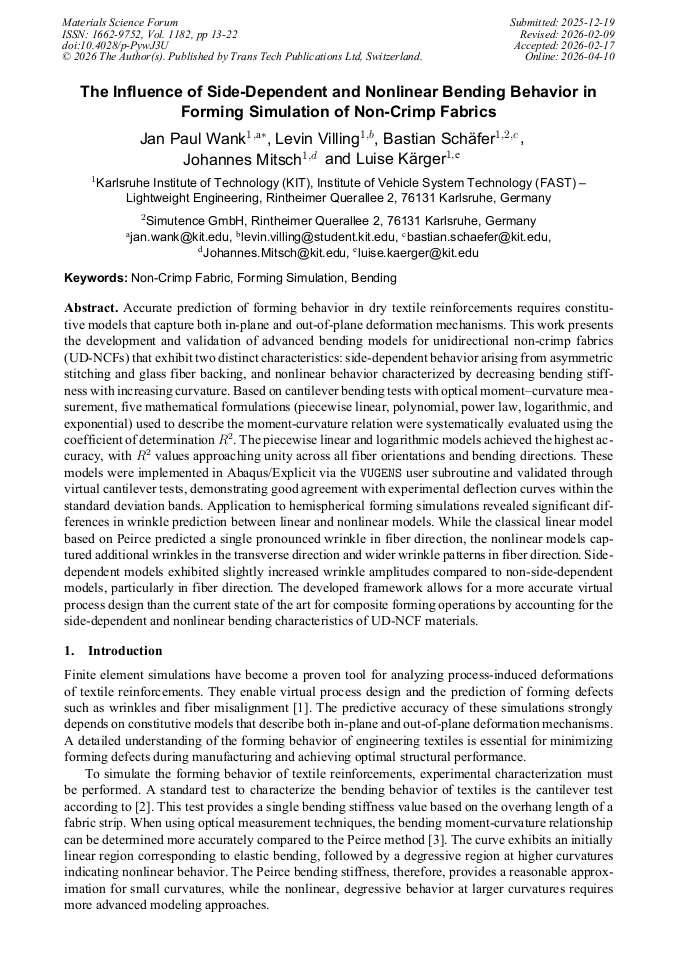

Accurate prediction of forming behavior in dry textile reinforcements requires constitutive models that capture both in-plane and out-of-plane deformation mechanisms. This work presents the development and validation of advanced bending models for unidirectional non-crimp fabrics (UD-NCFs) that exhibit two distinct characteristics: side-dependent behavior arising from asymmetric stitching and glass fiber backing, and nonlinear behavior characterized by decreasing bending stiffness with increasing curvature. Based on cantilever bending tests with optical moment–curvature measurement, five mathematical formulations (piecewise linear, polynomial, power law, logarithmic, and exponential) used to describe the moment-curvature relation were systematically evaluated using the coefficient of determination R2. The piecewise linear and logarithmic models achieved the highest accuracy, with R2 values approaching unity across all fiber orientations and bending directions. These models were implemented in ABAQUS/Explicit via the VUGENS user subroutine and validated through virtual cantilever tests, demonstrating good agreement with experimental deflection curves within the standard deviation bands. Application to hemispherical forming simulations revealed significant differences in wrinkle prediction between linear and nonlinear models. While the classical linear model based on Peirce predicted a single pronounced wrinkle in fiber direction, the nonlinear models captured additional wrinkles in the transverse direction and wider wrinkle patterns in fiber direction. Side-dependent models exhibited slightly increased wrinkle amplitudes compared to non-side-dependent models, particularly in fiber direction. The developed framework allows for a more accurate virtual process design than the current state of the art for composite forming operations by accounting for the side-dependent and nonlinear bending characteristics of UD-NCF materials.

You might also be interested in these eBooks
Modeling and Numerical Approach in Composites Forming Processes View Preview

Info:

Periodical:

Materials Science Forum (Volume 1182)

Pages:

13-22

DOI:

https://doi.org/10.4028/p-PywJ3U

Citation:

Cite this paper

Online since:

April 2026

Authors:

Jan Paul Wank*, Levin Villing, Bastian Schäfer, Johannes Mitsch, Luise Kärger

Keywords:

Bending, Forming Simulation, Non-Crimp Fabric

Funder:

The publication of this article was funded by the Karlsruhe Institute of Technology 10.13039/100009133

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
