Estimation of the Lateral Gap in PECM: A Case Study on Tool Steel S390

Article Preview
View Pdf By email

Abstract:

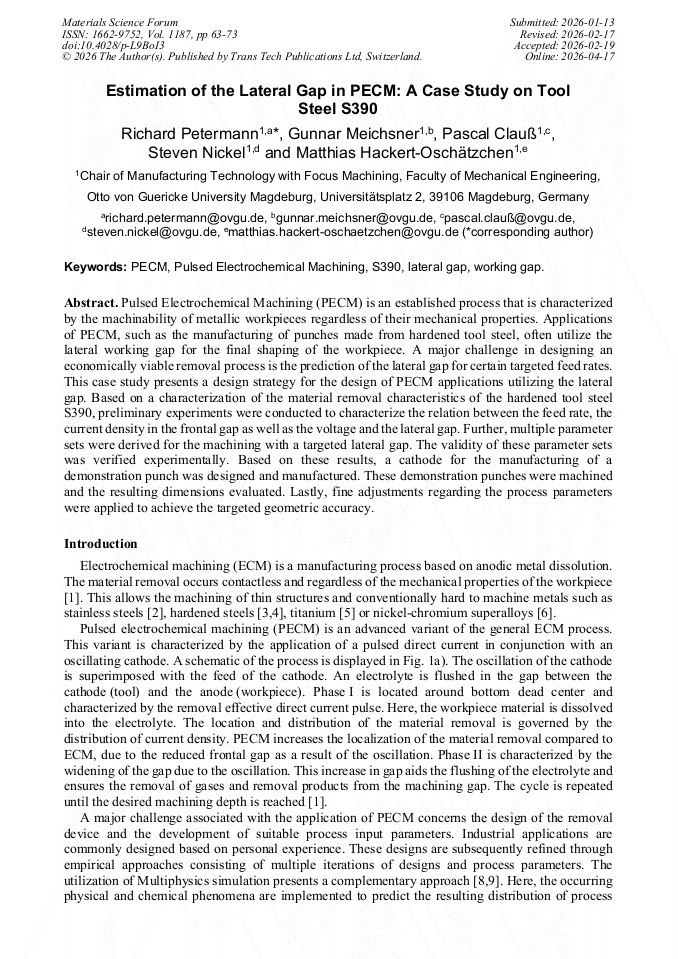

Pulsed Electrochemical Machining (PECM) is an established process that is characterized by the machinability of metallic workpieces regardless of their mechanical properties. Applications of PECM, such as the manufacturing of punches made from hardened tool steel, often utilize the lateral working gap for the final shaping of the workpiece. A major challenge in designing an economically viable removal process is the prediction of the lateral gap for certain targeted feed rates. This case study presents a design strategy for the design of PECM applications utilizing the lateral gap. Based on a characterization of the material removal characteristics of the hardened tool steel S390, preliminary experiments were conducted to characterize the relation between (1) the feed rate, the current density in the frontal gap and the voltage and (2) the lateral gap. Further, multiple parameter sets were derived for the machining with a targeted lateral gap. The validity of these parameter sets is verified experimentally. Based on these results, a cathode for the manufacturing of a demonstration punch was designed and manufactured. These demonstration punches were machined and the resulting dimensions evaluated. Lastly, fine adjustments regarding the process parameters were applied to achieve the targeted geometric accuracy.

You have full access to the following eBook
Special Materials and Processes Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1187)

Pages:

63-73

DOI:

https://doi.org/10.4028/p-L9BoI3

Citation:

Cite this paper

Online since:

April 2026

Authors:

Richard Petermann*, Gunnar Meichsner, Pascal Clauß, Steven Nickel, Matthias Hackert-Oschätzchen

Keywords:

Lateral Gap, PECM, Pulsed Electrochemical Machining, S390, Working Gap

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
