Analysis of Connection Geometries for Segmented Stator Cores Machined with Laser Beam Cutting

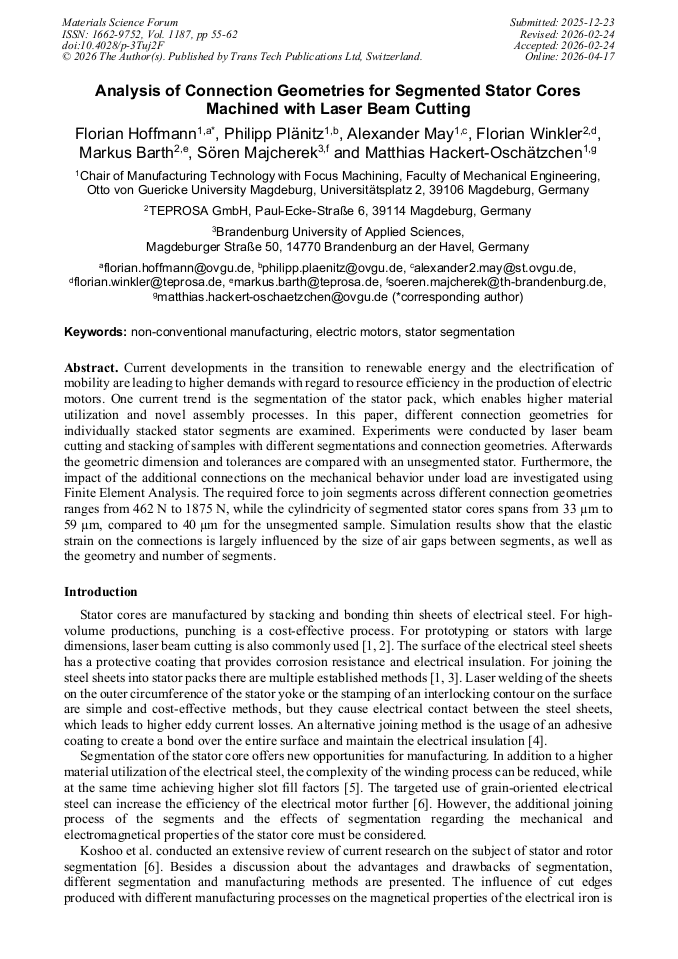

Article Preview
View Pdf By email

Abstract:

Current developments in the transition to renewable energy and the electrification of mobility are leading to higher demands with regard to resource efficiency in the production of electric motors. One current trend is the segmentation of the stator pack, which enables higher material utilization and novel assembly processes. In this paper, different connection geometries for individually stacked stator segments are examined. Experiments were conducted by laser beam cutting and stacking of samples with different segmentations and connection geometries. Afterwards the geometric dimension and tolerances are compared with an unsegmented stator. Furthermore, the impact of the additional connection on the mechanical behavior under load are investigated using Finite Element Analysis. The required force to join segments across different connection geometries ranges from 462 N to 1875 N, while the cylindricity of segmented stator cores spans from 33 µm to 59 µm, compared to 40 µm for the unsegmented sample. Simulation results show that the elastic strain on the connections is largely influenced by the size of air gaps between segments, as well as the geometry and number of segments.

You have full access to the following eBook
Special Materials and Processes Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1187)

Pages:

55-62

DOI:

https://doi.org/10.4028/p-3Tuj2F

Citation:

Cite this paper

Online since:

April 2026

Authors:

Florian Hoffmann*, Philipp Plänitz, Alexander May, Florian Winkler, Markus Barth, Sören Majcherek, Matthias Hackert-Oschätzchen

Keywords:

Electric Motor, Non-Conventional Manufacturing, Stator Segmentation

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] E. Lamprecht, Der Einfluss der Fertigungsverfahren auf die Wirbelstromverluste von Stator-Einzelzahnblechpaketen für den Einsatz in Hybrid- und Elektrofahrzeugen, (2014).

Google Scholar

[2] Z. Gmyrek, F. Graffeo, S. Vaschetto, A. Cavagnino, Measurements and Modeling of Iron Losses in Guillotine and Laser Cut Soft-Magnetic Sheets. IEEE IAS, 6 (2025) 663–675.

DOI: 10.1109/ojia.2025.3607115

Google Scholar

[3] A. Schoppa, J. Schneider, C.-D. Wuppermann, T. Bakon, Influence of welding and sticking of laminations on the magnetic properties of non-oriented electrical steels. Journal of Magnetism and Magnetic Materials (2003).

DOI: 10.1016/s0304-8853(02)00877-6

Google Scholar

[4] R. Pugstaller, G.M. Wallner, B. Strauß, R. Fluch, Advanced characterization of laminated electrical steel structures under shear loading. Journal of Adhesion, 95(9) (2019) 834–848.

DOI: 10.1080/00218464.2018.1450747

Google Scholar

[5] A.M. EL-Refaie, Fractional-slot concentrated-windings synchronous permanent magnet machines: Opportunities and challenges. IEEE Transactions on Industrial Electronics, 57(1) (2010) 107–121.

DOI: 10.1109/TIE.2009.2030211

Google Scholar

[6] B. Khoshoo, A. Aggarwal, S. Foster, A Review of Segmented Stator and Rotor Designs in AC Electric Machines: Opportunities and Challenges, Eng, 6(1) (2025).

DOI: 10.3390/eng6010007

Google Scholar

[7] M. Garmut, M. Petrun, Influence of stator segmentation on iron losses in PMSMs for traction applications. COMPEL, 41(2), (2022) 644–658.

DOI: 10.1108/compel-06-2021-0224

Google Scholar

[8] J. Rens, S. Jacobs, L. Vandenbossche, E. Attrazic, Effect of Stator Segmentation and Manufacturing Degradation on the Performance of IPM Machines, Using iCARe® Electrical Steels. World Electric Vehicle Journal, 8(2) (2016) 450–460.

DOI: 10.3390/wevj8020450

Google Scholar

[9] R. Raj, T. Lindberg, Z. Lin, D. Singh, K. Bergsro, T. Thiringer, Characterizing the Effect of Shrink Fitting of Stator Housings on Electric Vehicle Performance. IEEE Transactions on Energy Conversion (2025).

DOI: 10.1109/TEC.2025.3560801

Google Scholar

[10] Y. Zhu, B. Mecrow, G. Atkinson, X. Deng, G. Liu, Stress-dependent Iron Loss in Segmented Laminations Considering Surface Roughness. ICEM (2024).

DOI: 10.1109/icem60801.2024.10700393

Google Scholar

[11] DIN EN 10106:2015, Cold rolled non-oriented electrical steel strip and sheet delivered in the fully processed state.

DOI: 10.3403/00810311

Google Scholar

[12] T. Albrecht, C. Gursel, E. Lamprecht, T. Klier: Joining techniques of the rotor segmentation of PM-synchronous machines for Hybrid drives. EDPC, IEEE, 2012 — ISBN 978-1-4673-3008-4, p.1–8.

DOI: 10.1109/edpc.2012.6425122

Google Scholar
