Influence of Variable Radius Die Geometry on Tube Bending: A Finite Element Parametric Study

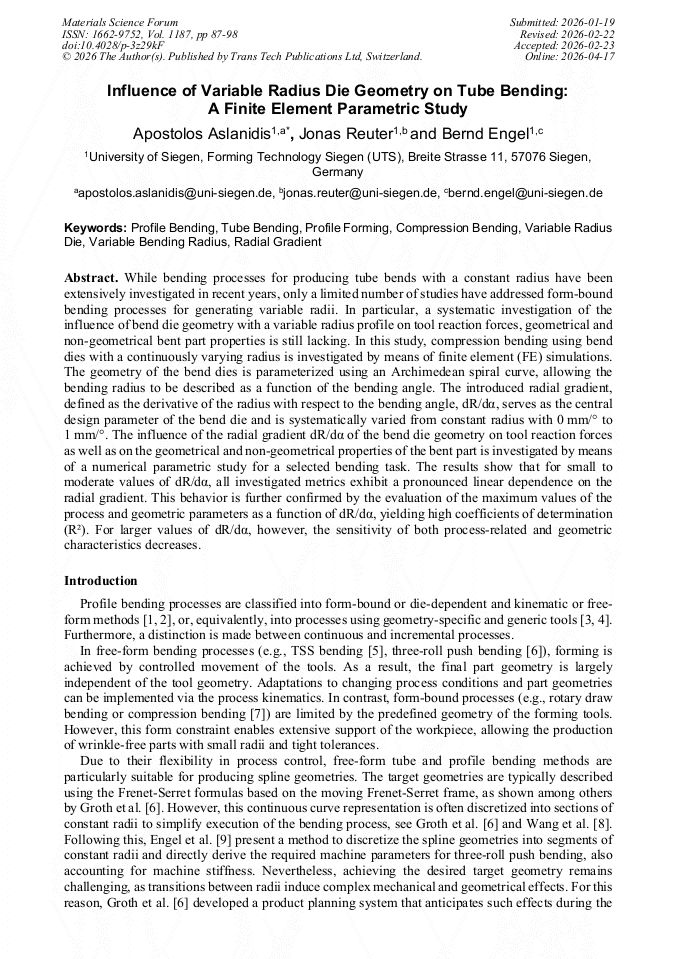

Article Preview
View Pdf By email

Abstract:

While bending processes for producing tube bends with a constant radius have been extensively investigated in recent years, only a limited number of studies have addressed form-bound bending processes for generating variable radii. In particular, a systematic investigation of the influence of bending die geometry with a variable radius profile on tool reaction forces, geometrical and non-geometrical bent part properties is still lacking. In this study, compression bending using bending dies with a continuously varying radius is investigated by means of finite element (FE) simulations. The geometry of the bending dies is parameterized using an Archimedean spiral curve, allowing the bending radius to be described as a function of the bending angle. The introduced radial gradient, defined as the derivative of the radius with respect to the bending angle, dR/dα, serves as the central design parameter of the bending die and is systematically varied from constant radius with 0 mm/° to 1 mm/°. The influence of the radial gradient dR/dα of the bending die geometry on tool reaction forces as well as on the geometrical and non-geometrical properties of the bent part is investigated by means of a numerical parametric study for a selected bending task. The results show that for small to moderate values of dR/dα, all investigated metrics exhibit a pronounced linear dependence on the radial gradient. This behavior is further confirmed by the evaluation of the maximum values of the process and geometric parameters as a function of dR/dα, yielding high coefficients of determination (R²). For larger values of dR/dα, however, the sensitivity of both process-related and geometric characteristics decreases.

You have full access to the following eBook
Special Materials and Processes Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1187)

Pages:

87-98

DOI:

https://doi.org/10.4028/p-3z29kF

Citation:

Cite this paper

Online since:

April 2026

Authors:

Apostolos Aslanidis*, Jonas Reuter, Bernd Engel

Keywords:

Compression Bending, Profile Bending, Profile Forming, Radial Gradient, Tube Bending, Variable Bending Radius, Variable Radius Die

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] F. Vollertsen, A. Sprenger, J. Kraus, H. Arnet, Extrusion, channel, and profile bending: a review, J. Mater. Process. Technol. 87 (1999) 1–27.

DOI: 10.1016/S0924-0136(98)00339-2

Google Scholar

[2] VDI-Gesellschaft Produktion und Logistik, VDI 3430, Rotary draw bending of profiles: technical standard, 2014. https://www.dinmedia.de/de/technische-regel/vdi-3430/199134778.

Google Scholar

[3] J. Cao, E. Brinksmeier, M. Fu, R.X. Gao, B. Liang, M. Merklein, M. Schmidt, J. Yanagimoto, Manufacturing of advanced smart tooling for metal forming, CIRP Ann. 68 (2019) 605–628.

DOI: 10.1016/j.cirp.2019.05.001

Google Scholar

[4] D.Y. Yang, M. Bambach, J. Cao, J.R. Duflou, P. Groche, T. Kuboki, A. Sterzing, A.E. Tekkaya, C.W. Lee, Flexibility in metal forming, CIRP Ann. 67 (2018) 743 - 765.

DOI: 10.1016/j.cirp.2018.05.004

Google Scholar

[5] S. Chatti, M. Hermes, A.E. Tekkaya, M. Kleiner, The new TSS bending process: 3D bending of profiles with arbitrary cross-sections, CIRP Ann. 59 (2010) 315 - 318.

DOI: 10.1016/j.cirp.2010.03.017

Google Scholar

[6] S. Groth, P. Frohn, B. Engel, Product planning system for manufacture-oriented modeling of freeform bend tubes produced by three-roll-push-bending, Procedia Manuf. 34 (2019) 10 - 18.

DOI: 10.1016/j.promfg.2019.06.107

Google Scholar

[7] S.A. Tronvoll, J. Ma, T. Welo, Deformation behavior in tube bending: a comparative study of compression bending and rotary draw bending, Int. J. Adv. Manuf. Technol. 124 (2023) 801 - 816.

DOI: 10.1007/s00170-022-10433-7

Google Scholar

[8] W. Wang, J. Wu, L. Liu, Z. Yang, H. Wang, M. Wang, Partitioning and processing method for free-bending of spatial variable curvature tube fittings, Int. J. Adv. Manuf. Technol. 140 (2025) 2157 - 2175.

DOI: 10.1007/s00170-025-16410-0

Google Scholar

[9] B. Engel, S. Kersten, D. Anders, Spline‐Interpolation and Calculation of Machine Parameters for the Three‐Roll‐Pushbending of Spline‐Contours, Steel Res. Int. 82 (2011) 1180 - 1186.

DOI: 10.1002/srin.201100077

Google Scholar

[10] S. Groth, B. Engel, K. Langhammer, Algorithm for the quantitative description of freeform bend tubes produced by the three-roll-push-bending process, Prod. Eng. Res. Devel. 12 (2018) 517 - 524.

DOI: 10.1007/s11740-018-0795-2

Google Scholar

[11] L. Scandola, M. Erber, P. Hagenlocher, F. Steinlehner, W. Volk, Reconstruction of the bending line for free-form bent components extracting the centroids and exploiting NURBS curves, Graph. Models 135 (2024) 101227.

DOI: 10.1016/j.gmod.2024.101227

Google Scholar

[12] M. Elyasi, F.A. Khatir, H. Talebi Ghadikolaee, V. Modanloo, Experimental investigation and numerical simulation of the effect of type of bending die on the quality of tube forming in rotary draw bending process, Int. J. Lightw. Mater. Manuf. 7 (2024) 233 - 247.

DOI: 10.1016/j.ijlmm.2023.10.005

Google Scholar

[13] J. Reuter, Methode zur Gestaltung segmentierter Werkzeuge für die Flexibilisierung von Biegeprozessen Jonas Reuter, universi - Universitätsverlag Siegen, Siegen, 2025.

Google Scholar

[14] J. Mrochen, J. Reuter, A. Aslanidis, P. Frohn-Sörensen, L. Hansmann, B. Engel, U. Lorenz, Topology optimized metal forming tools: Using Mixed-Integer Programming to design truss-like structures (2025).

DOI: 10.21203/rs.3.rs-7021236/v1

Google Scholar

[15] E. El-Magd, C. Treppman, M. Korthäuer, Description of flow curves over wide ranges of strain rate and temperature, Int. J. Mater. Res. 97 (2006) 1453 - 1459.

DOI: 10.3139/146.101390

Google Scholar

[16] P. Frohn-Sörensen, C. Cislo, H. Paschke, M. Stockinger, B. Engel, Dry friction under pressure variation of PACVD TiN surfaces on selected automotive sheet metals for the application in unlubricated metal forming, Wear 476 (2021) 203750.

DOI: 10.1016/j.wear.2021.203750

Google Scholar

[17] M.A. Kaleem, R. Steinheimer, P. Frohn-Sörensen, T. Kotzian, B. Engel, Topology optimization of forming tools: pressure die in rotary draw bending process, Int. J. Interact. Des. Manuf. 19 (2025) 3349 - 3362.

DOI: 10.1007/s12008-024-01932-w

Google Scholar

[18] A. Polezhaev, Spirals, Their Types and Peculiarities, Spirals and Vortices (2019) 91 - 112.

DOI: 10.1007/978-3-030-05798-5_4

Google Scholar

[19] F. Kürpig, O. Niewiadomski, Spiralen, in: F. Kürpig, O. Niewiadomski (Eds.), Grundlehre Geometrie: Begriffe, Lehrsätze, Grundkonstruktionen, Vieweg+Teubner Verlag, Wiesbaden, 1992, pp.79-84.

DOI: 10.1007/978-3-322-87602-7_7

Google Scholar

[20] VDI-Gesellschaft Produktion und Logistik, VDI 3431, Bending of profiles: testing notes for profile bending elements, technical standard, 2016. https://www.dinmedia.de/de/technische-regel/vdi-3431/257014788.

Google Scholar

[21] M.P.d. Carmo, Differential geometry of curves and surfaces, Revised & updated second edition, Dover PublicationsInc, Mineola, New York, 2016.

Google Scholar
