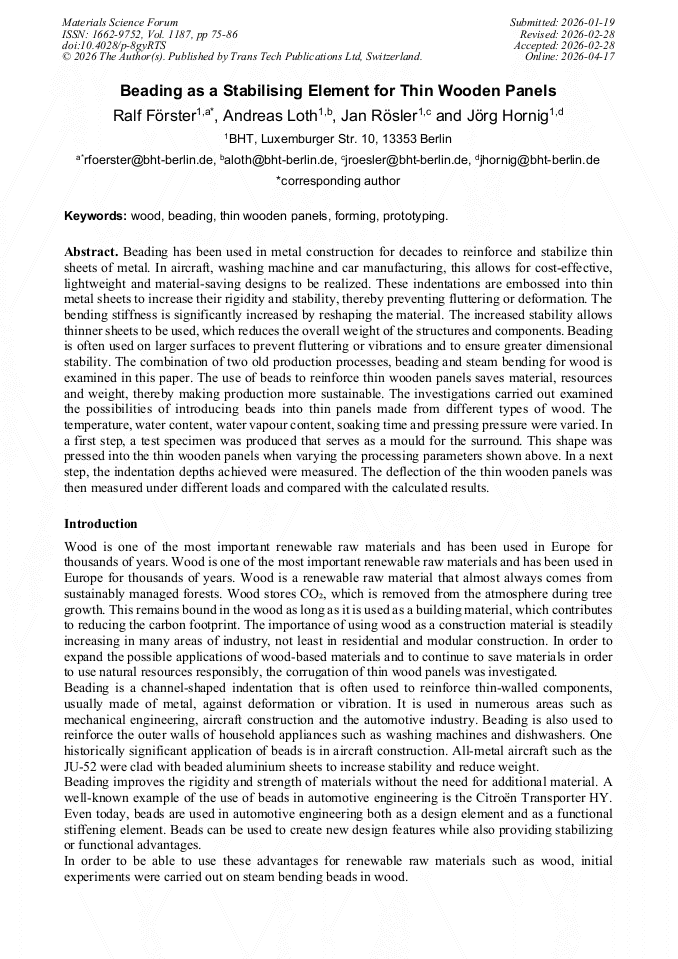

Beading as a Stabilising Element for Thin Wooden Panels
Abstract:
Beading has been used in metal construction for decades to reinforce and stabilize thin sheets of metal. In aircraft, washing machine and car manufacturing, this allows for cost-effective, lightweight and material-saving designs to be realized. These indentations are embossed into thin metal sheets to increase their rigidity and stability, thereby preventing fluttering or deformation. The bending stiffness is significantly increased by reshaping the material. The increased stability allows thinner sheets to be used, which reduces the overall weight of the structures and components. Beading is often used on larger surfaces to prevent fluttering or vibrations and to ensure greater dimensional stability. The combination of two old production processes, beading and steam bending for wood is examined in this paper. The use of beads to reinforce thin wooden panels saves material, resources and weight, thereby making production more sustainable. The investigations carried out examined the possibilities of introducing beads into thin panels made from different types of wood. The temperature, water content, water vapour content, soaking time and pressing pressure were varied. In a first step, a test specimen was produced that serves as a mould for the surround. This shape was pressed into the thin wooden panels when varying the processing parameters shown above. In a next step, the indentation depths achieved were measured. The deflection of the thin wooden panels was then measured under different loads and compared with the calculated results.
Info:
Periodical:
Pages:
75-86
DOI:
Citation:
Online since:
April 2026
