Numerical and Experimental Design of a Step HPDC Mould for Process–Microstructure Correlation in Lightweight Component

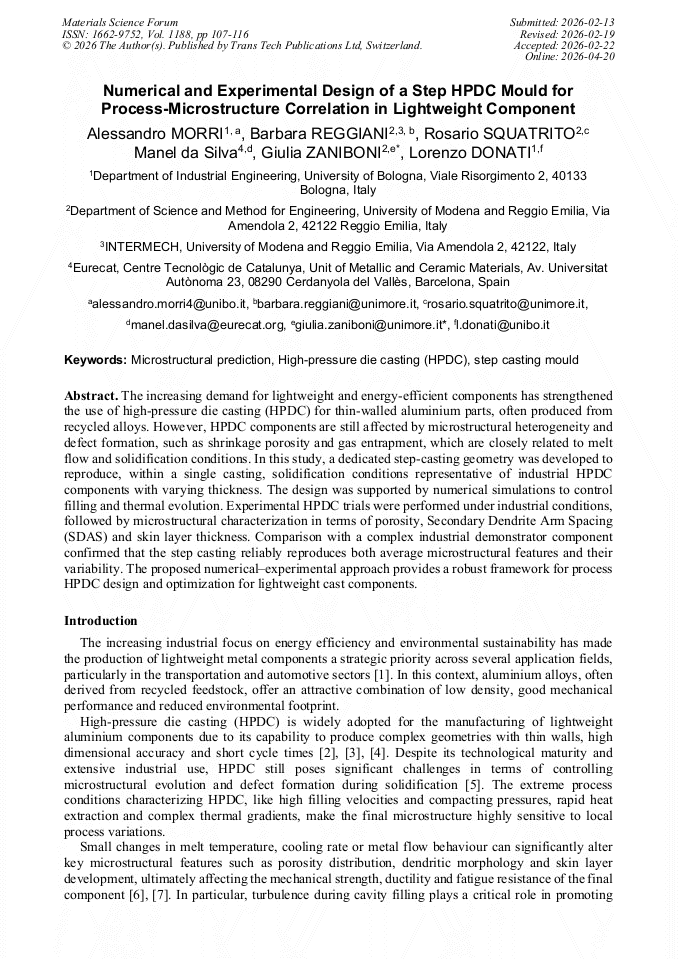

Article Preview
View Pdf By email

Abstract:

The increasing demand for lightweight and energy-efficient components has strengthened the use of high-pressure die casting (HPDC) for thin-walled aluminium parts, often produced from recycled alloys. However, HPDC components are still affected by microstructural heterogeneity and defect formation, such as shrinkage porosity and gas entrapment, which are closely related to melt flow and solidification conditions. In this study, a dedicated step-casting geometry was developed to reproduce, within a single casting, solidification conditions representative of industrial HPDC components with varying thickness. The design was supported by numerical simulations to control filling and thermal evolution. Experimental HPDC trials were performed under industrial conditions, followed by microstructural characterization in terms of porosity, Secondary Dendrite Arm Spacing (SDAS) and skin layer thickness. Comparison with a complex industrial demonstrator component confirmed that the step casting reliably reproduces both average microstructural features and their variability. The proposed numerical–experimental approach provides a robust framework for process HPDC design and optimization for lightweight cast components.

You have full access to the following eBook
Advanced Metal Casting Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1188)

Pages:

107-116

Online since:

April 2026

Authors:

Alessandro Morri, Barbara Reggiani, Rosario Squatrito, Manel da Silva, Giulia Zaniboni*, Lorenzo Donati

Keywords:

High-Pressure Die Casting, Microstructural Prediction, Step Casting Mould

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

* - Corresponding Author

References

[1] Mielke F, Sulik D, Fang X. Influence of high-pressure die casting parameters on bonding characteristics of aluminium-steel hybrid-castings for automotive lightweight structures. J Manuf Process 2025;143:351–68.

DOI: 10.1016/J.JMAPRO.2025.04.032

Google Scholar

[2] Graf A. Aluminum alloys for lightweight automotive structures. Materials, Design and Manufacturing for Lightweight Vehicles 2020:97–123.

DOI: 10.1016/B978-0-12-818712-8.00003-3

Google Scholar

[3] Yang J, Liu B, Shu D, Li H, Yang Q, Hu T, et al. Effect of Casting Pressure on Porosity, Microstructure, and Mechanical Properties of Large Die Casting Aluminum Alloy Parts. International Journal of Metalcasting 2025.

DOI: 10.1007/S40962-025-01641-4

Google Scholar

[4] Yang W, Puga H, Bolibruchová D, Matejka M, Pastirčák R, Podprocká R. Effect of Piston Velocity on Microstructural Consistency and Critical Regions in a High-Pressure Die Cast AlSi9Cu3(Fe) Alloy Component. Metals 2025, Vol 15, Page 1065 2025;15:1065.

DOI: 10.3390/MET15101065

Google Scholar

[5] Bonollo F, Gramegna N, Timelli G. High-pressure die-casting: Contradictions and challenges. JOM 2015; 67:901–8.

DOI: 10.1007/S11837-015-1333-8

Google Scholar

[6] I. Todaro, R. Squatrito, A. Morri, L. Tomesani (2010). Effects of cooling rate on microstructure in EN-AC43000 gravity castings and related T6 mechanical properties. SEATTLE: TMS Light Metals.

DOI: 10.1179/1743133615y.0000000022

Google Scholar

[7] Squatrito, Rosario & Todaro, Ivan & Ceschini, Lorella & Morri, Alessandro & Tomesani, Luca. (2011). Hydrogen and cooling rate effetcs on microporosity formation in the production of defect-controlled fatigue specimens. 121-128.

DOI: 10.1002/9781118062050.ch15

Google Scholar

[8] Jolly M, Katgerman L. Modelling of defects in aluminium cast products. Prog Mater Sci 2022; 123:100824.

DOI: 10.1016/J.PMATSCI.2021.100824

Google Scholar

[9] Niklas A. et al, Effect of solution heat treatment on gas porosity and mechanical properties in a die cast step part manufactured with a new AlSi10MnMg(Fe) secondary alloy.

DOI: 10.1016/j.msea.2016.05.024

Google Scholar

[10] Dalai B. et al, Inhomogeneous Skin Formation and Its Effect on the Tensile Behavior of a High Pressure Die Cast Recycled Secondary AlSi10MnMg(Fe) Alloy.

DOI: 10.1007/s11661-024-07631-1

Google Scholar
