Cross-Linked Epoxidized Natural Rubber (ENR) from Reused Palm Oil

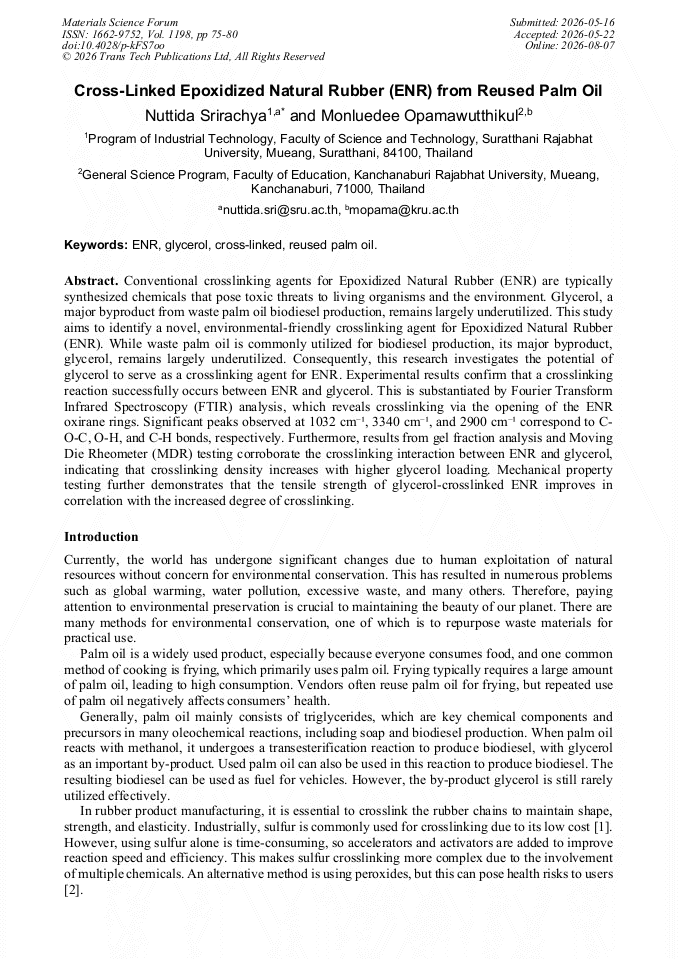

Article Preview

Abstract:

Conventional crosslinking agents for Epoxidized Natural Rubber (ENR) are typically synthesized chemicals that pose toxic threats to living organisms and the environment. Glycerol, a major byproduct from waste palm oil biodiesel production, remains largely underutilized. This study aims to identify a novel, environmental-friendly crosslinking agent for Epoxidized Natural Rubber (ENR). While waste palm oil is commonly utilized for biodiesel production, its major byproduct, glycerol, remains largely underutilized. Consequently, this research investigates the potential of glycerol to serve as a crosslinking agent for ENR. Experimental results confirm that a crosslinking reaction successfully occurs between ENR and glycerol. This is substantiated by Fourier Transform Infrared Spectroscopy (FTIR) analysis, which reveals crosslinking via the opening of the ENR oxirane rings. Significant peaks observed at 1032 cm⁻¹, 3340 cm⁻¹, and 2900 cm⁻¹ correspond to C-O-C, O-H, and C-H bonds, respectively. Furthermore, results from gel fraction analysis and Moving Die Rheometer (MDR) testing corroborate the crosslinking interaction between ENR and glycerol, indicating that crosslinking density increases with higher glycerol loading. Mechanical property testing further demonstrates that the tensile strength of glycerol-crosslinked ENR improves in correlation with the increased degree of crosslinking.

You might also be interested in these eBooks
Structural Metals, Polymer and Composite Materials View Preview

Info:

Periodical:

Materials Science Forum (Volume 1198)

Pages:

75-80

DOI:

https://doi.org/10.4028/p-kFS7oo

Citation:

Cite this paper

Online since:

August 2026

Authors:

Nuttida Srirachya*, Monluedee Opamawutthikul

Keywords:

Cross-Linked, ENR, Glycerol, Reused Palm Oil

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] W. Song, Z. Wang, M. Wang, G. Zhong, F. Li, X. Zhong, Y. Lu and L. Zhang. Comparative study of vulcanization system on strain-induced crystallization of epoxidized natural rubber, Polymer. 274 (2023) 1-7.

DOI: 10.1016/j.polymer.2023.125911

Google Scholar

[2] N. Srirachya, T. Kobayashi. K. Boonkerd. Thermoreversible cross-linking of maleated natural rubber with glycerol. J. of Elastomers & Plastics. 51(5) (2018) 1-15.

DOI: 10.1177/0095244318790616

Google Scholar

[3] N. Srirachya, T. Kobayashi. K. Boonkerd. An alternative crosslinking of epoxidized natural rubber with maleic anhydride. Key engineering materials. 748 (2017) 84-90.

DOI: 10.4028/www.scientific.net/kem.748.84

Google Scholar

[4] S. S. Banerjee, S. Banerjee, S. Wiebner, A. Janke, G. Heinrich and A. Das. A new route to highly stretchable and soft inorganic-organic hybrid elastomers using polydimethylsiloxane as crosslinker of epoxidized natural rubber. Macromol. Mater. Eng. 306 (2021) 1-12.

DOI: 10.1002/mame.202100380

Google Scholar

[5] O. Somseemee, P. Saeoui, F. T. schevenels, C. Siriwong. Enhanced interfacial interaction between modified cellulose nanocrystals and epoxidized natural rubber via ultrabiolet irradiation. Scientific reports. 12 (2022) 1-13.

DOI: 10.1038/s41598-022-10558-5

Google Scholar

[6] G. S. Er, M. F. Yhaya, P. B. Teik. Charaterisation and adhesion properties of UV-cured natural rubber-based adhesives. International journal of adhesion & adhesives. 123 (2023) 1-9.

DOI: 10.1016/j.ijadhadh.2023.103347

Google Scholar

[7] A. S. Hahim, S. Kohjiya. Preparation and properties of epoxidized natural rubber network crosslinked by ring opening reaction. Polymer gel and networks. 2 (1994) 219-227.

DOI: 10.1016/0966-7822(94)90006-x

Google Scholar

[8] M. A. A. Hadi, N. A. A. Rahim, R. Hazan, C. K. Yeoh. Relationships between crosslinking behaviour and morphological development in PLA/ENR blends using maleic anhydride as a coupling and TPV agent. J. of polymer research. 370 (2024) 1-12.

DOI: 10.1007/s10965-024-04214-x

Google Scholar

[9] K. Damampai, S. Pichaiyut, K. W. stockelhuber, A. Das, C. Nakason. Ferric ions crosslinked epoxidized natural rubber filled with carbon nanotubes and conductive carbon black hybrid fillers. Polymers. 14 (2022) 1-17.

DOI: 10.3390/polym14204392

Google Scholar

[10] T. Siriwas, S. Pichaiyut, C. Nakason. Enhancing the properties of epoxidized natural rubber-graphene nanocomposites through crosslinking with imidazole-activated dicarboxylic acid-cured system. Industrial crops & products. 219 (2024) 1-14.

DOI: 10.1016/j.indcrop.2024.119040

Google Scholar

[11] K. Bittimas, S. Pichaiyut, C. Nakason. Coordination crosslinks of epoxidized natural rubber with reactive zing chloride. 18(11) (2024) 1149-1163.

DOI: 10.3144/expresspolymlett.2024.87

Google Scholar

[12] B. T. Poh and Y. Y. Teh. Dependence of adhesion property of epoxidized natural rubber (ENR 25) / ethylene-propylene-diene rubber blend adhesives crosslinked by benzoyl peroxide. J. of coatings. 2014 (2014) 1-7.

DOI: 10.1155/2014/526369

Google Scholar

[13] B. Algaily, W. Kaewsakul, S. S. Sarkawi and E. Kalkornsurapranee. Enabling reprocessability of ENR-based vulcanisates by thermochemically exchangeable ester crosslinks. Plastics, rubber and composites. 7 (2021) 315-328.

DOI: 10.1080/14658011.2021.1896093

Google Scholar
