Wettability Testing of Stranded Aluminium Conductors

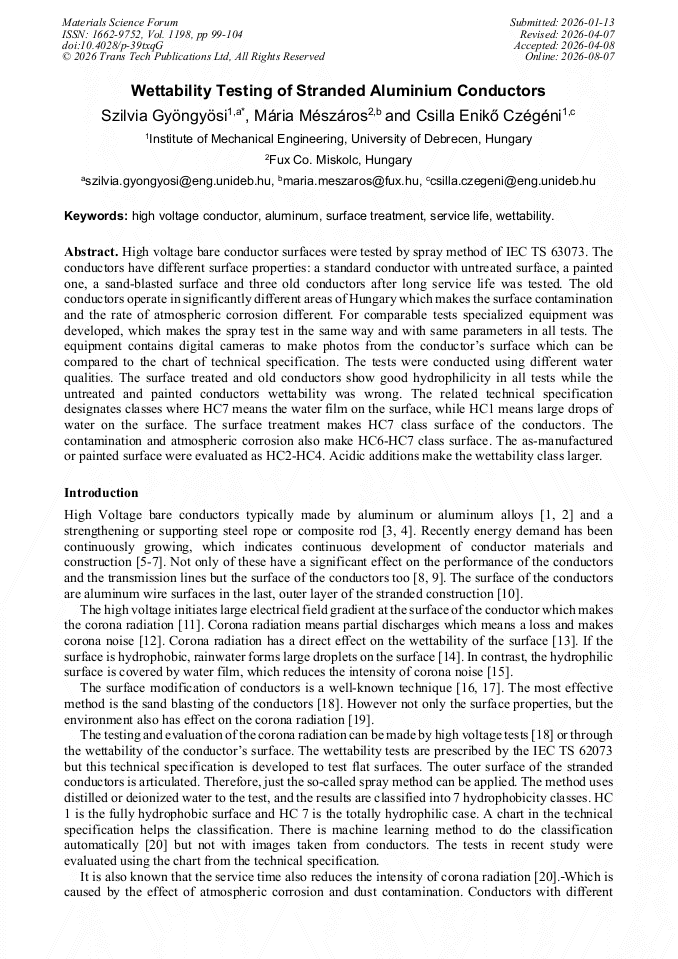

Article Preview

Abstract:

High voltage bare conductor surfaces were tested by spray method of IEC TS 63073. Theconductors have different surface properties: a standard conductor with untreated surface, a paintedone, a sand-blasted surface and three old conductors after long service life was tested. The oldconductors operate in significantly different areas of Hungary which makes the surfacecontamination and the rate of atmospheric corrosion different. For comparable tests specializedequipment was developed, which makes the spray test in the same way and with same parameters inall tests. The equipment contains digital cameras to make photos from the conductor’s surfacewhich can be compared to the chart of technical specification. The tests were conducted usingdifferent water qualities. The surface treated and old conductors show good hydrophilicity in alltests while the untreated and painted conductors wettability was wrong. The related technicalspecification designates classes where HC7 means the water film on the surface, while HC1 meanslarge drops of water on the surface. The surface treatment makes HC7 class surface of theconductors. The contamination and atmospheric corrosion also make HC6-HC7 class surface. Theas-manufactured or painted surface were evaluated as HC2-HC4. Acidic additions make thewettability class larger.

You might also be interested in these eBooks
Structural Metals, Polymer and Composite Materials View Preview

Info:

Periodical:

Materials Science Forum (Volume 1198)

Pages:

99-104

DOI:

https://doi.org/10.4028/p-39txqG

Citation:

Cite this paper

Online since:

August 2026

Authors:

Szilvia Gyöngyösi, Mária Mészáros*, Csilla Enikő Czégéni

Keywords:

Aluminum, High Voltage Conductor, Service Life, Surface Treatment, Wettability

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] G. E. Totten, D. S. MacKenzie ed.: Handbook of Aluminum, Marcel Dekker Inc., Basel, (2003)

Google Scholar

[2] S. L. Cai, J. C. Wan, Y. J. Hao, C. C. Koch: Dual Gradient Microstructure to Simultaneously Improve Strength and Electrical Conductivity of Aluminum Wire, Materials Science and Engineering: A. 783 (2020) pp.1-14

DOI: 10.1016/j.msea.2020.139308

Google Scholar

[3] L. Kirkpatrick ed.: Aluminum Electrical Conductor Handbook, the Aluminum Association, Washington, (1989)

Google Scholar

[4] CTC Global: Engineering Transmission Lines with High Capacity Low Sag ACCC Conductors, Engineering Manual, CTC Global, (2011)

Google Scholar

[5] G. Langelandsvik, T. Furu, O. Reiso, H. J. Roven: Effects of Iron Precipitation and Novel Metal Screw Extrusion on Electrical Conductivity and Properties of AA1370 Aluminium, Materials Science and Engineering: B. 254 (2020) pp.1-8

DOI: 10.1016/j.mseb.2020.114505

Google Scholar

[6] P. Koprowski, M. Lech-Grega, Ł. Wodziński, B. Augustyn, S. Boczkal, M.Ożóg, P. Uliasz, J. Żelechowski, W.Szymański: The Effect of Low Content Additives on Strength, Resistivity and Microstructural Changes in Wire Drawing of 1xxx Series Aluminium Alloys for Electrical Purposes, Materialstoday Communications. 24 (2020) pp.1-12

DOI: 10.1016/j.mtcomm.2020.101039

Google Scholar

[7] S. Wan, H. Zhou, L. Li, C. Wang, M. De Filippo, Fan Gong: Degradation of artificially corroded galvanized high-strength steel wires: Corrosion morphology and mechanical behavior, Construction and Building Materials. 346 (2022)

DOI: 10.1016/j.conbuildmat.2022.128387

Google Scholar

[8] L. Q. Khai, H. S. Lee: Efficiency Assessment of Technologies Implementation in Vietnam Power Transmission System, Energy Reports. 8 (2022) pp.16-22

DOI: 10.1016/j.egyr.2022.01.026

Google Scholar

[9] Z. Engel, T. Wszolek: Audible Noise of Transmission Lines Caused by the Corona Effect: Analysis, Modelling, Prediction, Applied Acoustics. 47 (1996) pp.149-163

DOI: 10.1016/0003-682x(95)00041-7

Google Scholar

[10] Konstatin O. Papailiou ed.: Overhead Lines, Cigré Green Books, Springer, (2017)

Google Scholar

[11] K. Tonmitr, T. Ratanabuntha: Comparison of power loss due to corona phenomena model with Peek's formula in high voltage 115 kV and 230 kV system, Procedia Computer Science. 86 (2016) pp.385-388

DOI: 10.1016/j.procs.2016.05.037

Google Scholar

[12] B. Wan, W. He, C. Pei, X. Wu, Y. Chen, Y. Zhang, L. Lan: Audible Noise Performance of Conductor Bundles Based on Cage Test Results and Comparison with Long Term Data, Energies. 10 (2017) pp.1-12

DOI: 10.3390/en10070958

Google Scholar

[13] N. Ali, J. A. Teixeira, A. Addali, F. Al-Zubi, E. Shaban, I. Behbehani: The effect of aluminum nanocoating and water pH value on the wettability behavior of an aluminum surface, Applied Surface Science. 443 (2018) pp.24-30

DOI: 10.1016/j.apsusc.2018.02.182

Google Scholar

[14] D. E. Selvaraj, K. Mohanadasse, C. P. Sugumaran, R. Vijayaraj: Application of Nano Coating to ACSR conductor for the Protection of Transmission lines against Solar Storms, Surface Flashovers, Corona and Overvoltages, J Electr Eng Technol. 10 (2015) pp.2070-2076

DOI: 10.5370/jeet.2015.10.5.2070

Google Scholar

[15] A. E. Benchabane, P. Barkóczy: Effects of surface treating to the properties or railway contact wires In: S. Bodzás, T Mankovits ed.: Proceedings of the 5th International Scientific Conference on Advances in Mechanical Engineering (ISCAME 2017), Debrecen, University of Debrecen Faculty of Engineering, p.650, (2017)

Google Scholar

[16] K. A. Emelyanenko, A. G. Domantovsky, P. S. Platonov, P. S. Kochenkov, A. M. Emelyanenko, L. B. Boinovich: The Durability of Superhydrophobic and Slippery Liquid Infused Porous Surface Coatings under Corona Discharge Characteristic of the Operation of High Voltage Power Transmission Lines, Energy Reports. 8 (2022) pp.6837-6844

DOI: 10.1016/j.egyr.2022.05.035

Google Scholar

[17] P. Barkóczy, A. E. Benchabane, Sz. Gyöngyösi, L. Juhász, T. Kaselov, U. Dawidowski: mechanical behivor of a titanium-oxide layer on aluminium wires during conductor manufacturing, In: G. Szabó, M. Szűcs ed.: XVI. Képlékenyalakító Konferencia, Miskolci Egyetem Műszaki Anyagtudományi Kar, pp.81-85., (2018)

Google Scholar

[18] Máté Sepsi, Anas Jawabreh, György Nemcsik, Péter, Barkóczy: The Effect of Surface Treatment on the Audible Noise of a High Voltage Conductor: Hungarian Materials and Chemical Sciences and Engineering. 47 (2023) pp.63-71

DOI: 10.32974/mse.2022.006

Google Scholar

[19] James C. Matthews: The effect of weather on corona ion emission from AC high voltage power lines, Atmospheric Research, vol. 113, pp.68-79, (2012)

Google Scholar

[20] Christos-Christodoulos A. Kokalis, Thanos Tasakos, Vassiliki T. Kontargyri, Giorgos Siolas, Ioannis F. Gonos: Hydrophobicity classification of composite insulators based on convolutional neural networks Engineering Applications of Artificial Intelligence. 91 (2020)

DOI: 10.1016/j.engappai.2020.103613

Google Scholar
