Enhancement of Plasticity in Ti-Based Bulk Metallic Glass

H.J. Chang; Won Tae Kim; Do Hyang Kim

doi:10.4028/www.scientific.net/MSF.475-479.3409

Paper Titles

Investigation of the Bulk Nd_60-xDy_xFe₃₀Al₁₀ (x=0, 2, 5) Amorphous Alloys
p.3393

Fabrication of Fe-Based Glassy Cores with High Saturation Magnetization and Good Soft Magnetic Properties by Spark Plasma Sintering
p.3397

Scanning Anomalous Small-Angle Scattering as a Tool to Examine Welded Bulk Glass
p.3401

Glass-Forming Ability and Mechanical Properties of Fe-Ni-Zr-Si-B Bulk Glassy Alloys
p.3405

Enhancement of Plasticity in Ti-Based Bulk Metallic Glass
p.3409

Effect of Alloy Composition on the Glass Forming Ability in Ca-Mg-Zn Alloy System
p.3415

Synthesis of Cu-Based Bulk Metallic Glass Matrix Composites by Warm Processing of Gas Atomized Powders
p.3419

Hole Punching onto the Zr₆₅Al₁₀Ni₁₀Cu₁₅ BMG Sheet Fabricated by Squeeze Casting
p.3423

Development of Ni-Nb-Ta Metallic Glass Particle Reinforced Al Based Matrix Composites
p.3427

HomeMaterials Science ForumMaterials Science Forum Vols. 475-479Enhancement of Plasticity in Ti-Based Bulk...

Enhancement of Plasticity in Ti-Based Bulk Metallic Glass

Abstract:

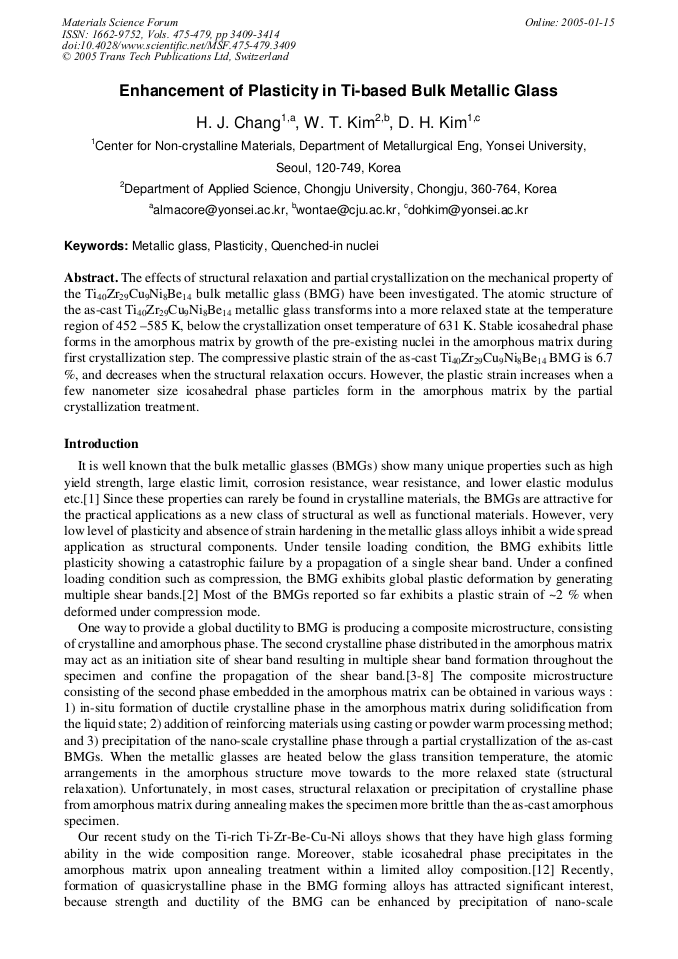

The effects of structural relaxation and partial crystallization on the mechanical property of the Ti40Zr29Cu9Ni8Be14 bulk metallic glass (BMG) have been investigated. The atomic structure of the as-cast Ti40Zr29Cu9Ni8Be14 metallic glass transforms into a more relaxed state at the temperature region of 452 –585 K, below the crystallization onset temperature of 631 K. Stable icosahedral phase forms in the amorphous matrix by growth of the pre-existing nuclei in the amorphous matrix during first crystallization step. The compressive plastic strain of the as-cast Ti40Zr29Cu9Ni8Be14 BMG is 6.7 %, and decreases when the structural relaxation occurs. However, the plastic strain increases when a few nanometer size icosahedral phase particles form in the amorphous matrix by the partial crystallization treatment.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 475-479)

Pages:

3409-3414

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.475-479.3409

Citation:

Cite this paper

Online since:

January 2005

Authors:

H.J. Chang, Won Tae Kim, Do Hyang Kim

Keywords:

Metallic Glass, Plasticity, Quenched-In Nuclei

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T.R. Anantharaman : Metallic glasses; Production, Proterites and Applications (Trans tech publications, Switzerland 1984).

Google Scholar

[2] F.E. Luborsky : Amorphous Metallic Alloys (Butterworths Monographs in materials UK, 1983).

Google Scholar

[3] J. Eckert, A. Reger-Leonhard, B. Weiß and M. Heilmaier: Mater. Sci. Eng., A301, (2001), p.1.

Google Scholar

[4] A. Inoue, T. Zhang, M.W. Chen and T. Sakurai: J. Mater. Res., Vol. 15, (2000), p.2195.

Google Scholar

[5] H. Choi-Yim, R. Busch, U. Köster and W.L. Johnson: Acta mater., Vol. 47, (1999), p.2455.

Google Scholar

[6] R.D. Conner, R.B. Dandliker and W.L. Johnson: Acta mater., Vol. 46, (1998), p.6189.

Google Scholar

[7] H. Choi-Yim, W.L. Johnson: Appl. Phys. Lett., Vol. 71, (1997), p.3808.

Google Scholar

[8] C.C. Hays, C.P. Kim, W.L. Johnson: Phys. Rev. Lett., Vol. 84, (2000), p.2901.

Google Scholar

[9] A. Inoue, T. Zhang, J. Saida, and M. Matsushita: Mater. Trans. JIM, Vol. 41, (2000), p.1511.

Google Scholar

[10] A. Inoue, C. Fan, J. Saida and T. Zhang: Sci. Tech. Advanced Materials, Vol. 1, (2000), p.73.

Google Scholar

[11] L.Q. Xing, J. Eckert, and L. Schultz: NanoStructured materials, Vol. 12, (1999), p.503.

Google Scholar

[12] Y.C. Kim, J.M. Park, J.H. Na, J.K. Lee, W.T. Kim, and D.H. Kim: Appl. Phys. Lett., Vol. 83, 15, (2003), p.3093.

Google Scholar

[13] A. Inoue, H. Kimura, and S. Yamaura: Met. Mater. -Int., Vol. 9, No. 6 (2003), p.527.

Google Scholar

[14] H.S. Chen: Rep. Prog. Phys., Vol. 43, (1980), p.353.

Google Scholar
