Investigation of the Bulk Nd60-xDyxFe30Al10 (x=0, 2, 5) Amorphous Alloys

Hui Xu; Xiao Hua Tan; Nannan Qi; Qing Wang; Yuanda Dong

doi:10.4028/www.scientific.net/MSF.475-479.3393

Paper Titles

MOCVD Growth and Annealing of Gallium Oxide Thin Film and Its Structural Characterization
p.3377

Formation and Optimization of Cu-Based Cu-Zr-Al Bulk Metallic Glasses
p.3381

Crystallization Kinetics of Zr₆₅Ni₂₅Ti₁₀ Metallic Glass Alloy
p.3385

Influence of Nb on the Interface Structure of Tungsten Fiber Reinforced Zr-Based Bulk Metallic Glass Composites
p.3389

Investigation of the Bulk Nd_60-xDy_xFe₃₀Al₁₀ (x=0, 2, 5) Amorphous Alloys
p.3393

Fabrication of Fe-Based Glassy Cores with High Saturation Magnetization and Good Soft Magnetic Properties by Spark Plasma Sintering
p.3397

Scanning Anomalous Small-Angle Scattering as a Tool to Examine Welded Bulk Glass
p.3401

Glass-Forming Ability and Mechanical Properties of Fe-Ni-Zr-Si-B Bulk Glassy Alloys
p.3405

Enhancement of Plasticity in Ti-Based Bulk Metallic Glass
p.3409

HomeMaterials Science ForumMaterials Science Forum Vols. 475-479Investigation of the Bulk Nd60-xDyxFe30Al10 (x=0,...

Investigation of the Bulk Nd_60-xDy_xFe₃₀Al₁₀ (x=0, 2, 5) Amorphous Alloys

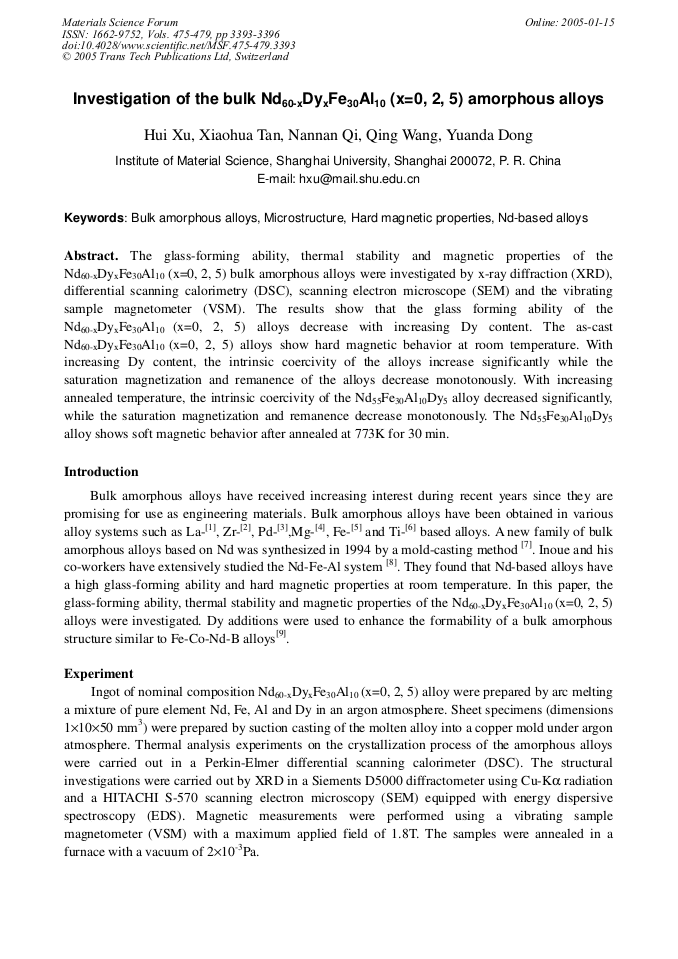

Abstract:

The glass-forming ability, thermal stability and magnetic properties of the Nd60-xDyxFe30Al10 (x=0, 2, 5) bulk amorphous alloys were investigated by x-ray diffraction (XRD), differential scanning calorimetry (DSC), scanning electron microscope (SEM) and the vibrating sample magnetometer (VSM). The results show that the glass forming ability of the Nd60-xDyxFe30Al10 (x=0, 2, 5) alloys decrease with increasing Dy content. The as-cast Nd60-xDyxFe30Al10 (x=0, 2, 5) alloys show hard magnetic behavior at room temperature. With increasing Dy content, the intrinsic coercivity of the alloys increase significantly while the saturation magnetization and remanence of the alloys decrease monotonously. With increasing annealed temperature, the intrinsic coercivity of the Nd55Fe30Al10Dy5 alloy decreased significantly, while the saturation magnetization and remanence decrease monotonously. The Nd55Fe30Al10Dy5 alloy shows soft magnetic behavior after annealed at 773K for 30 min.
