Internal Stress Measurement of Fiber Reinforced Composite by Neutron Diffraction with In Situ Low Temperature Stress Measurement System

Abstract:

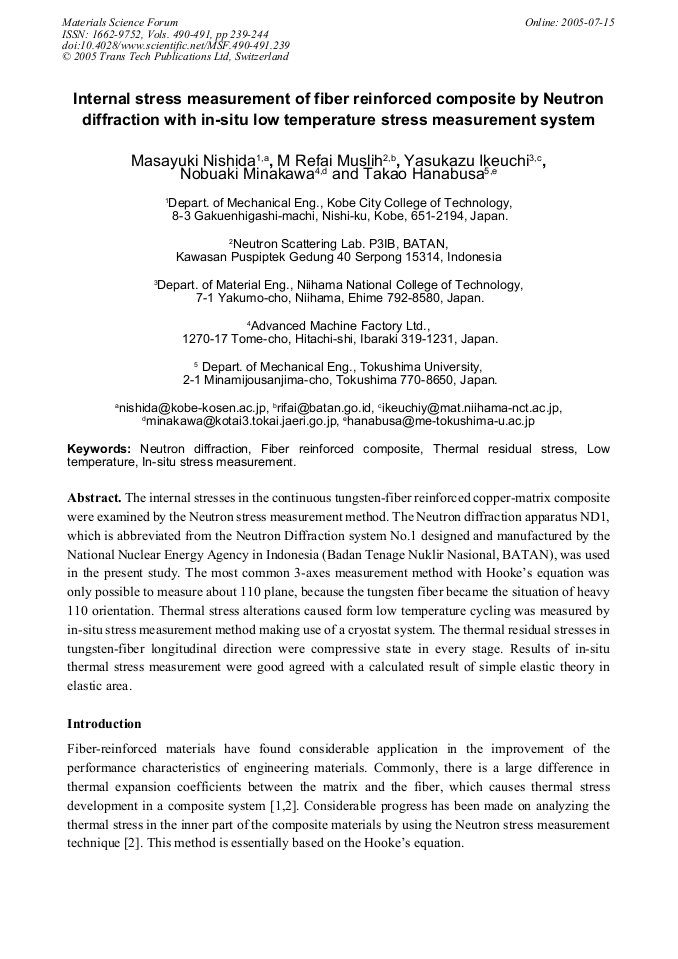

Article Preview

The internal stresses in the continuous tungsten-fiber reinforced copper-matrix composite were examined by the Neutron stress measurement method. The Neutron diffraction apparatus ND1, which is abbreviated from the Neutron Diffraction system No.1 designed and manufactured by the National Nuclear Energy Agency in Indonesia (Badan Tenage Nuklir Nasional, BATAN), was used in the present study. The most common 3-axes measurement method with Hooke’s equation was only possible to measure about 110 plane, because the tungsten fiber became the situation of heavy 110 orientation. Thermal stress alterations caused form low temperature cycling was measured by in-situ stress measurement method making use of a cryostat system. The thermal residual stresses in tungsten-fiber longitudinal direction were compressive state in every stage. Results of in-situ thermal stress measurement were good agreed with a calculated result of simple elastic theory in elastic area.

Info:

Periodical:

Materials Science Forum (Volumes 490-491)

Edited by:

Sabine Denis, Takao Hanabusa, Bob Baoping He, Eric Mittemeijer, JunMa Nan, Ismail Cevdet Noyan, Berthold Scholtes, Keisuke Tanaka, KeWei Xu

Pages:

239-244

DOI:

10.4028/www.scientific.net/MSF.490-491.239

Citation:

N. Masayuki et al., "Internal Stress Measurement of Fiber Reinforced Composite by Neutron Diffraction with In Situ Low Temperature Stress Measurement System", Materials Science Forum, Vols. 490-491, pp. 239-244, 2005

Online since:

July 2005
