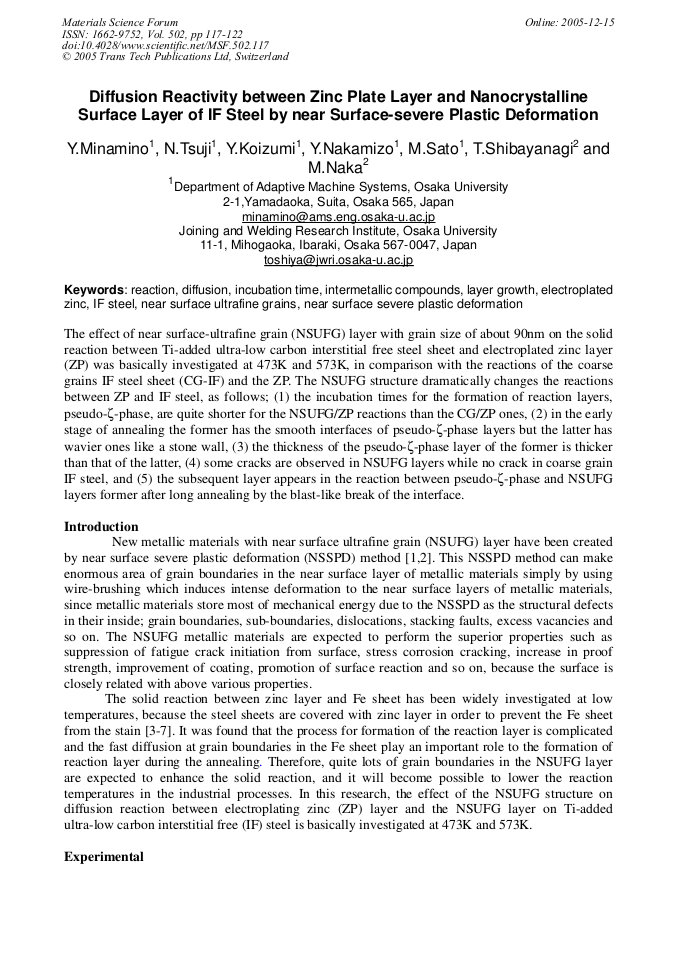

Diffusion Reactivity between Zinc Plate Layer and Nanocrystalline Surface Layer of IF Steel by Near Surface-Severe Plastic Deformation

Abstract:

The effect of near surface-ultrafine grain (NSUFG) layer with grain size of about 90nm on the solid reaction between Ti-added ultra-low carbon interstitial free steel sheet and electroplated zinc layer (ZP) was basically investigated at 473K and 573K, in comparison with the reactions of the coarse grains IF steel sheet (CG-IF) and the ZP. The NSUFG structure dramatically changes the reactions between ZP and IF steel, as follows; (1) the incubation times for the formation of reaction layers, pseudo-z-phase, are quite shorter for the NSUFG/ZP reactions than the CG/ZP ones, (2) in the early stage of annealing the former has the smooth interfaces of pseudo-z-phase layers but the latter has wavier ones like a stone wall, (3) the thickness of the pseudo-z-phase layer of the former is thicker than that of the latter, (4) some cracks are observed in NSUFG layers while no crack in coarse grain IF steel, and (5) the subsequent layer appears in the reaction between pseudo-z-phase and NSUFG layers former after long annealing by the blast-like break of the interface.

• Periodical: Materials Science Forum (Volume 502)
• Pages: 117-122
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.502.117
• Online since: December 2005
• Authors: Yoritoshi Minamino, Nobuhiro Tsuji, Yuichiro Koizumi, Y. Nakamizo, M. Sato, Toshiya Shibayanagi, Masaaki Naka
• Keywords: Diffusion, Electroplated Zinc, IF Steel, Incubation Time, Intermetallic Compound (IMC), Layer Growth, Near Surface Severe Plastic Deformation, Near Surface Ultrafine Grains, Reaction

References

[1] M. Sato, N. Tsuji, Y. Minamino and Y. Koizumi: Mater. Sci. Forum, 426-432, (2003) p.2753.

[2] M. Sato, N. Tsuji, Y. Minamino and Y. Koizumi: Sci. and Tech. of Advan. Mater. 5 (2004) p.145.

[3] S. Sasahara, K. Araki, S. Mori and A. Moriyama: J. JIM, 41 (1977) p.1121.

[4] M. Onishi, Y. Wakamatsu and T. Sasaki: J. JIM, 37 (1973) p.724.

[5] H. Miura, Y. Wakamatsu and M. Onishi: J. JIM, 39 (1975) p.903.

[6] A. Nishimoto, J. Inagaki and K. Nakaoka: Tetsu-to-Hagane, 72(1986) p.989.

[7] M. Saito, Y. Uchida, T. Kittaka, Y. Hirose and T. Hisamatsu: Tetsu-to-Hagane, 77(1991) p.947.

[8] J.P. Stark: Solid state diffusion (JohnWiley & Sons, New York 1976 pp.5-20).

[9] F. M, d'Heurle: J. Mater. Res. 3 (1988) p.167.

[10] C.V. Thompson: J. Mater. Res., 7 (1992) p.367.

[11] E.A. Brandes, Smithells Metals Reference Book, Sixth ed., Butterworths, London, (1983) pp.13-96.

[12] U. Goesele and K.N. Tu: J. Appl. Phys. 53 (1982) p.3252.

[13] P. Shewmon, Diffusion in solids, TMS, Pennsylvania, (1989) pp.189-222.

[14] P. Villars and L.D. Calvert, Pearson's Handbook of Crystallographic Data for Intermetallic Phases, (ASM International, Materials Park, OH, Second Edition, vol. 3, 1991 p.3420).

[15] W.B. Pearson, A Handbook of Lattice Spacings and Structures of Metals and Alloys, (Pergamon, Oxford, vol. 2 1967 p.254).
