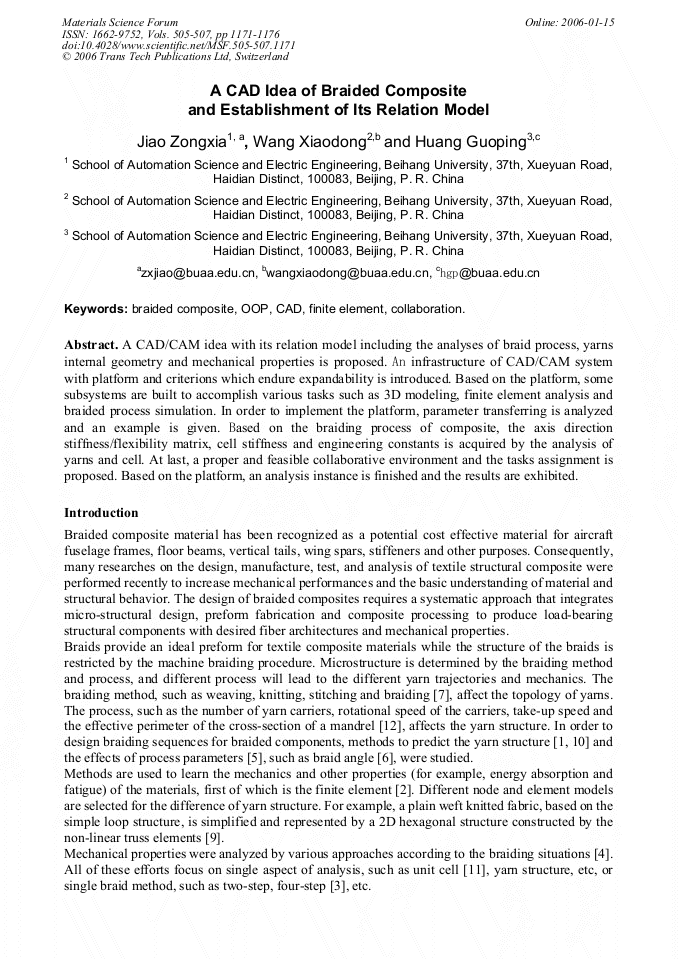

A CAD Idea of Braided Composite and Establishment of Its Relation Model

Abstract:

A CAD/CAM idea with its relation model including the analyses of braid process, yarns internal geometry and mechanical properties is proposed. An infrastructure of CAD/CAM system with platform and criterions which endure expandability is introduced. Based on the platform, some subsystems are built to accomplish various tasks such as 3D modeling, finite element analysis and braided process simulation. In order to implement the platform, parameter transferring is analyzed and an example is given. Based on the braiding process of composite, the axis direction stiffness/flexibility matrix, cell stiffness and engineering constants is acquired by the analysis of yarns and cell. At last, a proper and feasible collaborative environment and the tasks assignment is proposed. Based on the platform, an analysis instance is finished and the results are exhibited.

• Periodical: Materials Science Forum (Volumes 505-507)
• Pages: 1171-1176
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.505-507.1171
• Online since: January 2006
• Authors: Zong Xia Jiao, Xiao Dong Wang, Guo Ping Huang
• Keywords: Braided Composites, Collaboration, Computer Aided Design (CAD), Finite Element, OOP

References

[1] Terpant Guillaume, Krishnaswami Prakash and Wang Youqi: ASTM Special Technical Publication, n 1416, Composite Materilas: Testing, Design, and Acceptance Criteria, 2002, pp.188-199.

[2] D'Amato, E: Composite Structures, v 54, n 4, December, 2001, pp.467-475.

[3] Zheng, Xi-Tao: Chinese Journal of Aeronautics, v 16, n 3, August, 2003, pp.142-150.

[4] Sun, Huiyu: Computers and Structures, v 81, n 20, August, 2003, p.2021-(2027).

[5] Li Jialu and Sun Ying: Fuhe Cailiao Xuebao/Acta Materiae Compositae Sinica, v 20, n 2, April, 2003, pp.81-87.

[6] Zeng Tao, Wu Lin-zhi and Guo Li-cheng: Composite Structures, v 64, n 3-4, June, 2004, pp.399-404.

[7] Kamiya Ryuta, Cheeseman Bryan A, Popper Peter and Chou Tsu-Wei: Composites Science and Technology, v 60, n 1, Jan, 2000, pp.33-47.

[8] Pickett A.K.: Applied Composite Materials, v 9, n 1, January, 2002, pp.43-58.

[9] De Araujo Mario, Fangueiro Raul and Hong Hu: Materials Science Forum, v 455-456, Advanced Materials Forum II: Proceedings of the II International Materials Symposium: Materials 2003 and XI Encontro Sociedade Portugesa de Materials, 2003 ATERIAIS, 2004, pp.787-791.

DOI: 10.4028/www.scientific.net/msf.455-456.787

[10] Kessels J.F.A. and Akkerman R.: Composites Part A: Applied Science and Manufacturing, v 33, n 8, Aug 1, 2002, pp.1073-1081.

[11] Sun W., Lin F., Hu, X.: Composites Science and Technology, v 61, n 2, Feb, 2001, pp.289-299.

[12] Potluri P., Rawal A., Rivaldi M. and Porat, I.: Composites Part A: Applied Science and Manufacturing, v 34, n 6 SPEC., June, 2003, pp.481-492.

DOI: 10.1016/s1359-835x(03)00061-7
