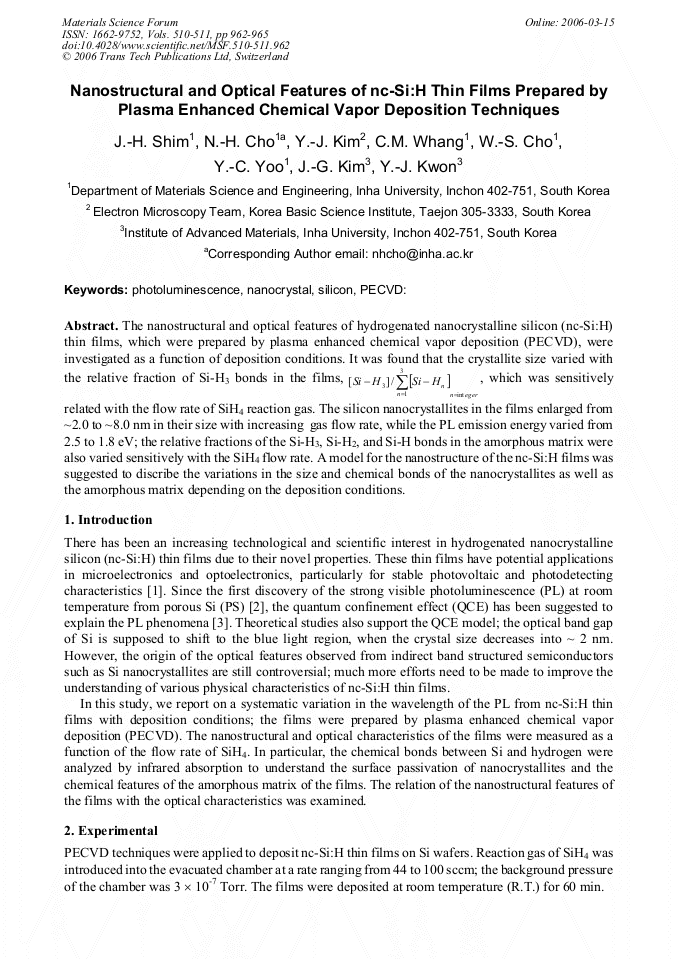

Nanostructural and Optical Features of nc-Si:H Thin Films Prepared by Plasma Enhanced Chemical Vapor Deposition Techniques

Abstract:

The nanostructural and optical features of hydrogenated nanocrystalline silicon (nc-Si:H) thin films, which were prepared by plasma enhanced chemical vapor deposition (PECVD), were investigated as a function of deposition conditions. It was found that the crystallite size varied with the relative fraction of Si-H3 bonds in the films, [ ] eger n n n H Si H Si int 3 1 3 / ] [ = = ∑ − − , which was sensitively related with the flow rate of SiH4 reaction gas. The silicon nanocrystallites in the films enlarged from ~2.0 to ~8.0 nm in their size with increasing gas flow rate, while the PL emission energy varied from 2.5 to 1.8 eV; the relative fractions of the Si-H3, Si-H2, and Si-H bonds in the amorphous matrix were also varied sensitively with the SiH4 flow rate. A model for the nanostructure of the nc-Si:H films was suggested to discribe the variations in the size and chemical bonds of the nanocrystallites as well as the amorphous matrix depending on the deposition conditions.

• Periodical: Materials Science Forum (Volumes 510-511)
• Pages: 962-965
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.510-511.962
• Online since: March 2006
• Authors: Jae Hyun Shim, Nam Hee Cho, Y.J. Kim, Chin Myung Whang, Won Seung Cho, Yeon Chul Yoo, J.G. Kim, Young Jae Kwon
• Keywords: Nanocrystal, PECVD, Photoluminescence (PL), Silicon

References

[1] G. Yue, D. Han, D.L. Williamson, J. Yang, K. Lord and S. Guha: Appl. Phys. Lett. Vol. 77 (2000), p.3185.

[2] L.T. Canham: Appl. Phys. Lett. Vol. 57 (1990), p.1046.

[3] A. Kux and M.B. Choin: Phys. Rev. B Vol. 51 (1995), p.17535.

[4] L. Ley: Solid State Commun. Vol. 39 (1981), p.625.

[5] J.P. Proot, C. Delerue and G. Allan: Appl. Phys. Lett. Vol. 61 (1992), p. (1948).

[6] J. Knights and R.A. Lujan: Appl. Phys. Lett. Vol. 35 (1979), p.244.

[7] G. Cicala, P. Capezzuto, G. Bruno, L. Schiarulli, G. Perna and V. Capozzi: J. Appl. Phys. Vol. 80 (1996), p.6564.

[8] U. Kroll, J. Meier, P. Torres, J. Pohl and A. Shah: J. Non-Cryst. Solids, Vol. 68 (1998), p.227.

[9] J. -H. Shim and N. -H. Cho: Appl. Sur. Sci. Vol. 234 (2004), p.268.

[10] G. Cicala, P. Capezzuto and G. Bruno: Thin Solid Films Vol. 59 (1999), p.337.

[11] P.F. Trwoga, A.J. Kenyon and C.W. Pitt: J. Appl. Phys. Vol. 83 (1998), p.3789.
