The Grain Structures in some 5000 Series Aluminium Alloys after Asymmetric Rolling and Annealing

Abstract:

Article Preview

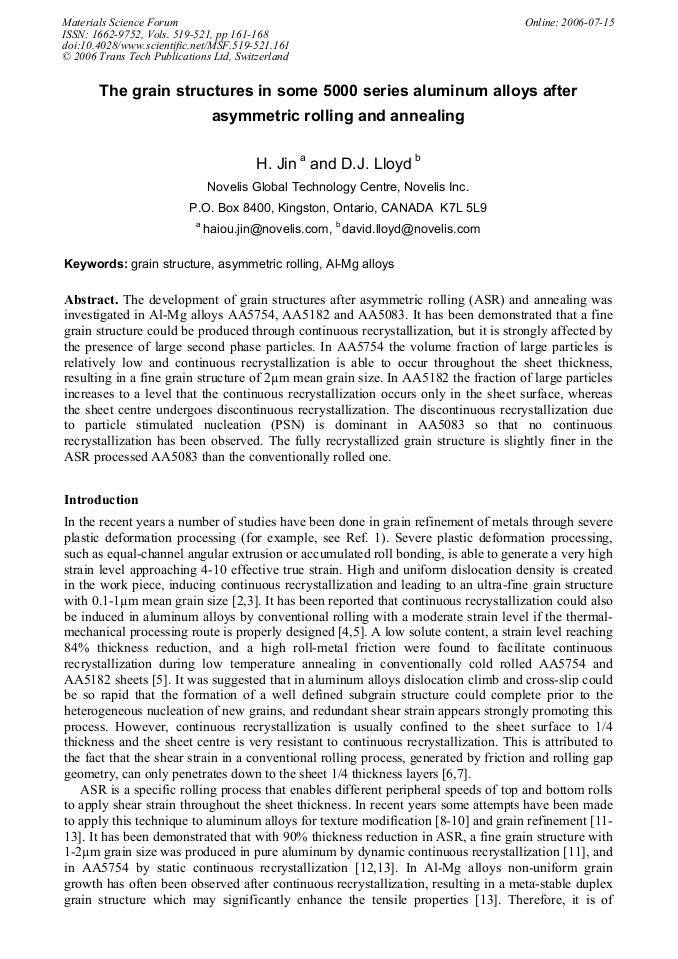

The development of grain structures after asymmetric rolling (ASR) and annealing was investigated in Al-Mg alloys AA5754, AA5182 and AA5083. It has been demonstrated that a fine grain structure could be produced through continuous recrystallization, but it is strongly affected by the presence of large second phase particles. In AA5754 the volume fraction of large particles is relatively low and continuous recrystallization is able to occur throughout the sheet thickness, resulting in a fine grain structure of 2μm mean grain size. In AA5182 the fraction of large particles increases to a level that the continuous recrystallization occurs only in the sheet surface, whereas the sheet centre undergoes discontinuous recrystallization. The discontinuous recrystallization due to particle stimulated nucleation (PSN) is dominant in AA5083 so that no continuous recrystallization has been observed. The fully recrystallized grain structure is slightly finer in the ASR processed AA5083 than the conventionally rolled one.

Info:

Periodical:

Materials Science Forum (Volumes 519-521)

Edited by:

W.J. Poole, M.A. Wells and D.J. Lloyd

Pages:

161-168

DOI:

10.4028/www.scientific.net/MSF.519-521.161

Citation:

H. O. Jin and D. J. Lloyd, "The Grain Structures in some 5000 Series Aluminium Alloys after Asymmetric Rolling and Annealing", Materials Science Forum, Vols. 519-521, pp. 161-168, 2006

Online since:

July 2006

Export:

Price:

$35.00

[1] Ultrafine Grained Materials III, ed. Y.T. Zhu, T.G. Langdon, R.Z. Valiev, S.L. Semiatin, D.H. Shin and T.C. Lowe, TMS, (2004).

[2] E. Hornbogen: Metall. Trans. A, Vol. 10 (1979), pp.947-972.

[3] R. D. Doherty: Met. Sci. J., Vol. 8 (1974), pp.132-142.

[4] S. Saimoto, S. Cao and H. Jin: Mater. Sci. Forum Vol. 396-402 (2002), pp.339-344.

[5] H. Jin and S. Saimoto: Mater. Sci. Tech., Vol. 19 (2003), pp.1197-1206.

[6] W. Truszkowski, J. Krol, and B. Major: Metall. Trans., Vol. 11A (1980), pp.749-758.

[7] W. Truszkowski, J. Krol, and B. Major: Metall. Trans., Vol. 13A (1982), pp.665-669.

[8] K.H. Kim and D.Y. Lee: Acta Mater. Vol. 49 (2001), pp.2583-2595.

[9] M.G. de Lomana, A.R. Imaz, J.T. Ariztondo, C. Zubillaga, C. Garcia-Rosales and J.G. Sevillano: Bol. Soc. Esp. Ceram. Vol. 43 (2004), pp.145-148.

[10] H. Jin and D.J. Lloyd: Mater. Sci. Eng. Vol. 399A (2005), pp.358-367.

[11] Q. Cui and K. Ohori: Mater. Sci. Tech. Vol. 16 (2000), pp.1095-1101.

[12] H. Jin and D.J. Lloyd: Metall. Trans. Vol. 35A (2004), pp.997-1006.

[13] H. Jin and D.J. Lloyd: Script. Mater. Vol. 50 (2004), pp.1319-1323.

[14] P. Van Houtte: The MTM-FHM Software System, Version 2, 2000, Katholieke Universiteit Leuven, Belgium.

[15] G.B. Burger, A.K. Gupta, P.W. Jeffrey and J.D. Lloyd: Mater. Charact. Vol. 35 (1995), pp.23-39.

[16] H. Jin and D.J. Lloyd: unpublished work.

In order to see related information, you need to Login.
