Microstructure and Texture Evolution during Annealing after Temper Rolling of a 2 wt.-% Silicon Electric Steel

Liana M.F.G. de Lima; Nelson B. Lima; Ronald Lesley Plaut; Angelo Fernando Padilha

doi:10.4028/www.scientific.net/MSF.539-543.3430

Paper Titles

Twinning and Detwinning during Cyclic Deformation of Mg Alloy AZ31B
p.3407

Website Publication of Calculation Computer Program and Visualized Pieces both of Bcc and Fcc Pencil Glide Theory for Deformation Texture
p.3414

Improvement in Specific Electric Resistance of Bi_1.5Pb_0.5Sr_1.7Y_0.5Co₂O_9-δ by Texture Development
p.3420

Application of Asymmetric Rolling to Texture Control of Silicon Steel
p.3424

Microstructure and Texture Evolution during Annealing after Temper Rolling of a 2 wt.-% Silicon Electric Steel
p.3430

Texture and Microstructure of Cold Rolled and Recrystallized Pure Niobium
p.3436

Texture Evolution during Diffusional Heat Treatment from Roll-Bonded Ti/Ni Laminates to TiNi Shape Memory Alloy Sheets
p.3442

Experimental and Numerical Investigation of Texture Development during Hot Rolling of Magnesium Alloy AZ31
p.3448

Multiscale Modelling of Plastic Deformation of Polycrystals: Implementation of Texture-Based Anisotropy in Engineering Applications (FE Codes for Forming, Prediction of Forming Limit Curves)
p.3454

HomeMaterials Science ForumMaterials Science Forum Vols. 539-543Microstructure and Texture Evolution during...

Microstructure and Texture Evolution during Annealing after Temper Rolling of a 2 wt.-% Silicon Electric Steel

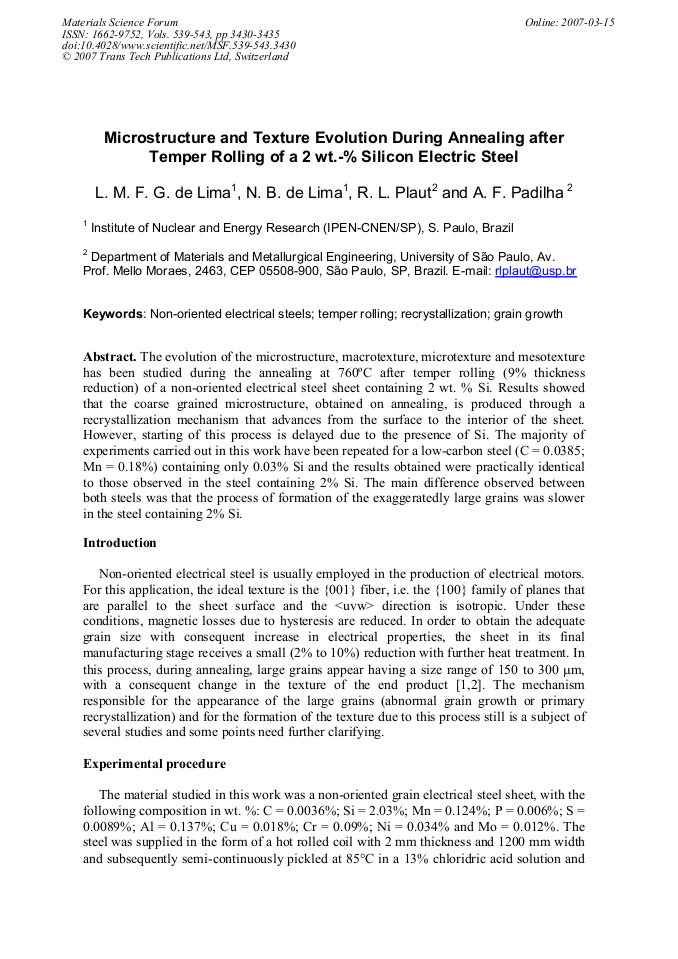

Abstract:

The evolution of the microstructure, macrotexture, microtexture and mesotexture has been studied during the annealing at 760°C after temper rolling (9% thickness reduction) of a non-oriented electrical steel sheet containing 2 wt. % Si. Results showed that the coarse grained microstructure, obtained on annealing, is produced through a recrystallization mechanism that advances from the surface to the interior of the sheet. However, starting of this process is delayed due to the presence of Si. The majority of experiments carried out in this work have been repeated for a low-carbon steel (C = 0.0385; Mn = 0.18%) containing only 0.03% Si and the results obtained were practically identical to those observed in the steel containing 2% Si. The main difference observed between both steels was that the process of formation of the exaggeratedly large grains was slower in the steel containing 2% Si.
