Effect of Hf Addition on High Temperature Properties of Ir-Containing Alloy Coatings

Abstract:

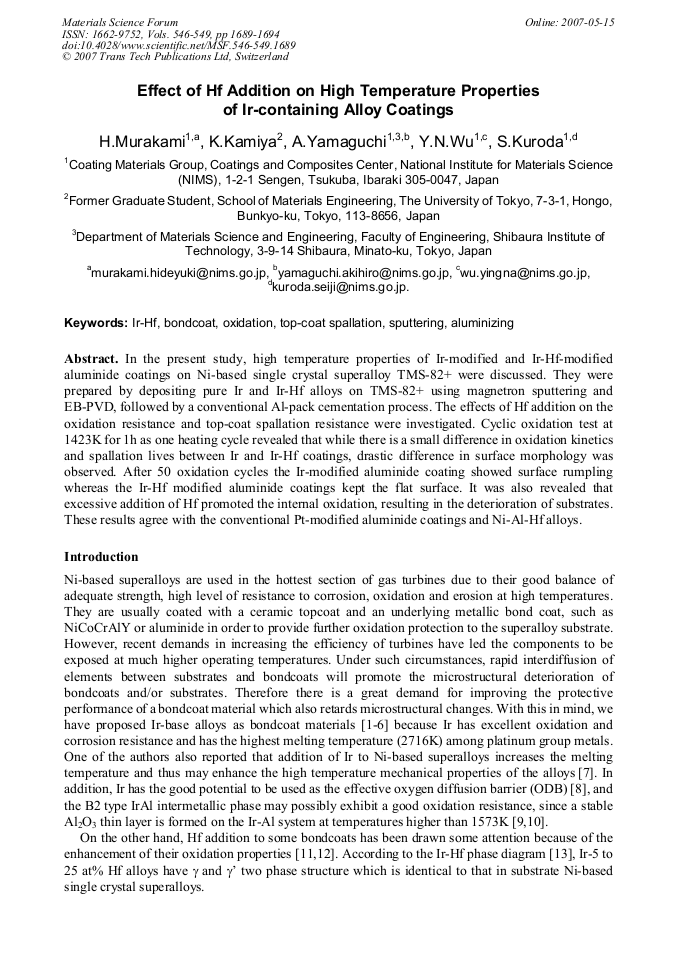

Article Preview

In the present study, high temperature properties of Ir-modified and Ir-Hf-modified aluminide coatings on Ni-based single crystal superalloy TMS-82+ were discussed. They were prepared by depositing pure Ir and Ir-Hf alloys on TMS-82+ using magnetron sputtering and EB-PVD, followed by a conventional Al-pack cementation process. The effects of Hf addition on the oxidation resistance and top-coat spallation resistance were investigated. Cyclic oxidation test at 1423K for 1h as one heating cycle revealed that while there is a small difference in oxidation kinetics and spallation lives between Ir and Ir-Hf coatings, drastic difference in surface morphology was observed. After 50 oxidation cycles the Ir-modified aluminide coating showed surface rumpling whereas the Ir-Hf modified aluminide coatings kept the flat surface. It was also revealed that excessive addition of Hf promoted the internal oxidation, resulting in the deterioration of substrates. These results agree with the conventional Pt-modified aluminide coatings and Ni-Al-Hf alloys.

Info:

Periodical:

Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.

Pages:

1689-1694

Citation:

H. Murakami et al., "Effect of Hf Addition on High Temperature Properties of Ir-Containing Alloy Coatings", Materials Science Forum, Vols. 546-549, pp. 1689-1694, 2007

Online since:

May 2007

Export:

Price:

$38.00

[1] F. Wu, H. Murakami and A. Suzuki: Surf. Coat. Technol. Vol. 168(2003), p.62.

[2] H. Murakami, T. Yano and S. Sodeoka: Mater. Trans. Vol. 45 (2004), p.2886.

[3] P. Kuppusami and H. Murakami: Surf. Coat. Technol. Vol. 186(2004), p.377.

[4] H. Murakami, A. Suzuki, F. Wu, P, Kuppusami and H. Harada, in Superalloys 2004, Edited. by K.A. Green, T.M. Pollock, H. Harada, TMS (2004), pp.589-596.

[5] A. Suzuki, M. Harada, Y. N. Wu and H. Murakami, Mater. Trans. 46(2005), P. 1760.

[6] Y. N. Wu, A. Suzuki, H. Murakami and S. Kuroda, Mater. Trans. 46(2005), P. 2176.

[7] H. Murakami, T. Honma, Y. Koizumi and H. Harada, in Superalloys 2000, Ed. by T.M. Pollock et al. TMS (2000), pp.747-756.

[8] H. Hosoda, S. Miyazaki and S. Hanada: Intermetallics Vol. 8(2000), p.1081.

[9] K.N. Lee and W.L. Worrell: Oxid. Met. Vol. 32(1989), p.357.

[10] T.C. Chou: J. Mater. Res. Vol. 5(1990), p.378.

[11] B. A. Pint, J. A. Haynes, K. L. More and I. G. Wright, in Superalloys 2004, Edited. by K.A. Green, T.M. Pollock, H. Harada, TMS (2004), pp.597-606.

[12] B. Gleeson, D. Sordelet and W. Wang, U.S. Patent application, Pub. No: US2004/0229075A1.

[13] T. B. Massalski: Binary Alloy Phase Diagrams (ASM International, 1990).

[14] T. Hino, T. Kobayashi, Y. Koizumi, H. Harada and T. Yamagata; in Superalloys 2000, Ed. by T.M. Pollock et al. TMS (2000), pp.729-736 (2000).
