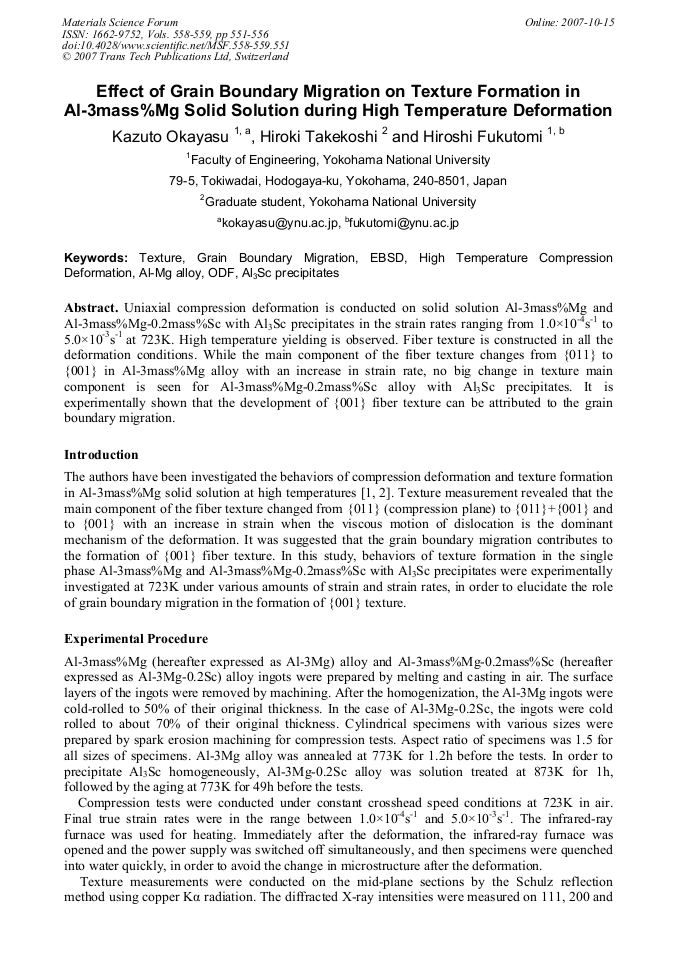

Effect of Grain Boundary Migration on Texture Formation in Al-3mass%Mg Solid Solution during High Temperature Deformation

Abstract:

Uniaxial compression deformation is conducted on solid solution Al-3mass%Mg and Al-3mass%Mg-0.2mass%Sc with Al3Sc precipitates in the strain rates ranging from 1.0×10-4s-1 to 5.0×10-3s-1 at 723K. High temperature yielding is observed. Fiber texture is constructed in all the deformation conditions. While the main component of the fiber texture changes from {011} to {001} in Al-3mass%Mg alloy with an increase in strain rate, no big change in texture main component is seen for Al-3mass%Mg-0.2mass%Sc alloy with Al3Sc precipitates. It is experimentally shown that the development of {001} fiber texture can be attributed to the grain boundary migration.

• Periodical: Materials Science Forum (Volumes 558-559)
• Pages: 551-556
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.558-559.551
• Online since: October 2007
• Authors: Kazuto Okayasu, Hiroki Takekoshi, Hiroshi Fukutomi
• Keywords: Al₃Sc Precipitate, Al-Mg Alloy, Electron Backscatter Diffraction (EBSD), Grain Boundary Migration, High Temperature Compression Deformation, ODF, Texture

References

[1] K. Okayasu and H. Fukutomi: Mater. Sci. Forum Vol. 495-497 (2005), p.579.

[2] K. Okayasu and H. Fukutomi: J. Japan Inst. Metals Vol. 70 (2006), p.562 (in Japanese).

[3] M. Dahms, H. J. Bunge: J. Appl. Cryst. Vol. 22 (1989), p.439.

[4] Ihara and Y. Miura: Mater. Sci. Eng. A Vol. 387-389 (2004), p.647.

[5] R. Horiuchi, H. Yoshinaga and S. Hama: Trans. Japan Inst. Metals Vol. 6, (1965), p.123.

[6] A. H. Cottrell and M. A. Jaswon: Proc. R. Soc. A Vol. 199 (1949), p.104.

[7] R. Horiuchi and M. Otsuka: Trans. Japan Inst. Metals Vol. 13 (1972), p.284.

[8] H. Oikawa, K. Honda and S. Ito: Mater. Sci. Eng. Vol. 64 (1984), p.237.

[9] M. Otsuka and R. Horiuchi: J. Japan Inst. Metals Vol. 36 (1972), p.809 (in Japanese).
