Effect of Reheating and End Cooling Temperature on Microstructure Refinement in a Low Carbon High Strength Nb-Ti Microalloyed Dual Phase Steel

L.D. Yao; Z.G. Li; Xing Feng Mao; Xue Li Tao; Kai Ming Wu

doi:10.4028/www.scientific.net/MSF.561-565.49

Paper Titles

Effect of Initial Grain Size on the Dynamic Recrystallization Behaviours of Austenite
p.33

Microstructure and Mechanical Properties of Ni-Free High Nitrogen Austenite Stainless Steels Fabricated by Mechanical Alloying Method
p.37

Enhancement of Fatigue Strength of SAE 1045 Steel by Tempering Treatment and Shot Peening
p.41

Effect of Lower Final Rolling Temperature on Mechanical Properties of V-N Microalloyed Mild Steel
p.45

Effect of Reheating and End Cooling Temperature on Microstructure Refinement in a Low Carbon High Strength Nb-Ti Microalloyed Dual Phase Steel
p.49

The Comparative Effectiveness of Nb Solute and NbC Precipitates at Impeding Grain Boundary Motion in Nb-Steels
p.53

Microstructural Features of a Ultra Low Carbon High Strength Acicular Ferrite Steel Thick Plate
p.57

The Study of Inner Surface Crack Formation of Seamless Modified 9Cr-1Mo Tube Rolled on Mandrel Mill and Its Application
p.61

The Nanohardness of Acicular Ferrite and Bainitic Ferrite in Low Carbon Microalloying Steel
p.65

HomeMaterials Science ForumMaterials Science Forum Vols. 561-565Effect of Reheating and End Cooling Temperature on...

Effect of Reheating and End Cooling Temperature on Microstructure Refinement in a Low Carbon High Strength Nb-Ti Microalloyed Dual Phase Steel

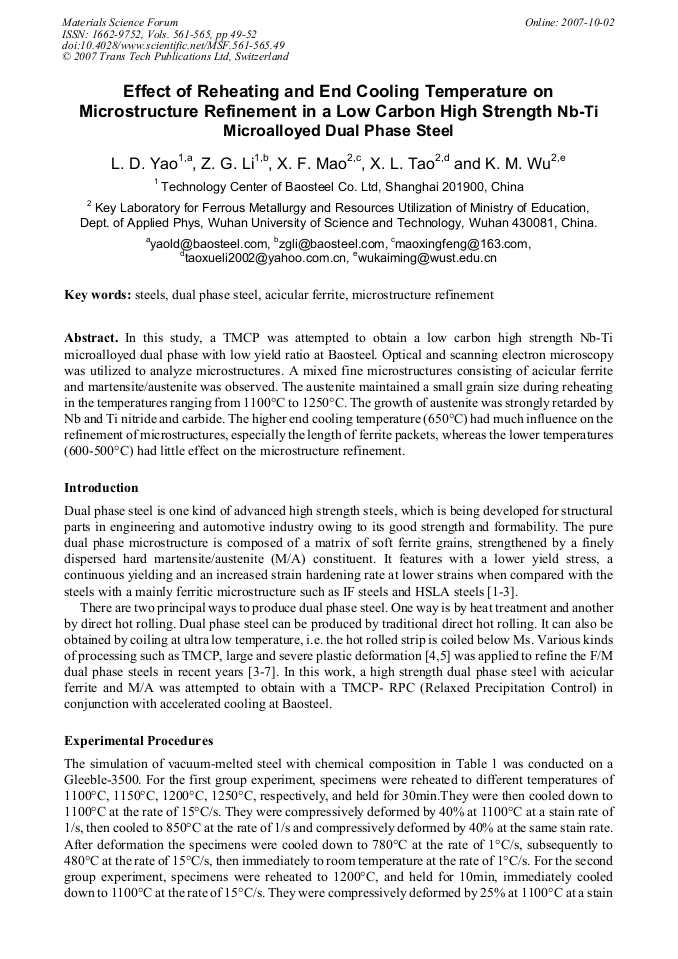

Abstract:

In this study, a TMCP was attempted to obtain a low carbon high strength Nb-Ti microalloyed dual phase with low yield ratio at Baosteel. Optical and scanning electron microscopy was utilized to analyze microstructures. A mixed fine microstructures consisting of acicular ferrite and martensite/austenite was observed. The austenite maintained a small grain size during reheating in the temperatures ranging from 1100°C to 1250°C. The growth of austenite was strongly retarded by Nb and Ti nitride and carbide. The higher end cooling temperature (650°C) had much influence on the refinement of microstructures, especially the length of ferrite packets, whereas the lower temperatures (600-500°C) had little effect on the microstructure refinement.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 561-565)

Pages:

49-52

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.561-565.49

Citation:

Cite this paper

Online since:

October 2007

Authors:

L.D. Yao, Z.G. Li, Xing Feng Mao, Xue Li Tao, Kai Ming Wu

Keywords:

Acicular Ferrite, Dual Phase Steel, Microstructural Refinement, Steel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] N. R. Bandyopadhyay and S. Datta: ISIJ Int. 44(2004), p.927.

Google Scholar

[2] J. Qu, W. Dabboussi, F. Hasssani, J. Nemes and S. Yue: ISIJ Int 45(2005), p.1741.

Google Scholar

[3] T. Waterschoot, K. Verbeken and B. C. De Cooman: ISIJ Int 46(2006), p.138.

Google Scholar

[4] J. Lis, A. K. Lis and C. Kolan: J Mater Processing Tech, 162-163 (2005), p.350.

Google Scholar

[5] B. Gardey, B. Bouvier and B. Bacroix: Metall Mater Trans, 36A(2005), p.2937.

Google Scholar

[6] K-T. Park, Y. K. Lee and D. H. Shin: ISIJ Int 45(2005), p.750.

Google Scholar

[7] S. Endo and M. Nagae: ISIJ Int 36(1996), p.95.

Google Scholar

[20] [40] [60] [80] 450 500 550 600 650 700 Length Width End cooling temperature, ℃ Lath/plate length and width, µm.

Google Scholar

[20] [40] [60] [80] 100 450 500 550 600 650 700 Length Width End cooling temperature, °C Packet length and width, µm Fig. 3 Relationship of ferrite packet length Fig. 4 Relationship of individual ferrite packet and width with end cooling temperature length and width with end cooling temperature.

DOI: 10.7717/peerj.10976/supp-9

Google Scholar
