For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
An Investigation of Hardness and Microstructure Evolution of Heat Treatable Aluminum Alloys during and after Equal-Channel Angular Pressing
p.333
Factors Influencing Ductility in Ultrafine-Grained Metals Processed by Equal-Channel Angular Pressing
p.341
Microstructure Development and Ductility of Ultra-Fine Grained Mg-Gd Alloy Prepared by High Pressure Torsion
p.353
Texture, Microstructure, and Ductility of Mg-Al-Zn Alloy after Equal Channel Angular Pressing
p.365
Mechanical Properties of Nanocrystalline Cu and Cu-Zn Using Tensile and Shear Punch Tests
p.373
Strength and Ductility of Nanostructured Composites with Co-Deformable Components
p.383
The Effect of Grain Size and Strain Rate on the Tensile Ductility of Bulk Nanostructured Metals and Alloys
p.393
Strength and Ductility in Electrodeposited Nanocrystalline Nickel
p.411
Long-Range Ordering: An Approach to Synthesize Nanoscale Ni-Mo-Based Superlattices with High Strength and High Ductility
p.421

Mechanical Properties of Nanocrystalline Cu and Cu-Zn Using Tensile and Shear Punch Tests

Article Preview

Abstract:

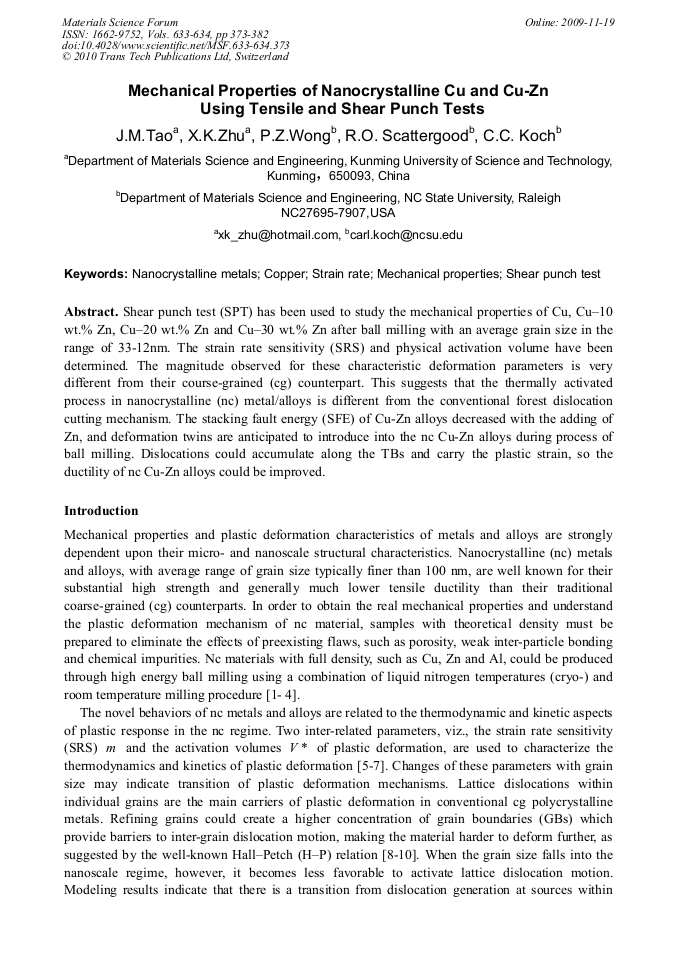

Shear punch test (SPT) has been used to study the mechanical properties of Cu, Cu–10 wt.% Zn, Cu–20 wt.% Zn and Cu–30 wt.% Zn after ball milling with an average grain size in the range of 33-12nm. The strain rate sensitivity (SRS) and physical activation volume have been determined. The magnitude observed for these characteristic deformation parameters is very different from their course-grained (cg) counterpart. This suggests that the thermally activated process in nanocrystalline (nc) metal/alloys is different from the conventional forest dislocation cutting mechanism. The stacking fault energy (SFE) of Cu-Zn alloys decreased with the adding of Zn, and deformation twins are anticipated to introduce into the nc Cu-Zn alloys during process of ball milling. Dislocations could accumulate along the TBs and carry the plastic strain, so the ductility of nc Cu-Zn alloys could be improved.

You might also be interested in these eBooks
Ductility of Bulk Nanostructured Materials View Preview

Info:

Periodical:

Materials Science Forum (Volumes 633-634)

Pages:

373-382

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.633-634.373

Citation:

Cite this paper

Online since:

November 2009

Authors:

J.M. Tao, Xin Kun Zhu, P.Z. Wong, Ron O. Scattergood, Carl C. Koch

Keywords:

Copper (Cu), Mechanical Property, Nanocrystalline Metals, Shear Punch Test, Strain Rate

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2010 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] X. Zhang, H. Wang, J. Narayan and C.C. Koch: Acta Mater. Vol. 49 (2001), p.1319.

Google Scholar

[2] X. Zhang, H. Wang, R.O. Scattergood, J. Narayan, X. Zhang, H. Wang, M. Kassem, J. Narayan and C.C. Koch: Scripta Materialia Vol. 46 (2002), p.661.

DOI: 10.1016/s1359-6462(02)00048-9

Google Scholar

[3] X.K. Zhu, X. Zhang, H. Wang, A.V. Sergueeva, A.K. Mukherjeec, R.O. Scattergood, J. Narayan and C.C. Koch: Scripta Materialia Vol. 49 (2003), p.429.

DOI: 10.1016/s1359-6462(03)00297-5

Google Scholar

[4] K.M. Youssef, R.O. Scattergood, K.L. Murty, J.A. Horton and C.C. Koch: Appl. Phys. Lett. Vol. 87(2005), 091904.

DOI: 10.1063/1.2034122

Google Scholar

[5] S. Cheng, E. Ma, Y.M. Wang, L.J. Kecskes, K.M. Youssef, C.C. Koch, U.P. Trociewitz and K. Han: Acta Mater. Vol. 53 (2005), p.1521.

DOI: 10.1016/j.actamat.2004.12.005

Google Scholar

[6] H. Conrad: Mater. Sci. Eng. A Vol. 341 (2003), p.216.

Google Scholar

[7] Y.M. Wang and E. Ma: Acta Mater. Vol. 52 (2004), p.1699.

Google Scholar

[8] E. Q. Hall: Proc. Soc. London Vol. B64 (1951), p.747.

Google Scholar

[9] N. J. Petch: J. Iron Steel Inst. Vol. 174 (1953), p.25.

Google Scholar

[10] K.S. Kumar, H. Van Swygenhoven and S. Suresh: Acta Mater. Vol. 51 (2003), p.5743.

Google Scholar

[11] H. Van Swygenhoven and A. Caro: Appl. Phys. Lett. Vol. 71(1997), p.1652.

Google Scholar

[12] M.A. Meyers, A. Mishra and D.J. Benson: Prog. Mater. Sci. Vol. 51 (2006), p.427.

Google Scholar

[13] R.K. Guduru, K.A. Darling, R. Kishore, R.O. Scattergood, C.C. Koch and K.L. Murty: Mater. Sci. Eng. A. Vol. 395 (2005), p.307.

Google Scholar

[14] R.K. Guduru, K.A. Darling, R.O. Scattergood, C.C. Koch and K.L. Murty: J. Mater. Sci. Vol. 42 (2007), p.5581.

Google Scholar

[15] C.C. Koch, D.G. Morris, K. Lu: Inoue A. MRS Bull Vol. 24 (1999), p.54.

Google Scholar

[16] J.W. Christian, S. Mahajan: Prog. Mater. Sci. Vol. 39 (1995), p.157.

Google Scholar

[17] L . Lu, R. Schwaiger, Z.W. Shan, M. Dao, K. Lu, S. Suresh: Acta Mater. Vol. 53 (2005), pp.2169-79.

Google Scholar

[18] L. Lu, Y.F. Shen, X.H. Chen, L.H. Qian, K. Luf: Science Vol. 304 (2004), p.422.

Google Scholar

[19] R.J. Asaro, S. Suresh: Acta Mater. Vol. 53 (2005), p.3369.

Google Scholar

[20] Y.F. Shen, L. Lu, M. Dao, S. Suresh: Scripta Mater. Vol. 55 (2006), p.319.

Google Scholar

[21] Y.H. Zhao, Z. Horita , T.G. Langdon , Y.T. Zhu: Mater. Sci. Eng. A. Vol. 474 (2008), p.342.

Google Scholar

[22] Y.H. Zhao, X.Z. Liao, Y.T. Zhu, Z. Horita, T.G. Langdon: Mater. Sci. Eng. A. Vol. 410 (2005) , p.188.

Google Scholar

[23] D. Caillard, J.L. Martin, Thermally Activated Mech. in Crystal Plasticity, Pergamon Materials Series: 8, Elsevier Ltd, 1 st edition, (2003).

DOI: 10.1016/s1470-1804(03)80029-9

Google Scholar

[24] G. L. Hankin, M. B. Toloczko, M. L. Hamilton, F. A. Garner, R. G. Faulkner: J. Nucl. Mater. Vol. 1657 (1998), p.258.

Google Scholar

[25] R. Nomoto, T. E. Carrick, J. F. McCabe: Dental Mater. Vol. 17 (2001), p.415.

Google Scholar

[26] F. A. Mohamed, H. Li, Mater. Sci. Eng. A. Vol. 298 (2001), p.1.

Google Scholar

[27] Q. Wei, S. Cheng, K. T. Ramesh, E. Ma, Mater. Sci. Eng. A. Vol. 381 (2004), p.71.

Google Scholar

[28] Y. M. Wang, A. V. Hamza, E. Ma: Appl. Phys. Lett. Vol. 86 (2005), 241917.

Google Scholar

[29] Y.T. Zhu, J.Y. Huang, J. Gubicza, T. Ungar, Y.M. Wang, E. Ma: J Mater Res. Vol. 18 (2003), p. (1908).

Google Scholar

[30] Y. M. Wang, A. V. Hamza, E. Ma: Acta Mater. Vol. 54 (2006), p.2715.

Google Scholar

[31] R. Schwaiger, B. Moser, M. Dao, M.F. Chisholm, J.A. Horton, P. Wang: Acta Mater. Vol. 51 (2003), p.5159.

Google Scholar

[32] Z.W. Shan, E.A. Stach, J.M.K. Wiezorek, J.A. Knapp, D.M. Follstaedt, S.X. Mao: Science Vol. 305 (2004), p.654.

Google Scholar

[33] E. Ma: Science Vol. 305 (2004), p.623.

Google Scholar

[34] L. , R. Schwaiger, Z.W. Shan, M. Dao, K. Lu, S. Suresh: Acta Mater. Vol. 53 (2005), p.2169.

Google Scholar

[35] Y.M. Wang, E. Ma: Appl Phys Lett. Vol. 83 (2003), p.3165.

Google Scholar

[36] J. Chen, L. Lu, K. Lu: Scripta Mater. Vol. 54 (2006), p. (1913).

Google Scholar

[37] M. Dao, L. Lu, Y. F. Shen, S. Suresh: Acta Mater. Vol. 54 (2006), p.5421.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
